Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Alternate Method
13) Remove the Shipping Frame from the Carriage Assembly.
14) Lower the Forks with the Shipping Frame and back the Forklift out of the bay. It is the
responsibility of the site to dispose or recycle the Shipping Frame.
15) Slide the Carriage all the way down to the End Stops on the Exit Rails, as shown above.
Shipping Frame
Assembly

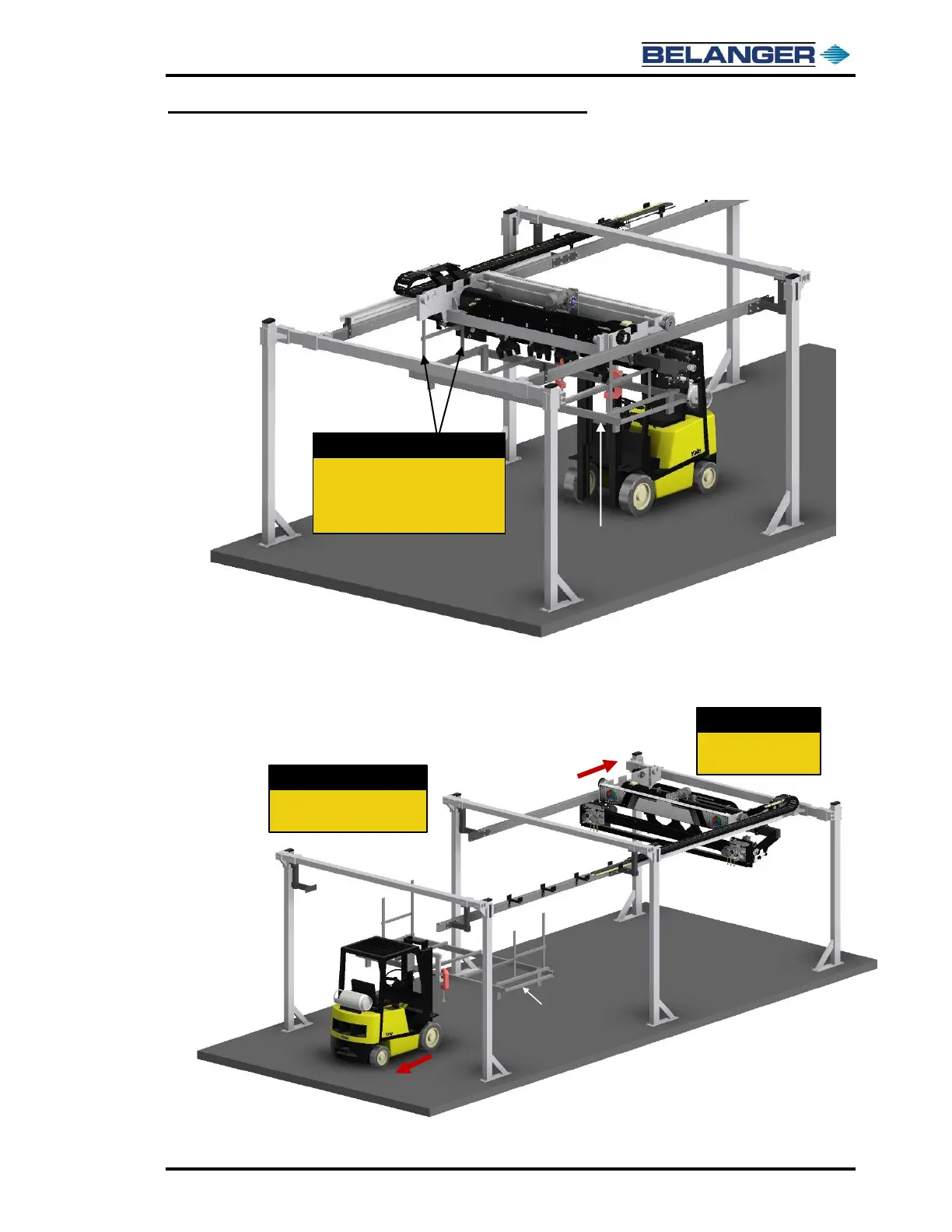

Detach the Shipping Frame from
the Carriage by removing the
fasteners at the top of these upright
tubes on both sides of the Carriage.
Step 13:
Shipping Frame
Assembly
Slide Carriage down
to the Exit End Stops.
Step 15:
Remove the Shipping Frame
and Forklift from the bay.
Step 14:
Entrance
Exit
