Cube
®
Installation & Startup
6-36 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL963
Chapter 6 Frame and Carriage Assembly
Carriage Placement on Frame Assembly: Alternate Method

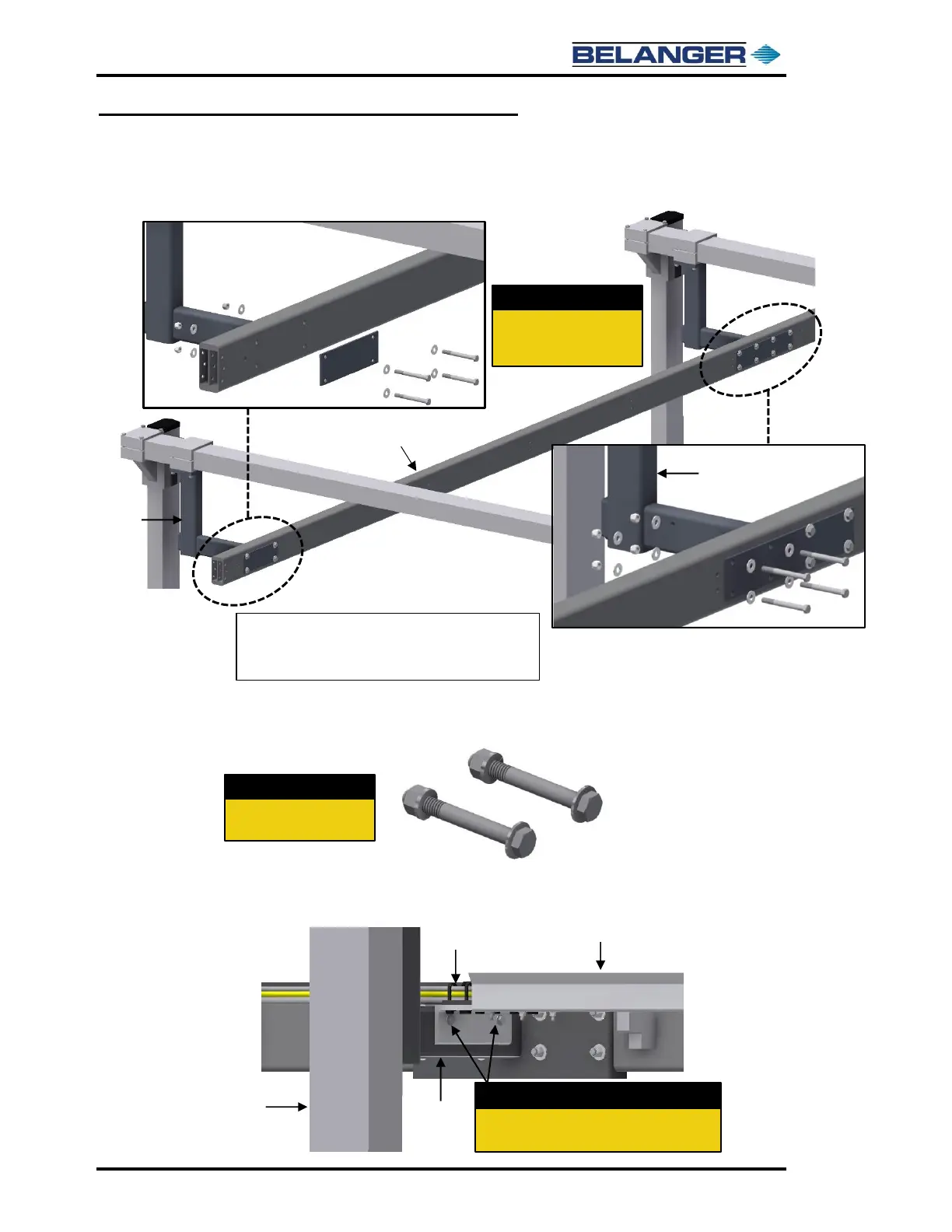

10) Retrieve the Entrance Rail and fasteners then reattach the Entrance Rail to the L-Brackets
as shown below.
11) Locate the 3/8” Bolts and Fasteners that came with CAT Track Support Assembly. Apply
anti-seize to the bolt threads.
12) Secure the Angle Mount Bracket at the end of the Cable Carrier to the Middle L-Bracket,
refer to the image below.
Note: All bolt heads on L-Brackets are to
be on the inside of Rails and nuts
are on outside of Rails.
Entrance Rail
Entrance
L-Bracket
Middle
L-Bracket
Middle Leg
Cable Carrier
Middle
L-Bracket
CAT Track Trough
Secure the Angle Mount Bracket at the end of
the Cable Carrier to the Middle L-Bracket.
Step 12:
Retrieve Entrance Rail and
fasteners then reattach the
Rail.
Step 10:
Locate 3/8” Fasteners and
apply anti-seize to threads.
Step 11:
