2-14 Installation
Adjusting the Line Voltage Input Range
The PowerWave is equipped with a four-voltage range power input
module. This power input module, located on the right side of the
instrument, can be adjusted for 100 VAC, 120 VAC, 230 VAC and 240
VAC voltage inputs. The setting can be determined visually by observing
which indicator hole on the power input module has a peg within it. The
ON/OFF switch and fuses are also housed within the power input
module. The following instructions can be used to change the input

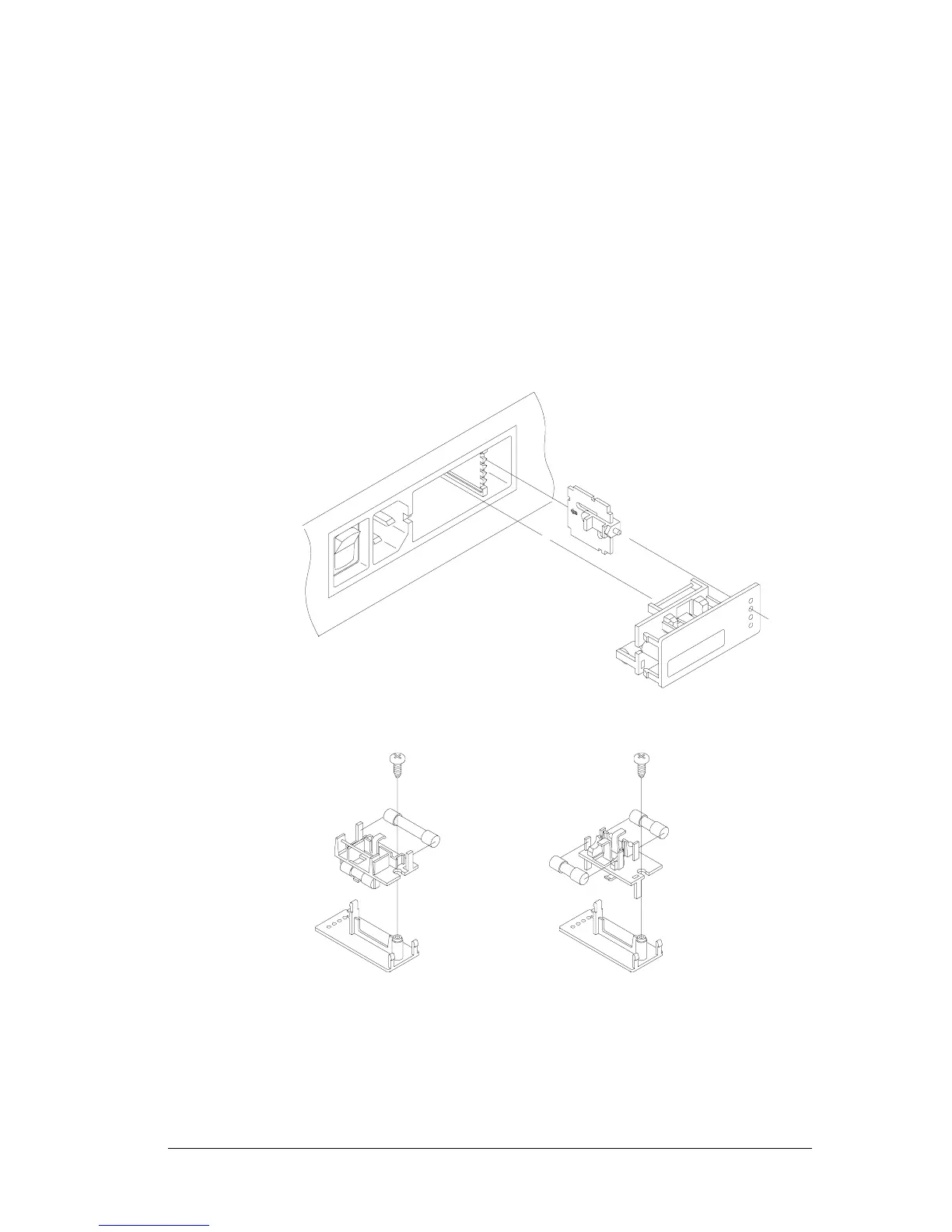

voltage range. Figure 2-14 illustrates the power input module.
Figure 2-14: Selecting voltage input
• Unplug the reader and remove the power cord.
• Use a small flat-blade screw driver to pop the fuse holder out of
the power input module.
