IQC 5000B Operation Manual
7

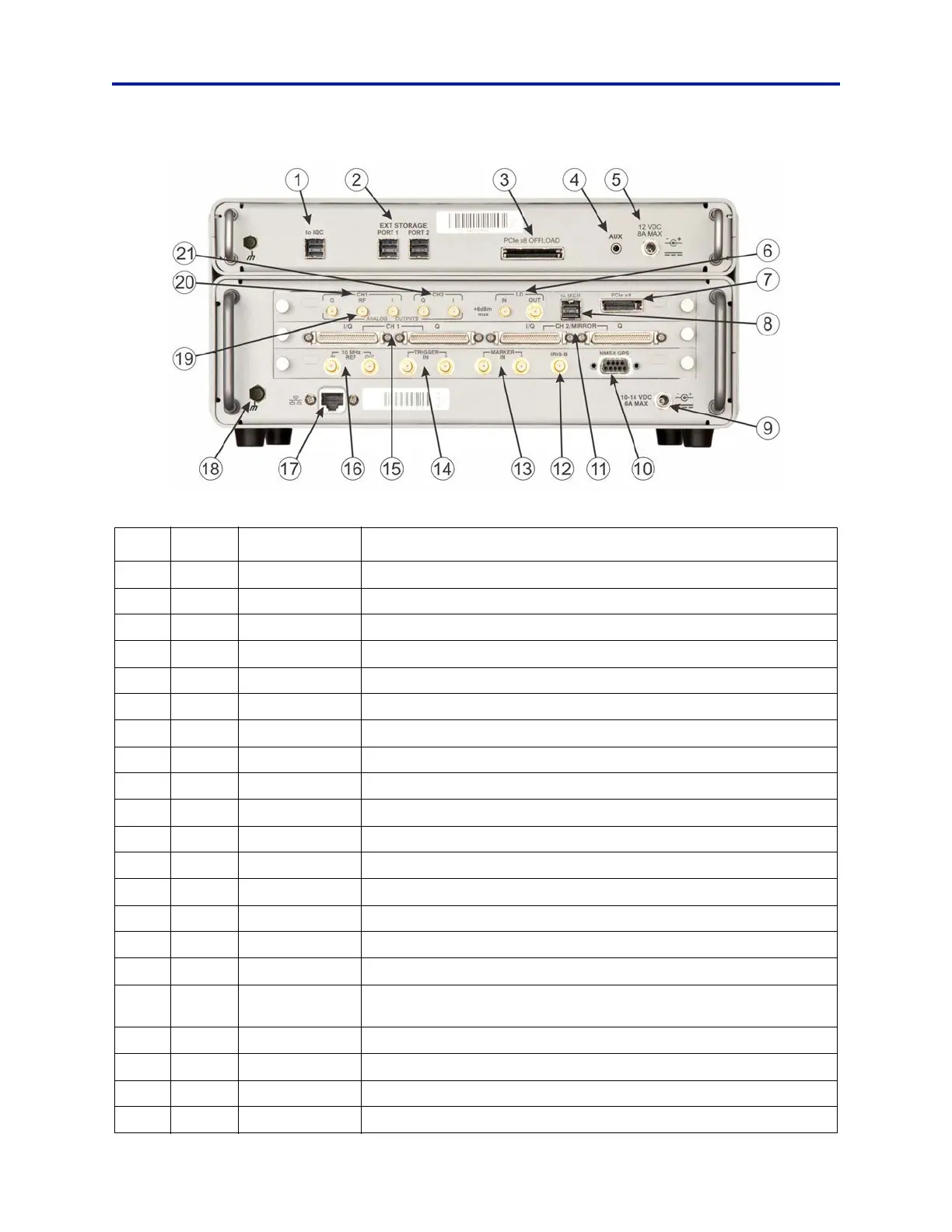

Figure 3 IQC5000B/IQC-MEM Rear Panel
Table 6 -
Item Option Connector Description
1 Ext. MiniSAS HD Cable connection for IQC5000B.
2 Ext. MiniSAS HD Cable connection for external storage unit
3 Ext. MiniSAS HD Cable connection for external storage unit
4 Aux Jack
5 Power Jack DC input power (12 VDC)
6 SMA (Jack) Local Oscillator In/
Out
7 4-Lane PCIe PCI Express interface - not used on IQC5000B
8 Ext. MiniSAS HD Cable connection for IQC-MEM unit. Record
directly to external storage
9 Power Jack DC input power (10-14 VDC)
10 DB-9 (Socket) NMEA GPS (Input)
11 042,162 50 pin LVDS Channel 2 I/Q digital input signals
12 SMA (Jack) IRIG-B (Input)
13 SMA (Jack) Marker 1, 2 input (1 - 3.3 VDC, 5 V Max)
14 SMA (Jack) Trigger 1, 2 input (1 - 3.3 VDC, 5
V Max)
15 50
pin LVDS Channel 1 I/Q digital input signals
16 SMA (Jack) 10 MHz Reference In/Out
17 RJ-45
Recept
acle
10/100/1000 MB Ethernet interface
18 Threaded Nut Ground lug
19 101 SMA (Jack) Fixed frequency RF output
20 101 SMA (Jack) Channel 1 I/Q Analog output signals
21 102 SMA (Jack) Channel 2 I/Q Analog output signals
QC5000B Rear Panel Controls and Indicators
