IQC 5000B Operation Manual
21
Connection Points
This section describes the input and output connectors on the Tektronix RSA6000 spectrum analyzer. For more
information on the spectrum analyzer, reference the Tektronix RSA Operating Manual.

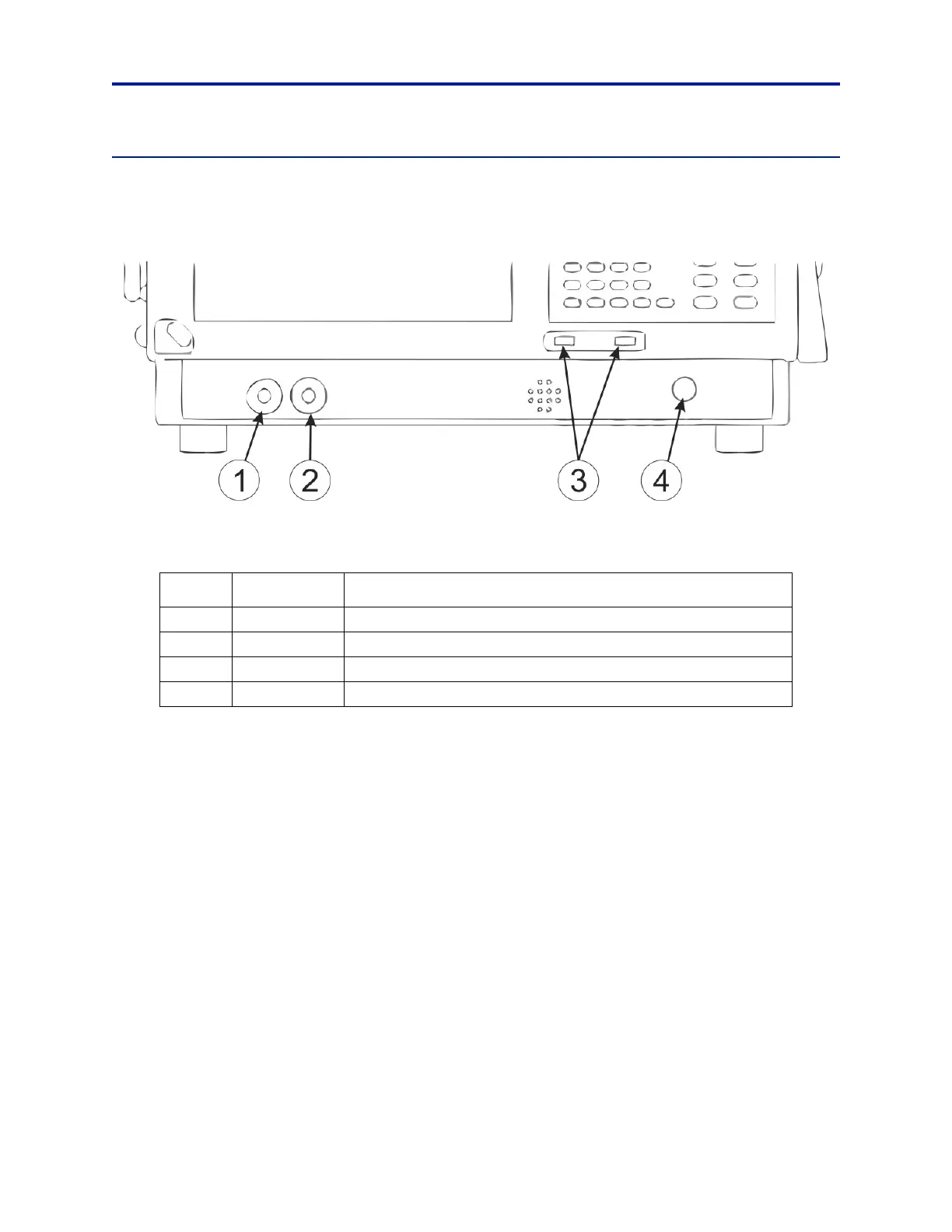

Figure 15 Tektronix RSA Front Panel
The following is a description of the front-panel controls on the RSA.
Table 8 -
Item Label Description
1 Trig Out Trigger output connector. 50 Ohm, BNC, High > 2.0 V, Low < 0.4 V
2 Trig In External Trigger input connector, –2.5 V to +2.5 V range
3 USB Ports USB 2.0 connector
4 RF Input RF input connector 50 Ohm, +30 dBm input maximum
Tektronix RSA Front Panel Connectors
