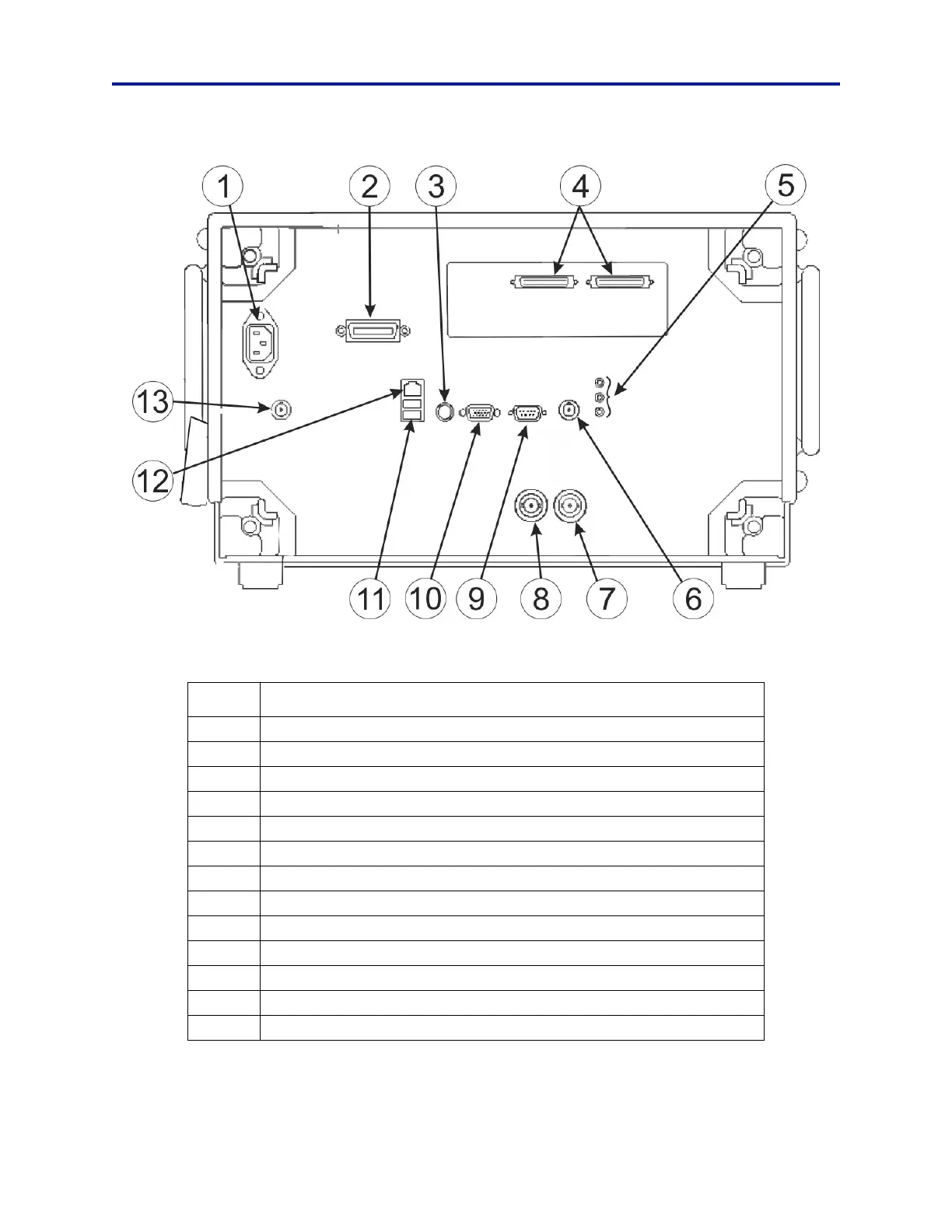

Figure 16 Tektronix RSA Rear Panel
The following is a description of the rear-panel connection points on the RSA.
Table 9 -
Item Description
1 AC Input, main power connector
2 GPIB
3 PS2 Keyboard input
4 Real Time IQ Out (Option 05)
5 Microphone in; Headphone, audio output; and Line In connectors
6 External Trigger 2 Input
7 Ref In, reference frequency input
8 Ref Out, reference frequency output
9 COM 2, serial port for conne
cting peripherals
10 VGA extern
al monitor output (resolution not limited to VGA)
11 USB 2.0 ports for mouse and other peripherals (printers, external
hard disks)
12 LAN, Ethernet network connector
13 +28 VDC output, switched
Tektronix RSA Rear Panel Connectors
