BIRD IQC5000B - IQC5000 Controls and Indicators

6
IQC5000 Controls and Indicators

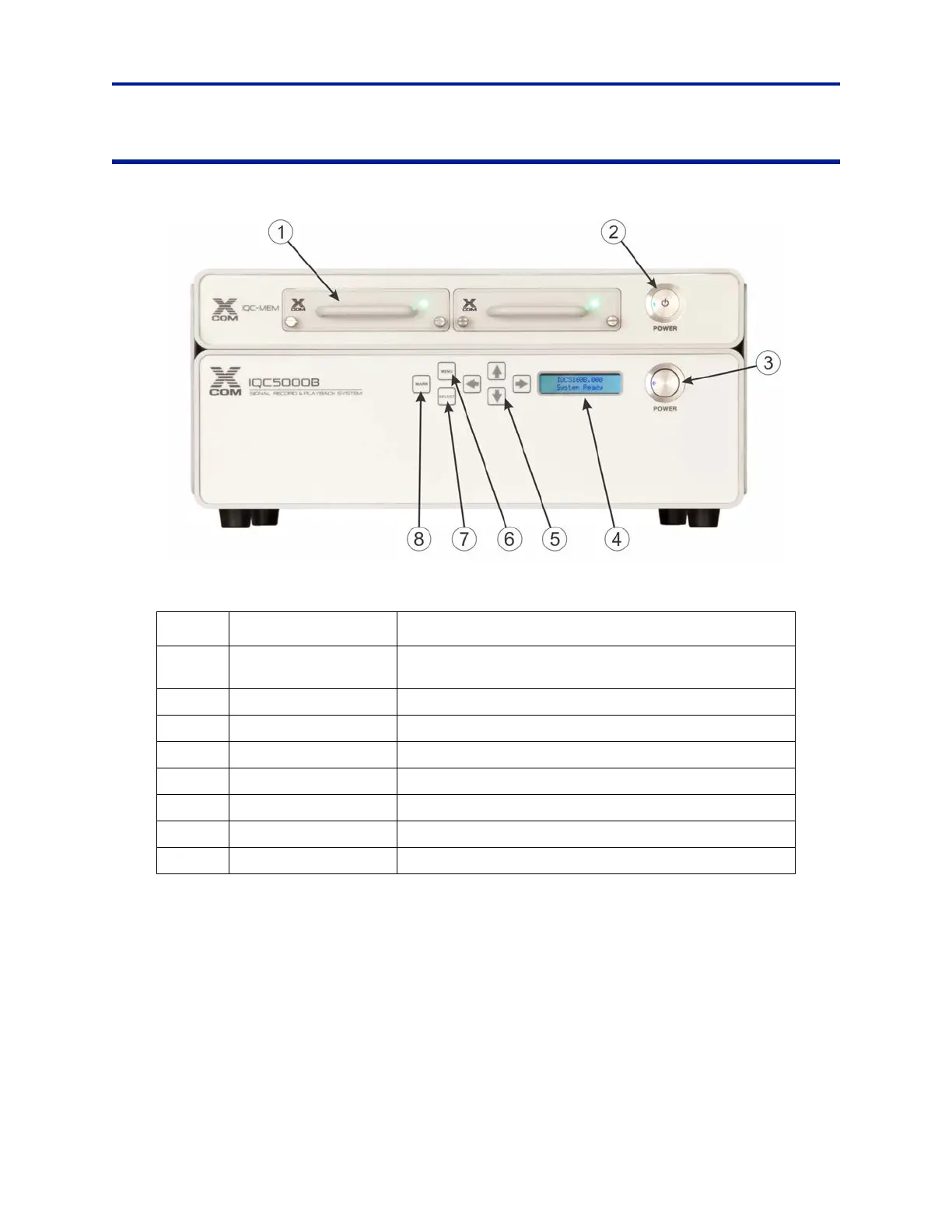

Figure 2 IQC5000B/IQC-MEM Front Panel
Table 5 -
Item Name Description
1 IQC5000B-ME2 Internal RAID0 SSD disk storage: 2TB. Supports single
channel operation up to 160 MHz bandwidth.
2 Power Pushbutton Used to apply and remove power to the IQC-MEM unit.
3 Power Pushbutton Used to apply and remove power to the IQC5000B.
4 Front Panel Display Displays current mode and menu.
5 Directional Arrows Used for navigating the front panel menus.
6 MENU Enables the menu on the front-p
an
el display.
7 SELECT Selects available menu option.
8 MARK Inserts a marker while recording.
IQC5000B Front Panel Controls and Indicators
