IQC 5000B Operation Manual
25
Anritsu Field Master Pro MS2090A
Refer to the Anritsu Field Master Pro MS2090A User Guide for detailed instructions on setup and configuration of
the MS2090A.
The control software for the IQC5000B, IQC Control, controls the IQ s
treaming operation via the Ethernet
connection to the MS2090A.
The MS2090A Data Out and USB ports connect to the MA25424A Data In an
d USB ports (note that the USB port is
used for power and this could come from any external USB 3.0 power supply capable of supplying ~4 W).
The MA25424A splits the I and Q signal
components to the two respective I and Q output ports (IEEE 1284-C) and
streams the data to the IQC5000B I and Q input ports.

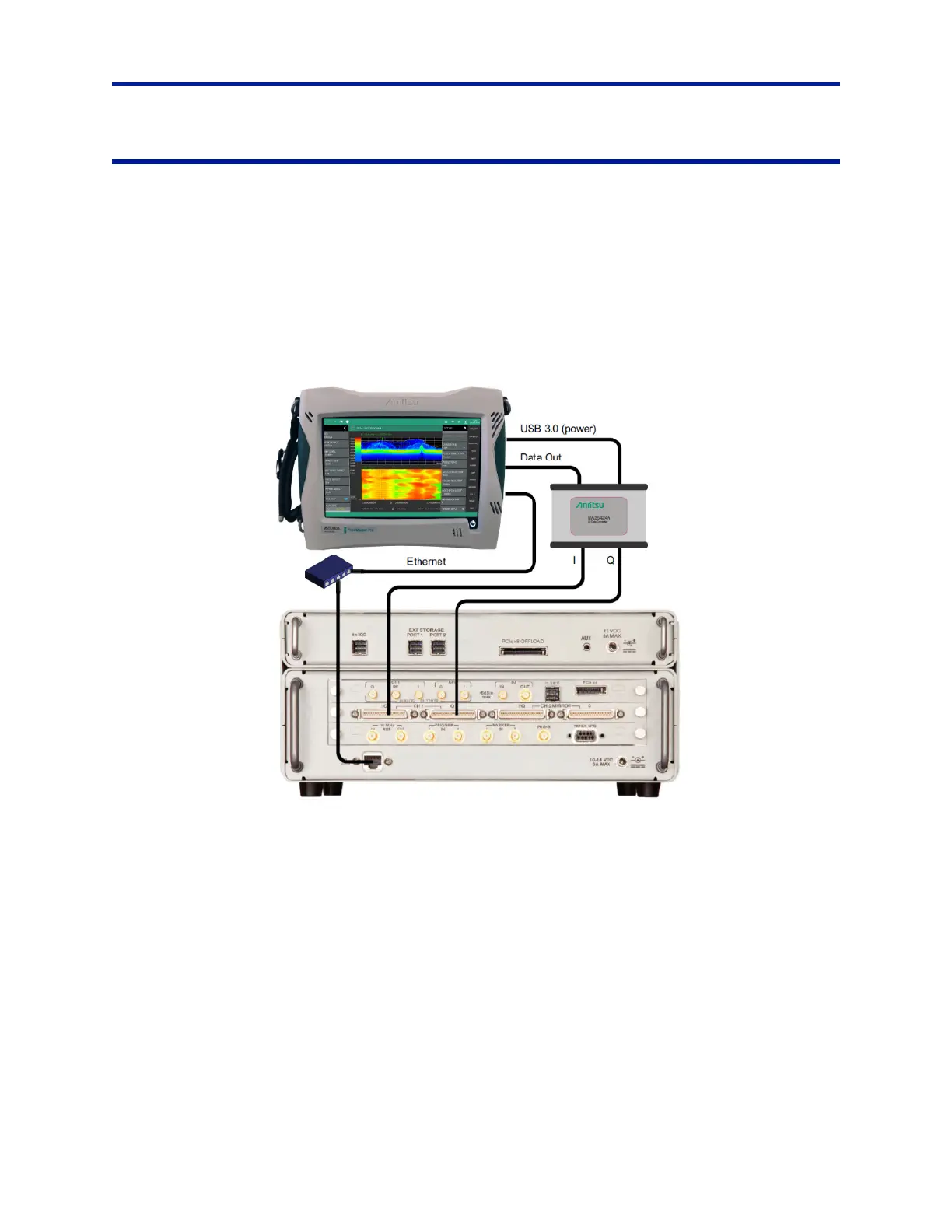

Figure 21
Anritsu Connection Diagram
