NMEA Data
The IQC5000 supports the following NM
EA-formatted data input:
Table 21 - IQC5000 NMEA Data Input
Connectors DB-9 (with optional 1 pulse per second signal connected to Marker 1 SMA input)
See Figure 22.
NMEA
Se
nt
ences
GPGGA
GPVTG
GPZDA
Protocol
St
andard
RS-232

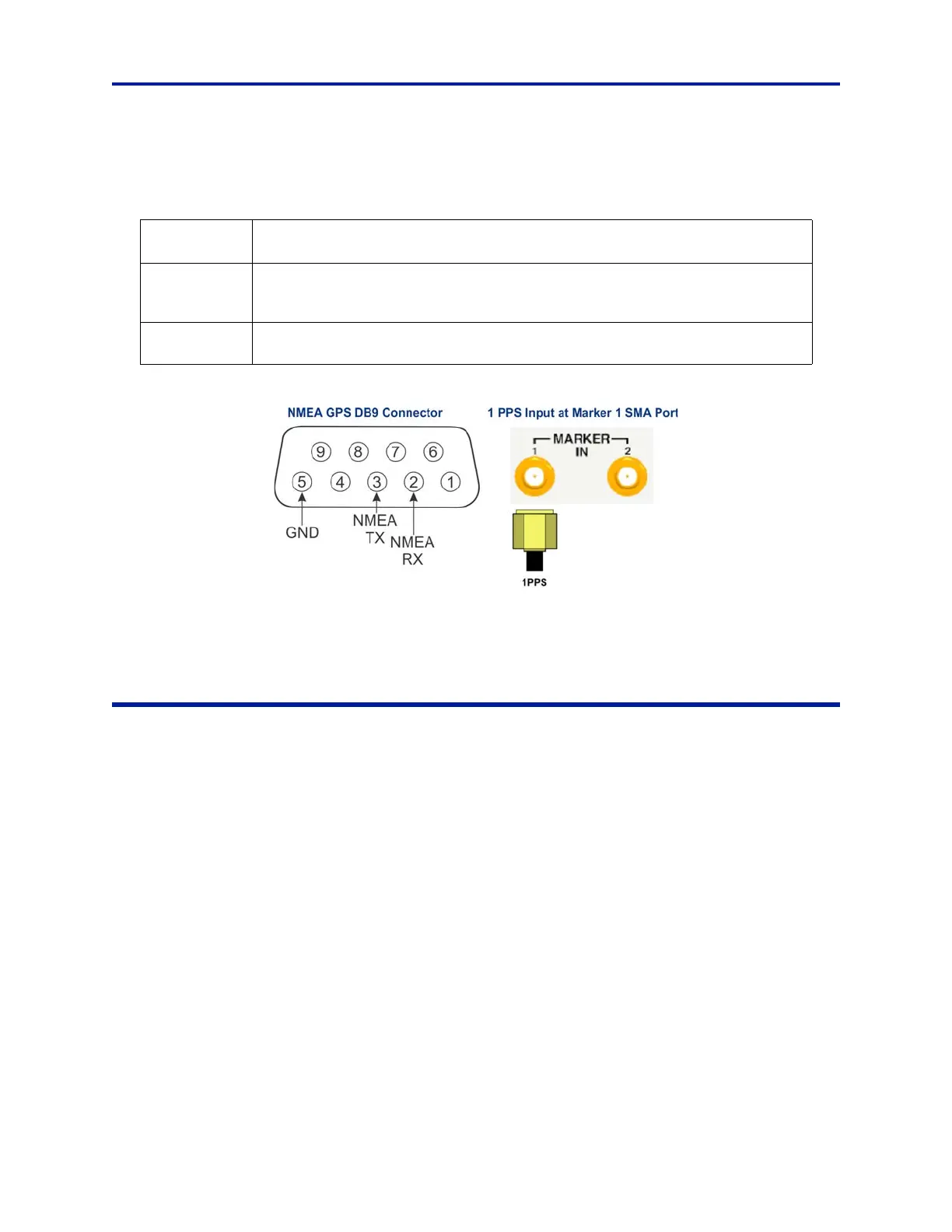

Figure 22 NMEA Data Input
NMEA custom cables are available from Bird. The 1PPS signal may
be optionally connected to the Marker 1 SMA
port to insert a marker every second.
The baud rate for the NMEA GRPS input (DB9) is selecta
ble. See"NMEA GPS Port Baud Rate Selection" on page 48.
File Transfer
There are 2 supported methods of transferring data between the IQC5000 storage and the Computer Workstation
storage:
PCIe – The fastest way to offload data. Requires the use of a PCIe cable. Offload speeds up to 450MB/s are
possible if offload destination supports writing at that speed. Connect the PCIe cable between the IQC-
MEM module and the Computer Workstation. See "Setup" on page 8 for more information.
Ethernet – The slowest way to offload data. Requires no additional cables.
