BASE Module Part B VC-6000
TM
Compact monitor
© VC-6000
TM
Compact monitor Nov, 2014 C100584.002 Module Vers. 08 - 7 -
1.3 Connection plugs on the Base Module

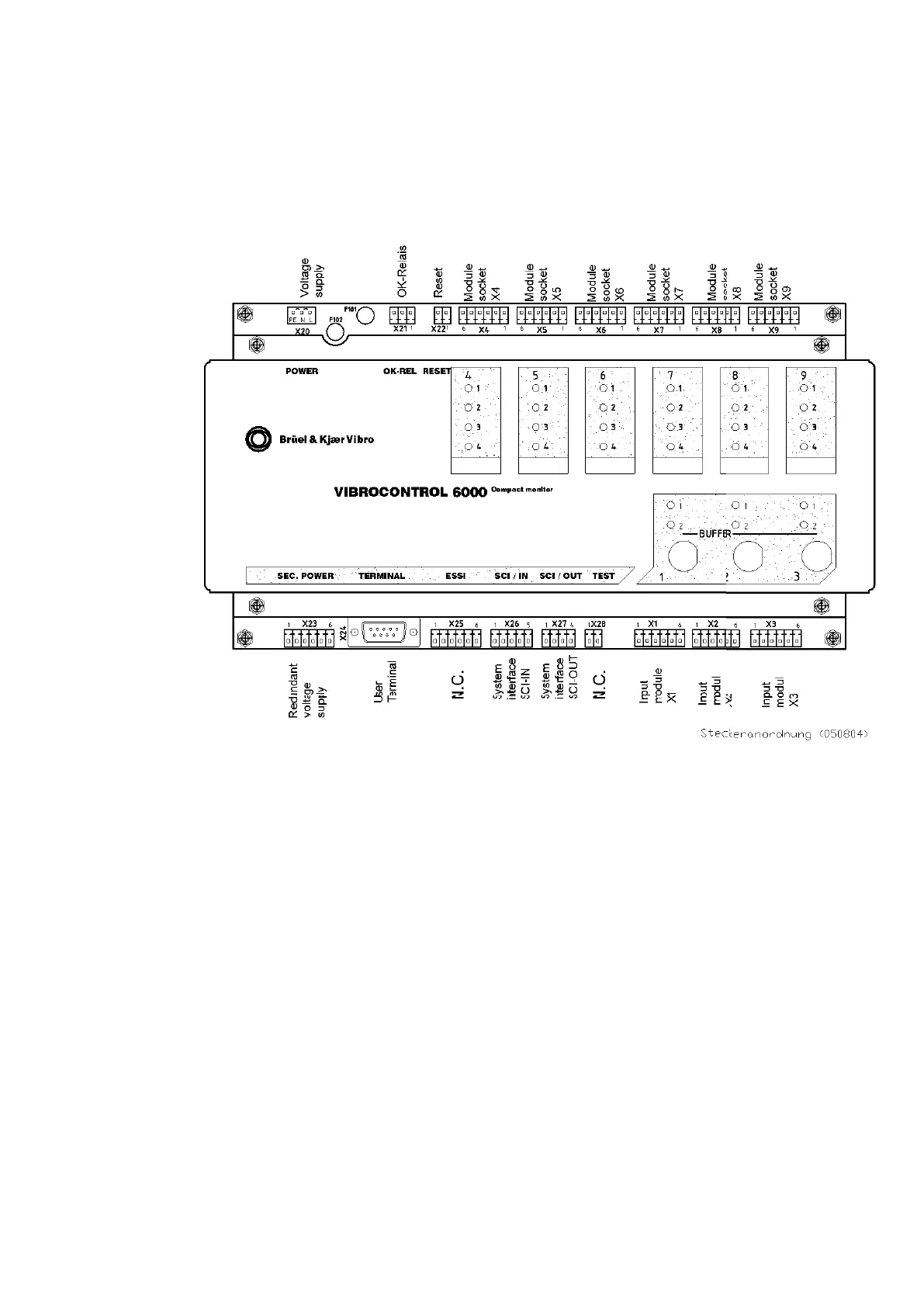

1.3.1 Overview
∗ Please note the corresponding plug layout for DC power on the DC Base board!
See the configuration sheet of the
VIBROCONTROL 6000 Compact monitor.
