Compact monitor Part B 3-channel input module for binary status signals
- 36 - C100584.002 Module Vers. 08 © VC-6000
TM
Compact monitor Nov. 2014
7.3 Wiring of binary inputs

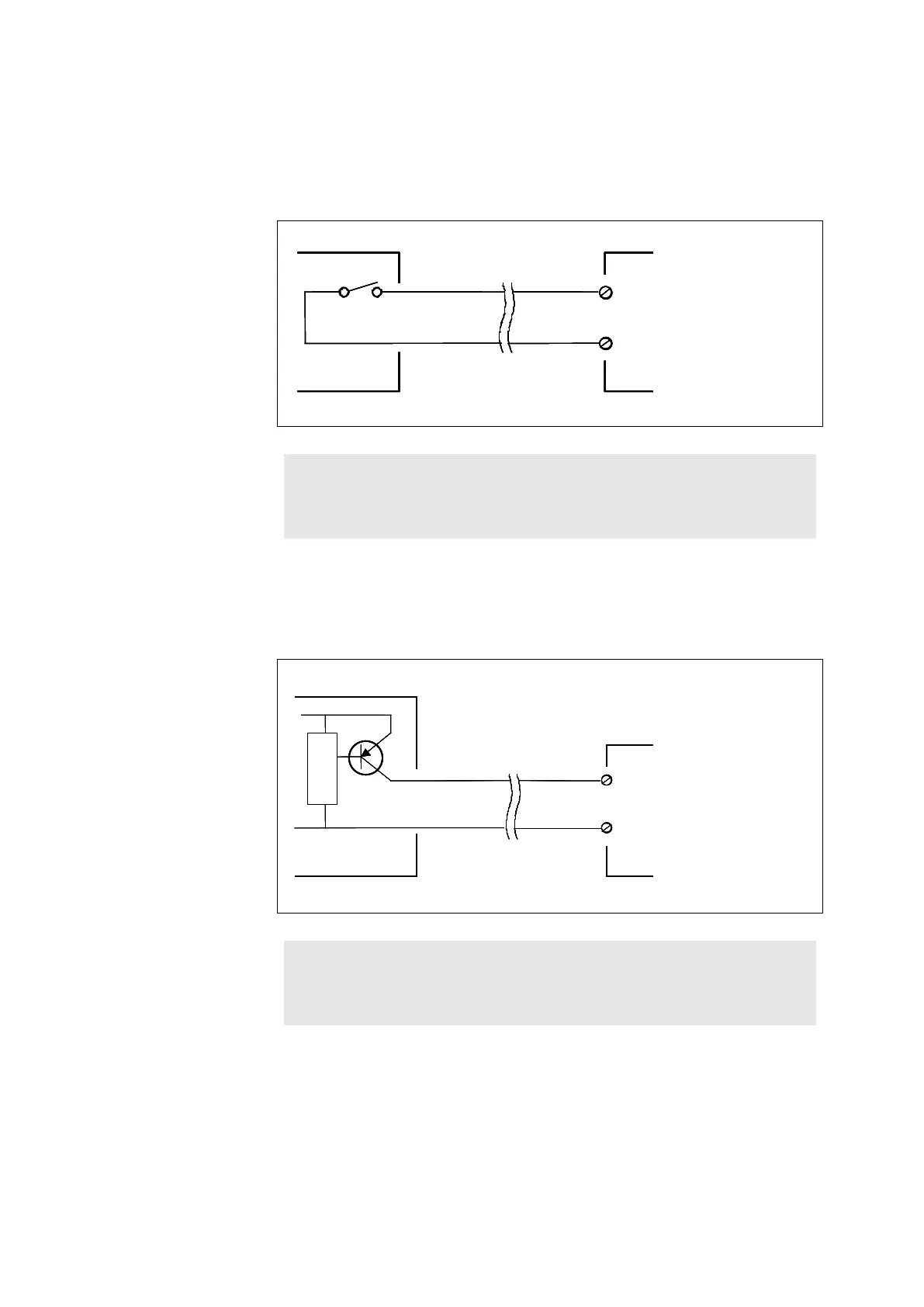

7.3.1 External potential-free contacts (non-active signals)
Note:
The setup parameter <Active Signal> MUST be given the setting „NO“.
Thereby the auxiliary voltage source for the BINARY-IN module is switched
on and supplies the necessary auxiliary power for the control circuit.
7.3.2 Active signals from external current sources (PNP open-
collector)
Note:
The setup parameter <Active Signal> MUST be given the setting „YES“.
Thereby the auxiliary voltage to the BINARY-IN module is switched off as
active signals do not require auxiliary power.
Binary input
HI
LO
Machine control
VIBROCONTROL 6000
Compact monitor
Binäreingang (050805)
Binary input
HI
LO
Machine control
VIBROCONTROL 6000
Compact monitor
Binäreingang (050805)
HI
LO
+ 24 V
0 V
Binary input
HI
LO
Machine control
+ 24 V
0 V
VIBROCONTROL 6000
Compact monitor
Binäreingang PNP (050805)
HI
LO
+ 24 V
0 V
Binary input
HI
LO
Machine control
+ 24 V
0 V
VIBROCONTROL 6000
Compact monitor
Binäreingang PNP (050805)


