Upgrading The Computer
Upgrading the System Memory (RAM) 6 - 19
6
3. Gently pull the two release latches on the sides of the memory socket in the
direction indicated by the arrows ( &
) in Figure 6 - 17.
4. The RAM module will pop-up, and you can remove it.
5. Pull the latches to release the second module if necessary.
2
4
2
3
2
3

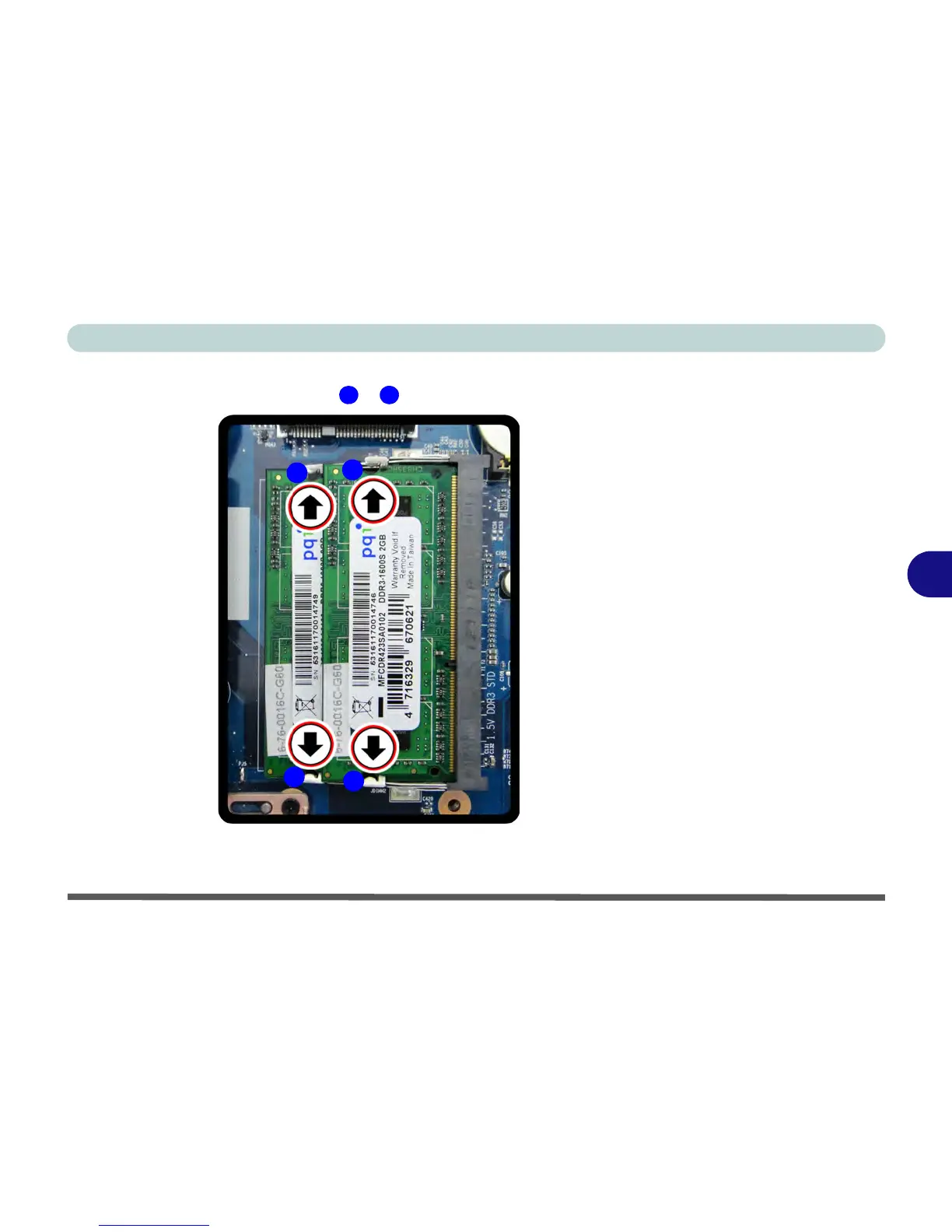

Figure 6 - 17
RAM Module
Release
