4.9.5 ENO 0000 B Fire Service Interface Module
The ENO 0000 B is used to connect fire service equipment:
– Transmission device to the fire brigade
– Key deposit
– Signal lamp (e.g. BEGA flush-mounting lamp or BL 200)
– FSE release element monitoring
– Four freely programmable changeover relays

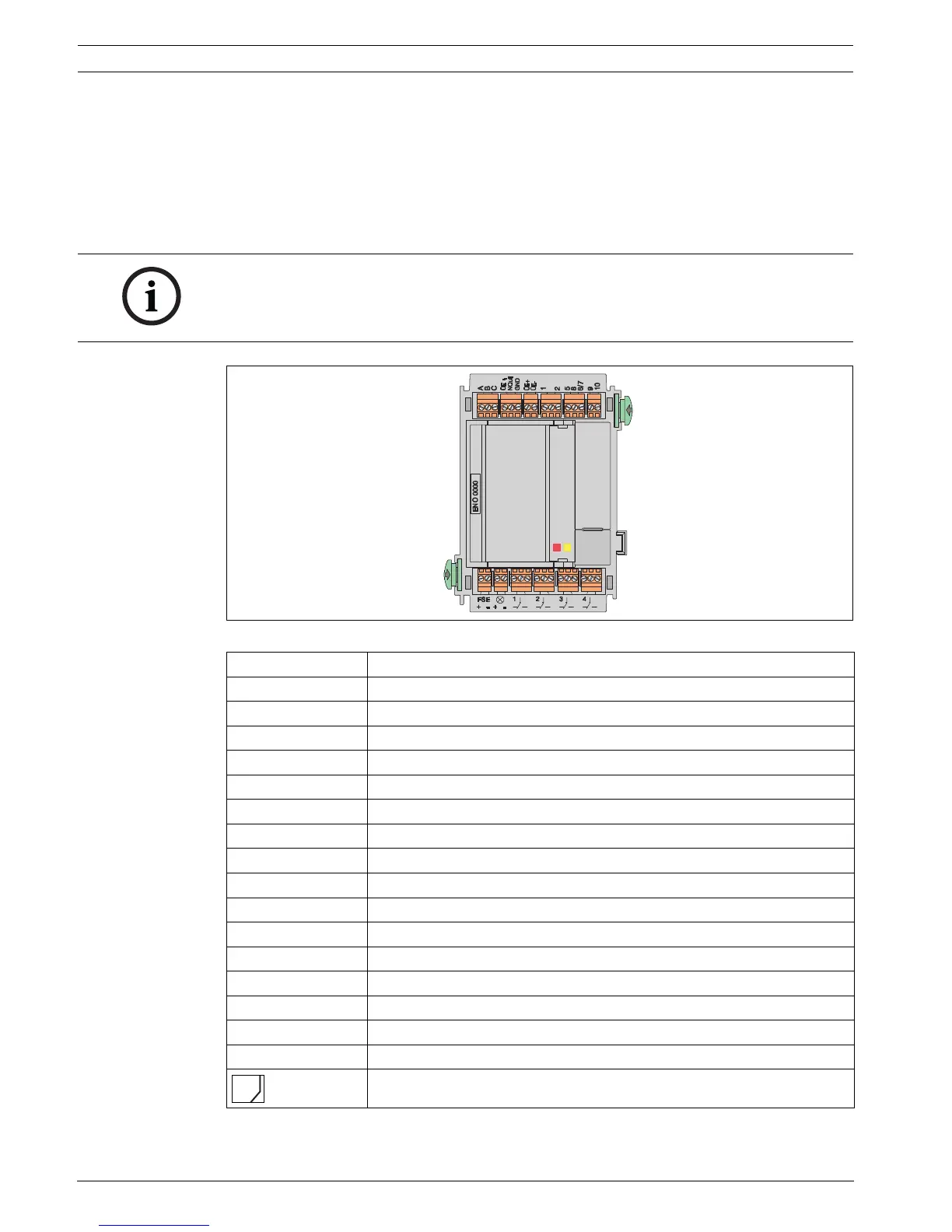

Figure 4.66 ENO 0000 B Fire Service Interface Module
Information on the redundant connection of the module can be found in
Section 3.10 Redundancy, page 47.
NOTICE!
The requirements of the local fire department must be taken into account during
programming.
The module is used almost exclusively in Germany.
Labeling Connection
AGround
B Transmission unit control
C Feedback contact
ÜE Automatic dialer and transmission unit fault
NQuit Acknowledge
GND Ground
ÜE+ | ÜE- Power supply of transmission unit
1 Monitoring key deposit
2Ground
5 Door release magnet, +12 V/24 V, approx. 10 W
8 Key deposit lock monitoring
6 | 7 Ground
9 Heating, +24 V, approx. 0.8 W
10 Ground
FSE+ | − FSE release element monitoring
⊗ + | − Signal lamp, e.g. BEGA lamp +24 V, approx. 10 W
Relay 1-4
x

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
