4.9.7 IOP 0008 A Input/Output Module
The IOP 0008 A Input/Output Module has 8 independent digital inputs and 8 open collector
outputs for individual displays or for flexible connection of various electrical devices.

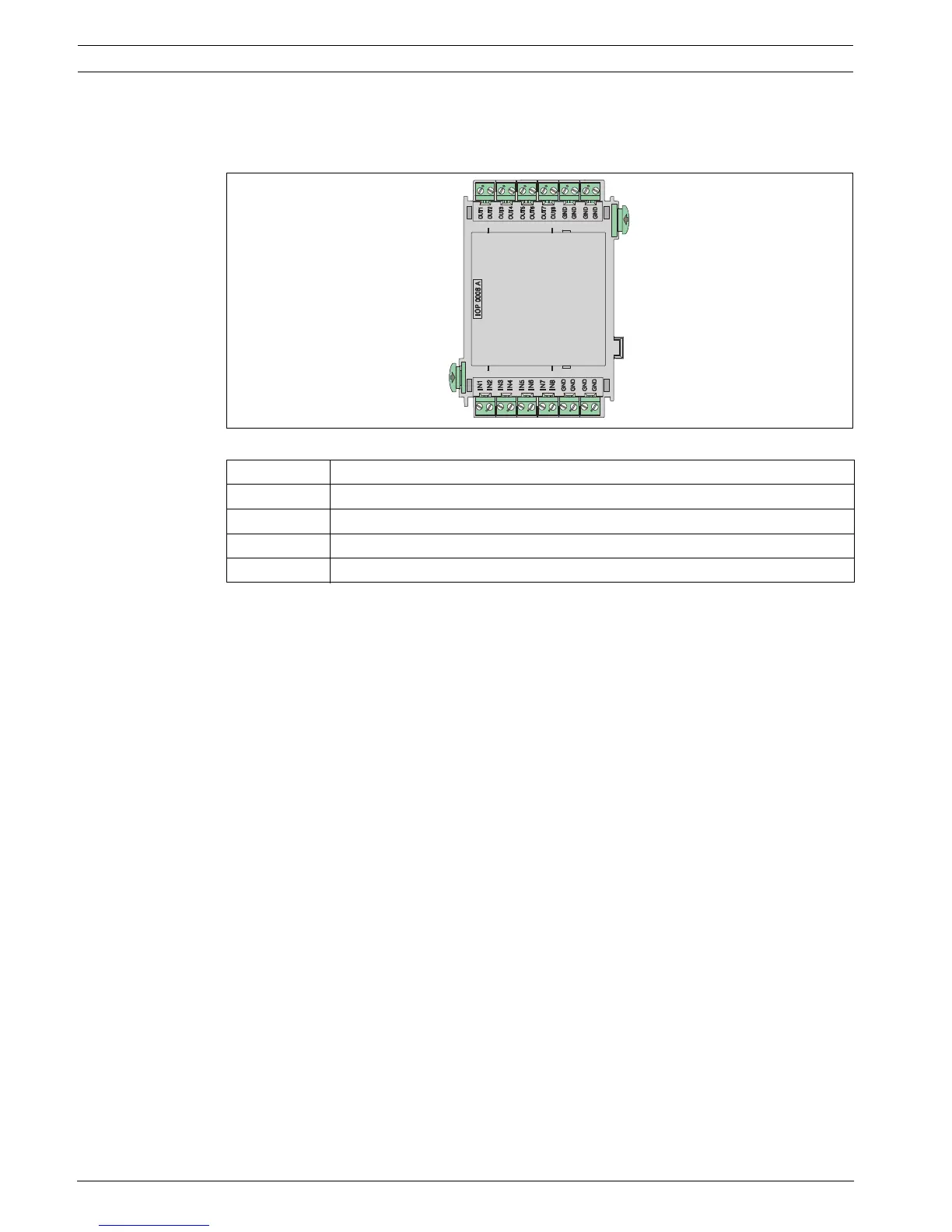

Figure 4.68 IOP 0008 A Input/Output Module
The technical data can be found in Section 7.5.6 IOP 0008 A Input/Output Module, page 161.
Labeling Connection
OUT1-OUT8 Outputs, max. voltage of 35 V DC at 1.5 A per output (nominal 0.7 A)
GND Ground
IN1-IN8 Inputs, max. voltage of 5 V DC at 0.1 mA per input
GND Ground

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
