Bosch FPA-5000 System Description

40 en | Planning Modular Fire Panel
F.01U.028.089 | 8.0 | 2011.07 System Description Bosch Sicherheitssysteme GmbH
3.8 Examples of Housing Equipment
CPH 0006 A, Fully Configured Panel, with Installation Sequence

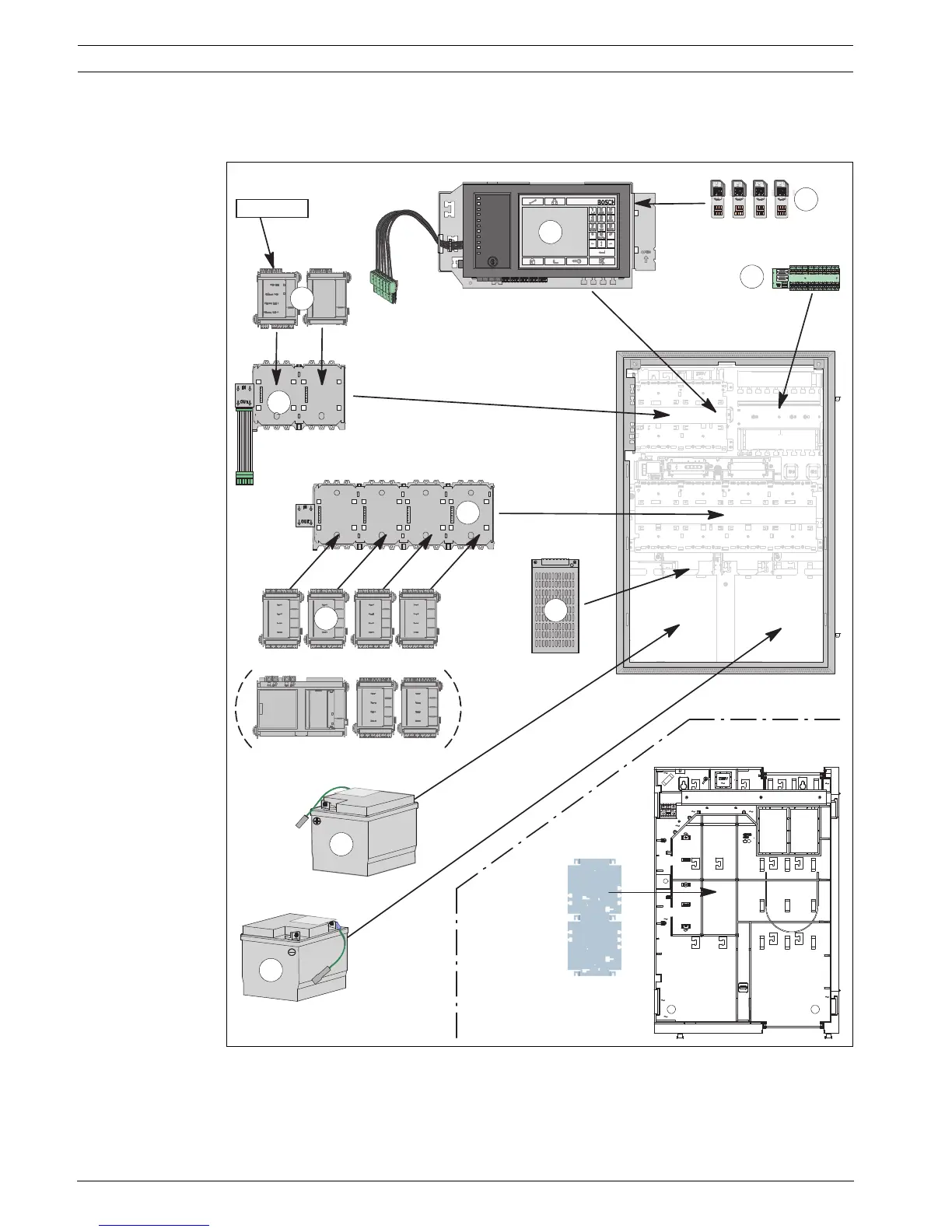

Figure 3.7 Example of configuration with CPH 0006 A frame installation housing for 6 modules
UPS 2416 A
PRD 0004 A
PRS 0002 A
MPC-xxxx-B
RLE 0000 A
ADC xxxxx A
CPH 0006 A
1
2
4
5
6
3
9
BCM-0000-B
12 V / 45 Ah
7
12 V / 45Ah
8
<= 4 Module
10
FBH 0000 A / FHS 0000 A
HMP0003A

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
