Modular Fire Panel Installation | en 79
Bosch Sicherheitssysteme GmbH System Description F.01U.028.089 | 8.0 | 2011.07
4.6 UPS 2416 A Universal Power Supply 24 V/6 A
The UPS 2416 A is a plug-and-play switching power supply that provides the power for the
FPA-5000 Fire Panel. It is inserted into a power supply bracket and is then ready to use
immediately.
The power supply unit is protected against pole reversal and overvoltage. A green LED on the
power supply unit itself indicates that it is functioning.
The temperature-dependent output voltage is monitored and regulated by the BCM Battery
Controller Module.
The output voltage is monitored and regulated by a temperature sensor. If there is a fault, the
FAULT output drops to 0 V.

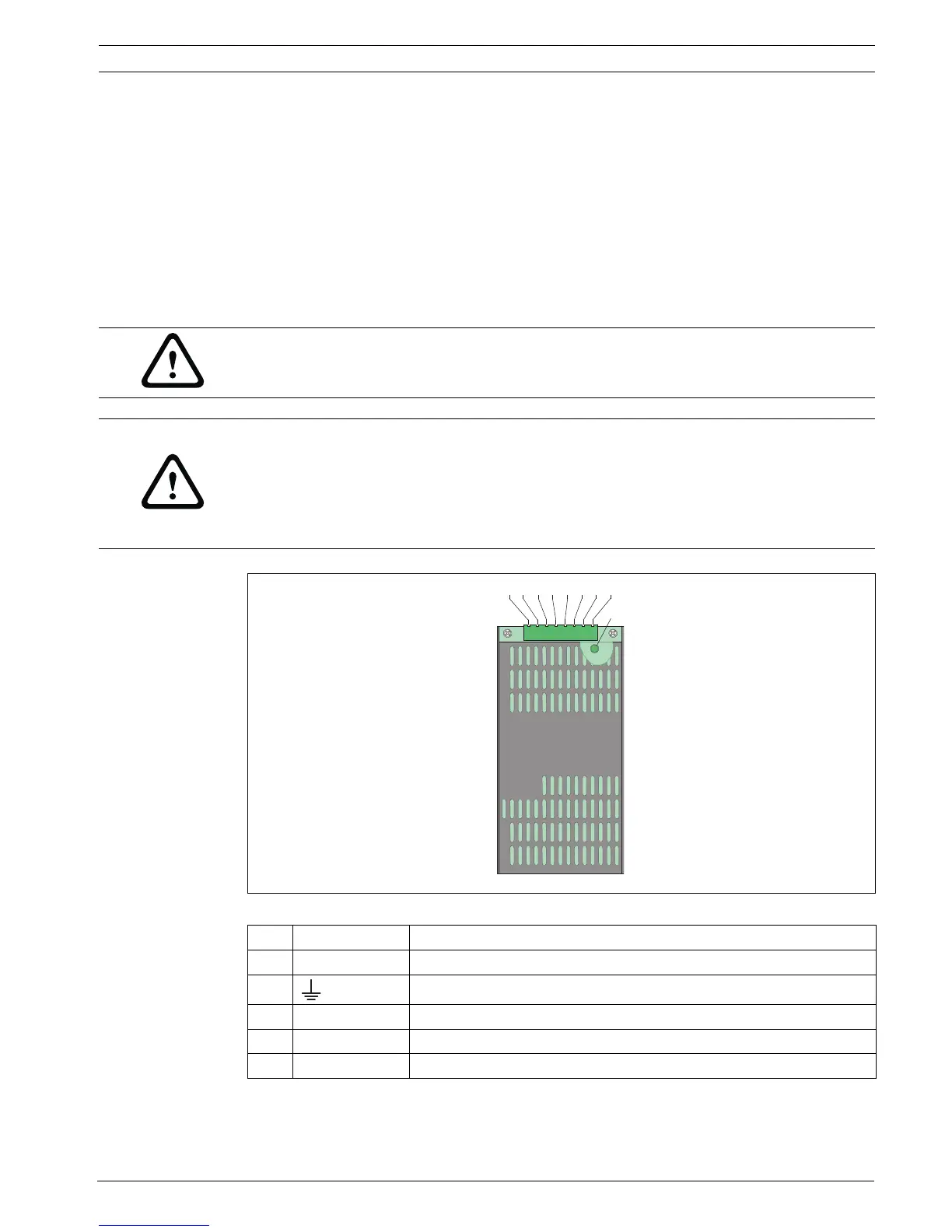

Figure 4.29 UPS 2416 A Universal Power Supply 24 V/6 A
The universal power supply is used with the FPO-5000-PSB1 and FPO-5000-PS-CH Power
Supply Brackets. These power supply brackets can be used in the following wall mounting
housings:
WARNING!
The power supply unit may only be used in the specially designed brackets and in a fireproof
cover (such as a panel housing).
WARNING!
There is a risk of injury if the temperature sensor is not positioned between the batteries.
The temperature sensor is supplied with the power supply bracket and protects the batteries
against overheating. If the sensor is not positioned correctly, the batteries can overheat and
explode.
Position the temperature sensor between the batteries.
Pos. Labeling Connection
1 - 2 ACL | ACN Mains supply
3 Protective ground
4 - 5 DC+ | DC- 26.76 V DC output plus/0 V DC output minus
6 FAULT Mains fault output
7 - 8 RTH+ | RTH- Temperature sensor plus/minus
