4.3.4 Installation Dimensions for Mounting Frames
FBH 0000 A/FHS 0000 A Mounting Frame Large

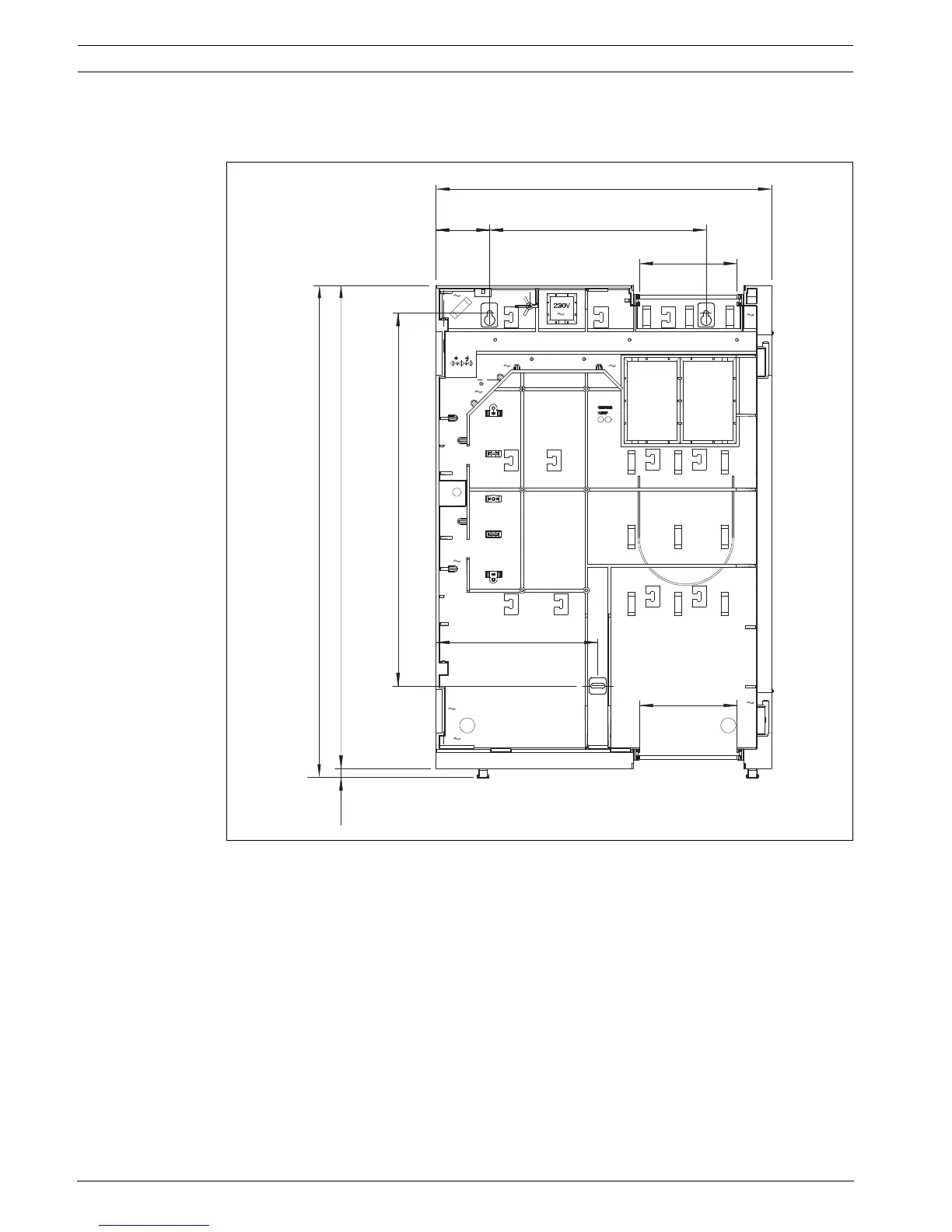

Figure 4.11 Installation dimensions - FBH 0000 A/FHS 0000 A [in mm]
130
005
066
216
846
290 ± 0,5
450
130
71
21
