Modular Fire Panel Installation | en 61
Bosch Sicherheitssysteme GmbH System Description F.01U.028.089 | 8.0 | 2011.07

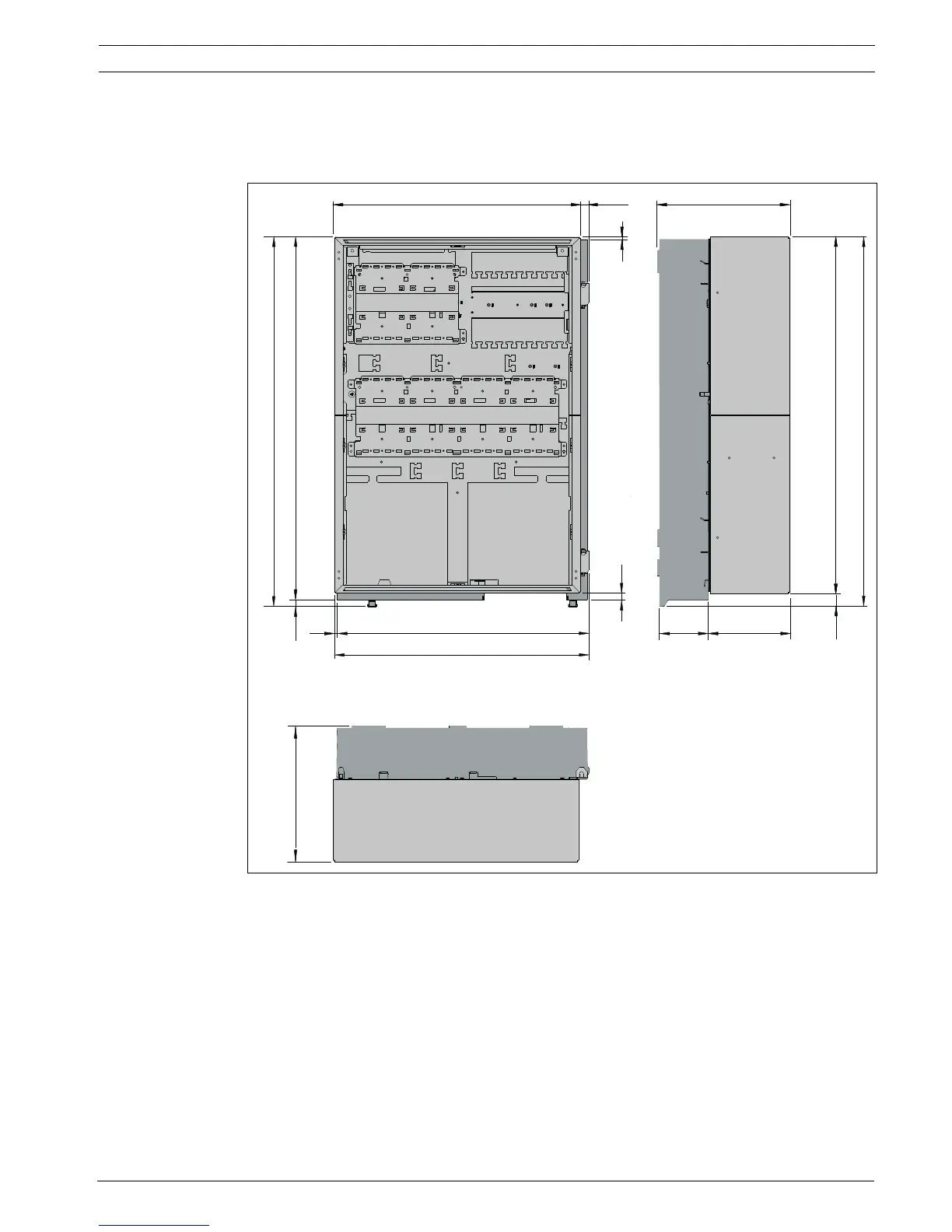

4.3.3 Installation Dimensions for Frame Installation Housing
Installation Dimensions for CPH 0006 A, EPH 0012 A and MPH 0010 A with FBH 0000 A or
FHS 0000 A Mounting Frames
Figure 4.8 Installation dimensions for CPH 0006 A, EPH 0012 A and MPH 0010 A [in mm]
236
638
663
651
663
12
3
236
440 15,5
145
452,5
455,5
3
91
13
25
