2.5 Housings for Wall Mounting

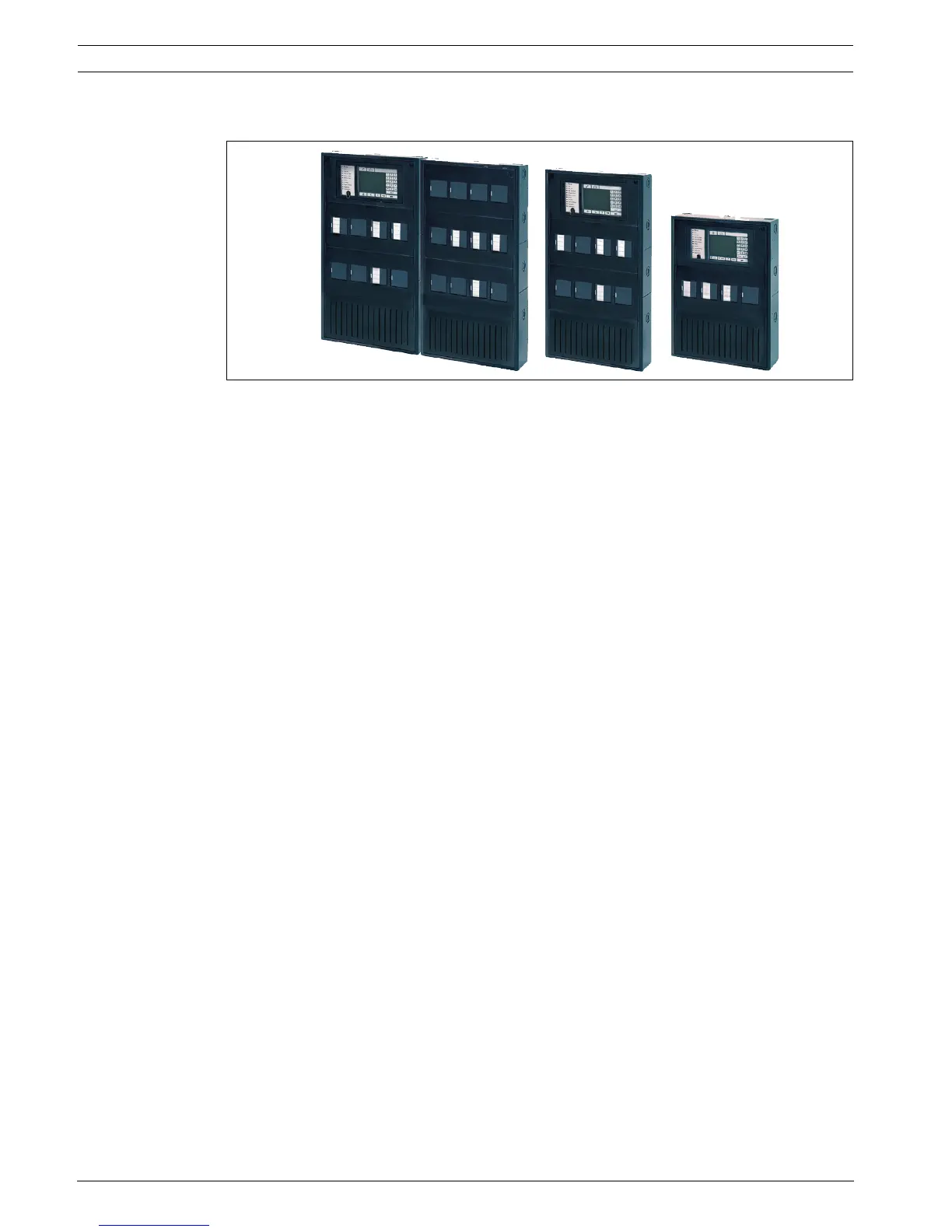

Figure 2.6 Housings for wall mounting
Wall mounting housings are screwed directly onto the wall. This reduces the installation depth
by approx. 9 cm, although the smaller 12 V/28 Ah batteries must be used as a result.
The modular system makes it easy to extend the system.
Housing Designs and Combinations
Two wall mounting housings are available as a base unit:
– HCP 0006 A (for 6 modules), and
– HBC 0010 A (for 10 modules)
These housings can accommodate an MPC Panel Controller with operating and display unit as
the central element.
The HCP 0006 A and HBC 0010 A basic housings can be extended to meet individual
requirements using:
– HBE 0012 A Modular Extension Housing for an additional 12 modules, and 2 x 12 V/28 Ah
batteries
– PSS 0002 A or PSB 0004 A Power Supply housings for additional power supply units and
12 V/28 Ah batteries
– DIB 0000 A Distribution Box
The DIB 0000 A Distribution Box is equipped with a distributor rail and is used to install
terminal strips.
