14 en | Product Description Modular Fire Panel
F.01U.028.089 | 8.0 | 2011.07 System Description Bosch Sicherheitssysteme GmbH
2.4 Housings for Frame Installation

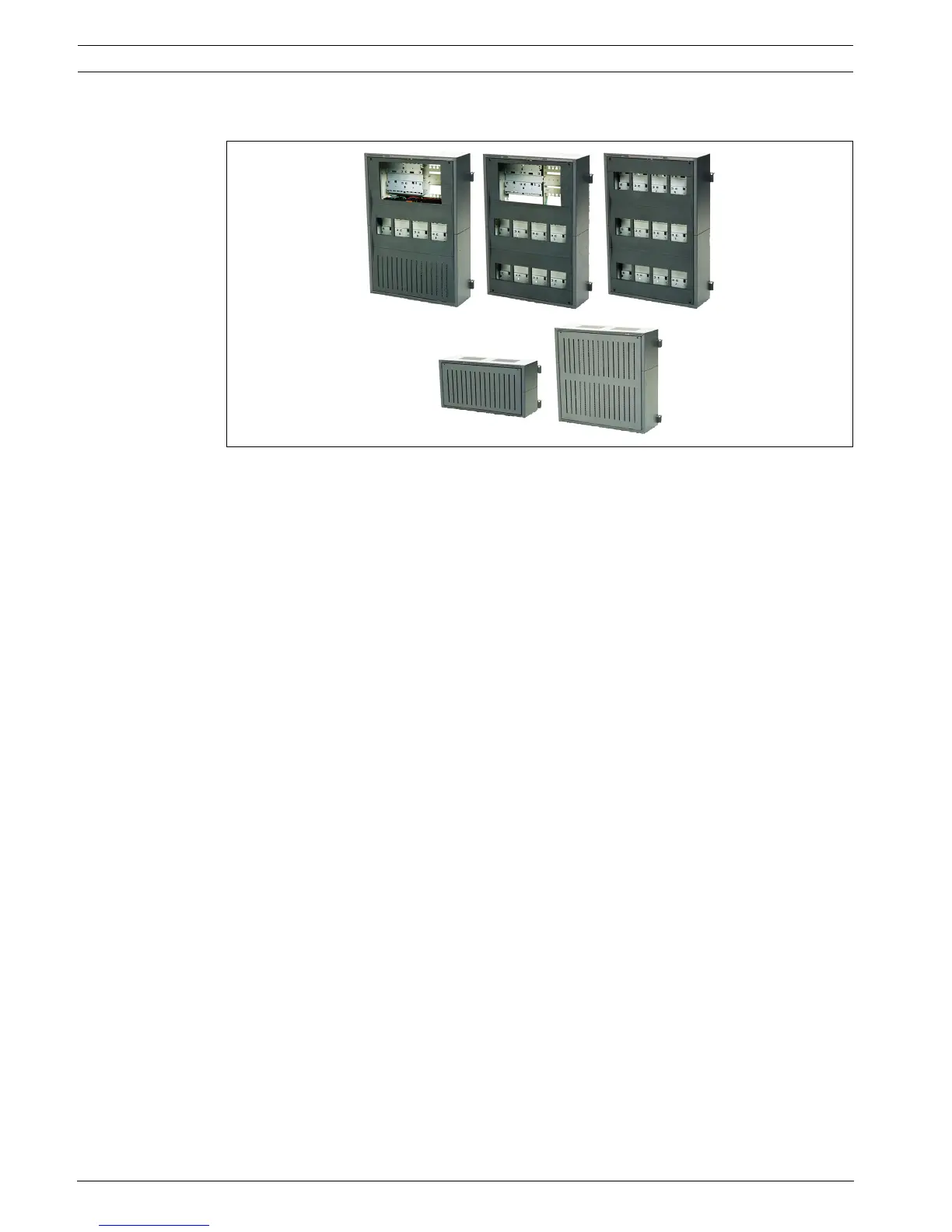

Figure 2.5 Housings for frame installation
Frame installation housings are always used in conjunction with the associated mounting
frame.
The housings are hooked into the mounting frame and can be swiveled to the front for
installation and servicing. The mounting frames are screwed to the wall surface and hold the
pre-cabling.
Alternatively to surface mounting, installation in 482.6 mm (19") racks is also possible using
special installation kits.
12 V/45 Ah batteries can be used in the frame installation housing.
The modular system makes it easy to extend the system.
Housing Designs and Combinations
Two frame installation housings are available as a base unit:
– CPH 0006 A (for 6 modules) or
– MPH 0010 A (for 10 modules)
These housings can accommodate an MPC Panel Controller with an operating and display
unit.
The CPH 0006 A and MPH 0010 A basic housings can be extended to meet individual
requirements using:
– EPH 0012 A extension housing for an additional 12 modules, frame installation
– PSF 0002 A or PMF 0004 power supply housing for two or four 12 V/45 Ah batteries
respectively and an additional power supply unit.
– USF 0000 A Universal Housing Small, Frame Installation.
A power supply bracket for a UPS power supply is fitted ex-works in housing units
CPH 0006 A, PSF 0002 A and PMF 0004 A.
