2.2 MPC Panel Controller
The panel controller is the central component of the fire detection system. All messages are
shown on the display. The entire system is operated via a touch screen. The user-friendly user
interface adapts to the various situations. This allows correct operation that is both simple
and clear and targeted and intuitive.
The FSP-5000-RPS programming software enables adaptation to country-specific
circumstances.
Figure 2.3 Overview of MPC system
Networking
Up to 32 panel controllers, remote keypads and OPC servers can be combined to form a
network.
Further information about networking can be found in Section 2.7 Networking, page 23 and
Section 3.2 Networking, page 27.
Alarm Indication
The display element is a high-resolution LCD touch screen (320 x 240 px) with automatically
activated backlighting. 11 LEDs provide continuous information about the operating status of
the panel or system. Additional LED indicator modules each with 16 detection points can be
used to provide visual indication of alarms or faults.

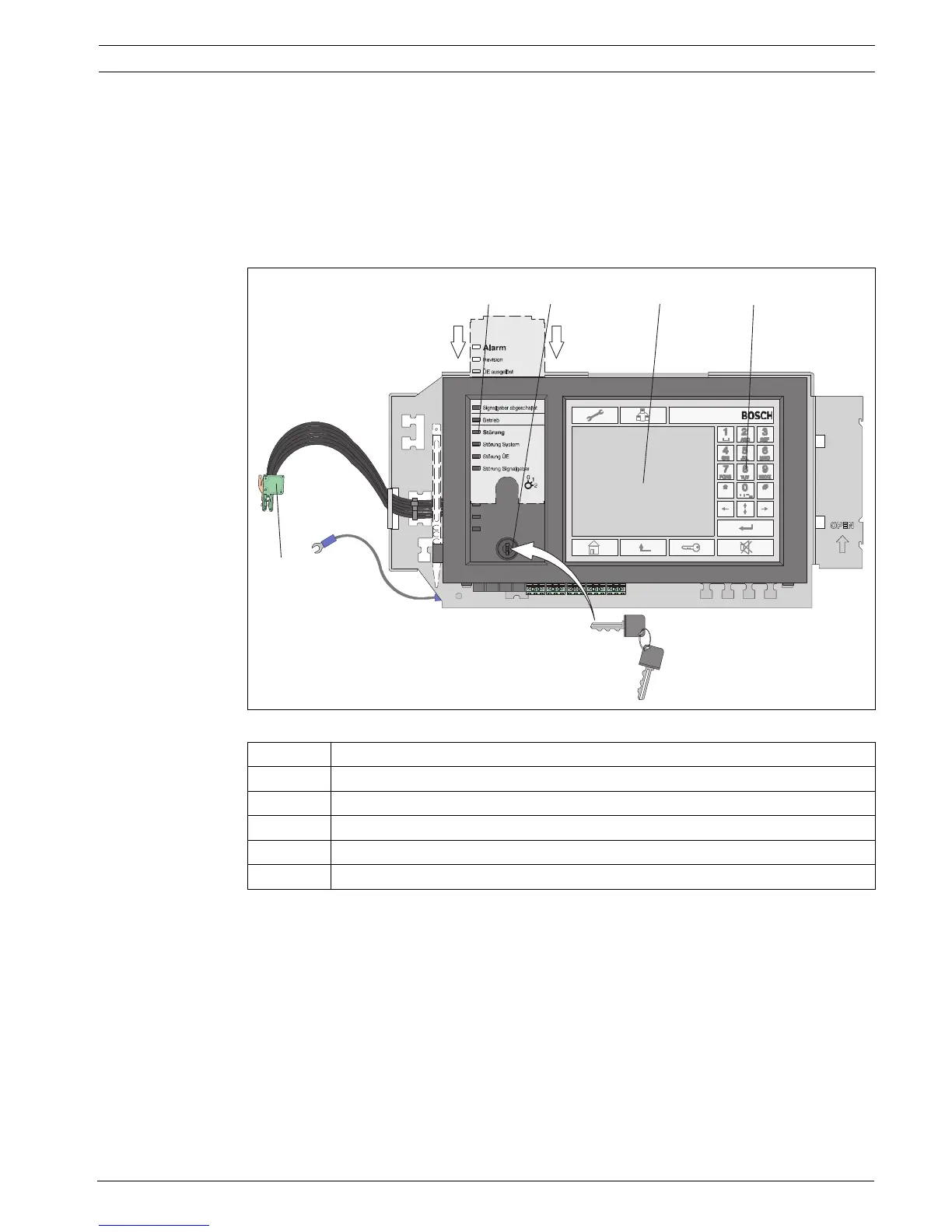

Position Description
1 LEDs for displaying the operating status, with labeling strips
2 Key switch
3 Touch screen
4 Membrane keys
5 CAN bus, internal
