Bosch FPA-5000 System Description

Modular Fire Panel Installation | en 123
Bosch Sicherheitssysteme GmbH System Description F.01U.028.089 | 8.0 | 2011.07
4.9.13 RMH 0002 A Relay Module for Mains Voltage
The module has two changeover contact relays (type C) for monitored connection of external
elements with feedback, e.g.
– Electromagnetic door holders
–Fans
– Smoke dampers
Each relay has one NO (normally open) and one NC (normally closed) contact and is
protected by a 6.3 A fuse.
The outputs are not monitored.
The maximum permissible contact load is 5 A at 120 V/230 V AC and 5 A at 30 V DC.
The relay module can also be used as an extinguishing system interface in accordance with
VdS 2496.

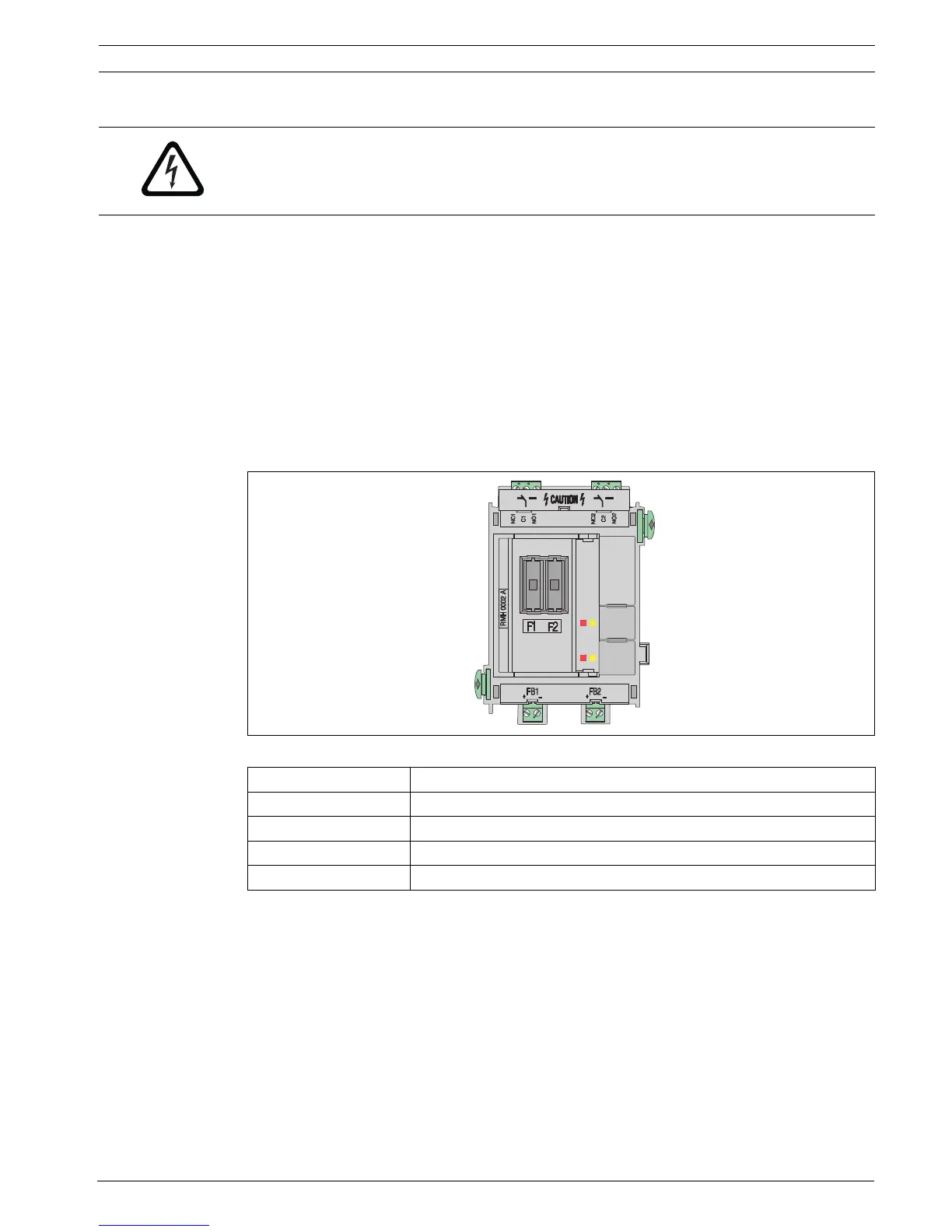

Figure 4.77 RMH 0002 A Relay Module for mains voltage
The technical data can be found in Section 7.5.12 RMH 0002 A Relay Module for mains voltage,
page 164.
DANGER!
The device contains live components.
Touching live components entails a risk of death or serious injury.
Disconnect the power supply before all installation work.
Labeling Connection
NC1 | C1 | NO1 Relay 1
NC2 | C2 | NO2 Relay 2
FB1 + | FB1 - Feedback relay 1
FB2 + | FB2 + Feedback relay 2
