4.4.2 HMP 0003 A Mounting Plate for Mounting Frame

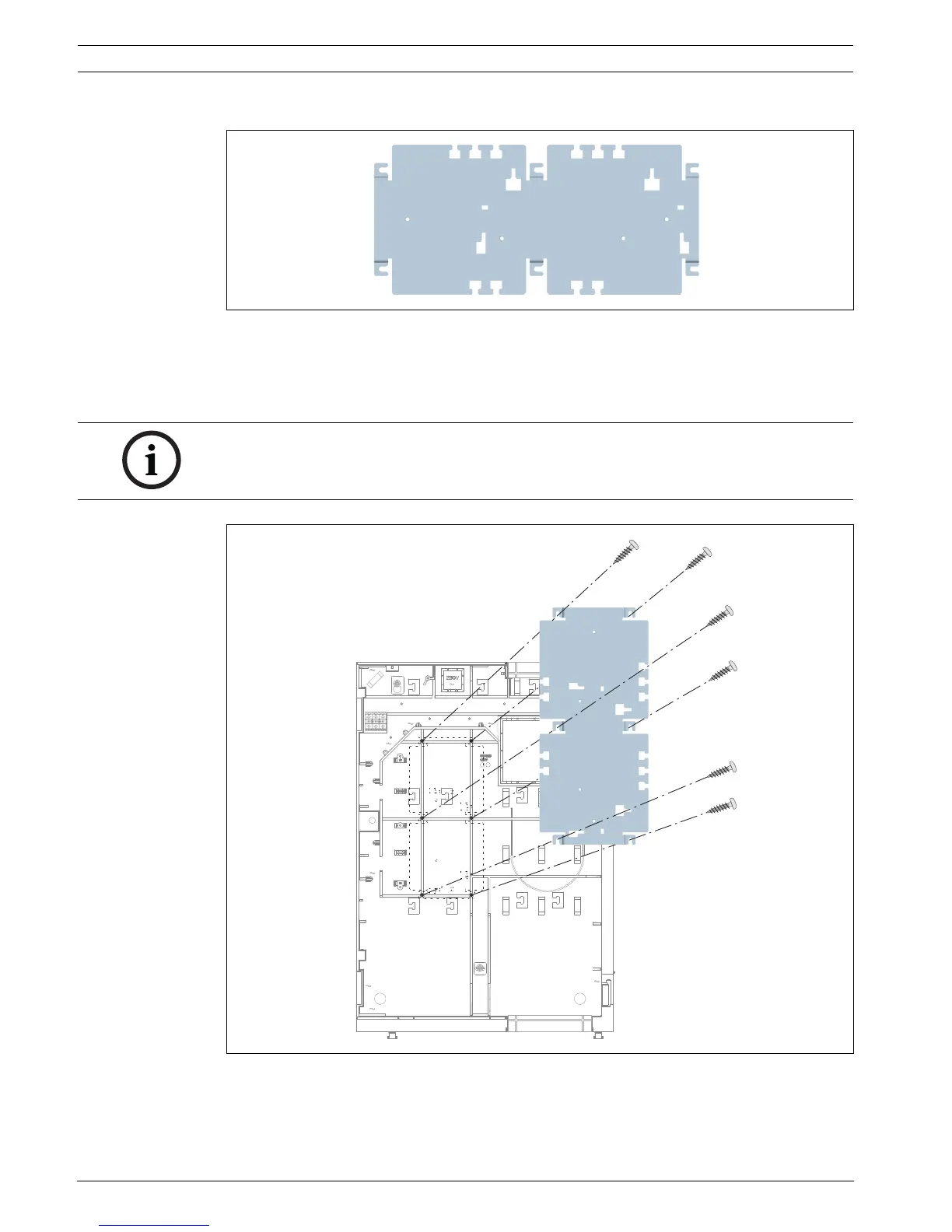

Figure 4.19 HMP 0003 A Mounting Plate for Mounting Frame
The HMP 0003 A Mounting Plate is used in both the large FBH 0000 A and FHS 0000 A
mounting frames.
The mounting plate is required to install interface modules, external device controllers, relays
and other components. It can be fitted with a distributor rail.
Figure 4.20 HMP 0003 A installation
NOTICE!
The distributor rail is not included in the scope of delivery for the HMP 0003 A Mounting Plate.
