Bosch FPA-5000 System Description

126 en | Installation Modular Fire Panel
F.01U.028.089 | 8.0 | 2011.07 System Description Bosch Sicherheitssysteme GmbH

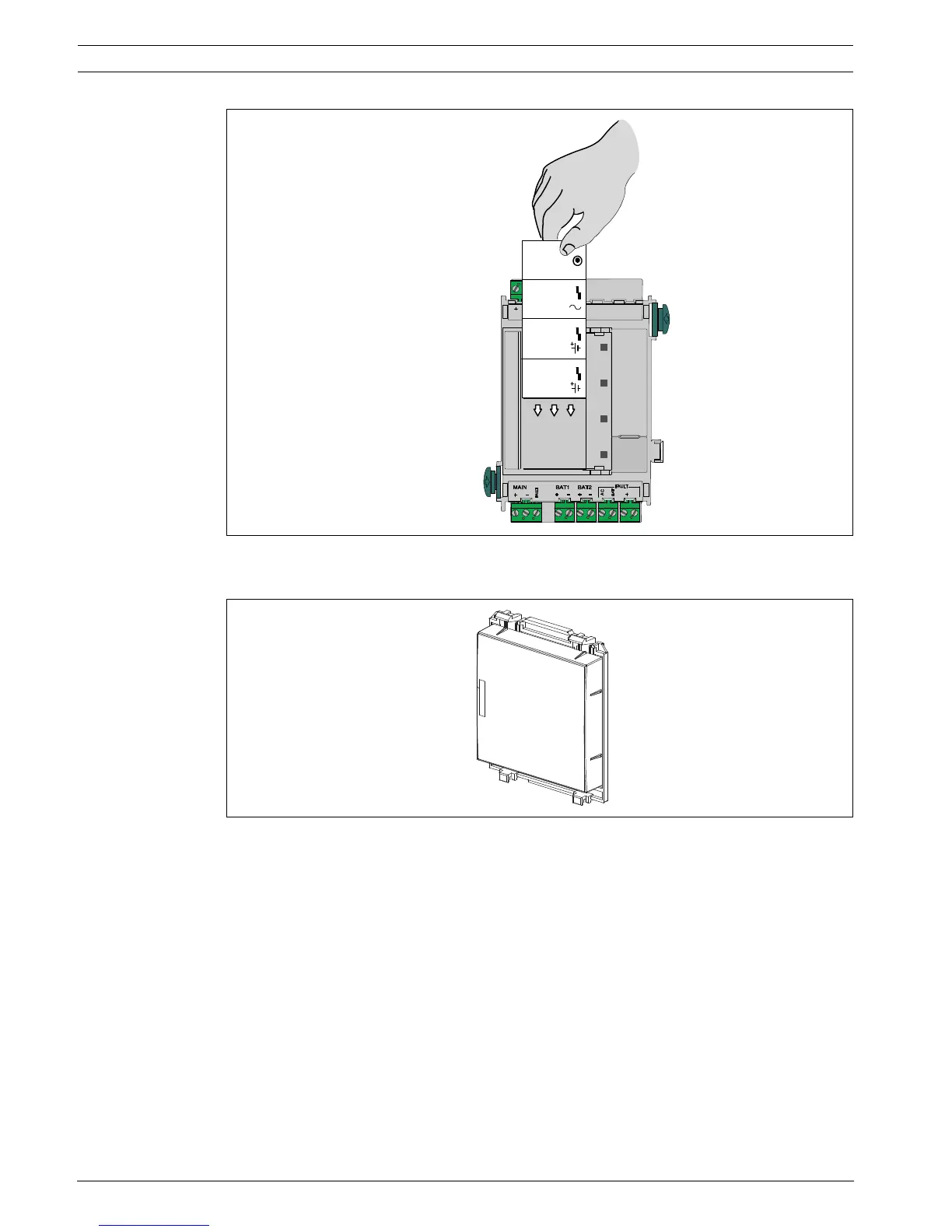

Figure 4.81 PSK 0001 A - Inserting the labeling strip
FDP 0001 A Dummy Cover Plate
Figure 4.82 FDP 0001 A Dummy Cover Plate
Fit the dummy cover plates on unused module slots in the front panels of the housings.
24 V
24 V
MAIN POWER
MAIN POWER
TROUBLE
BATTERY 1
BATTERY 2
TROUBLE
TROUBLE
B-0000-MCB
24 V
Σ
BCM-0000-B
LSN 0300 A
LSN 1500 A
CZM 0004 A
NZM 0000 A
ENO 0000 B
RMH 0002 A
