Modular Fire Panel Installation | en 135
Bosch Sicherheitssysteme GmbH System Description F.01U.028.089 | 8.0 | 2011.07
Functions
The remote keypad can be used to perform the same operating procedures as the (MPC)
panel itself, enabling a networked system to be operated decentrally.
It has the following functional elements:

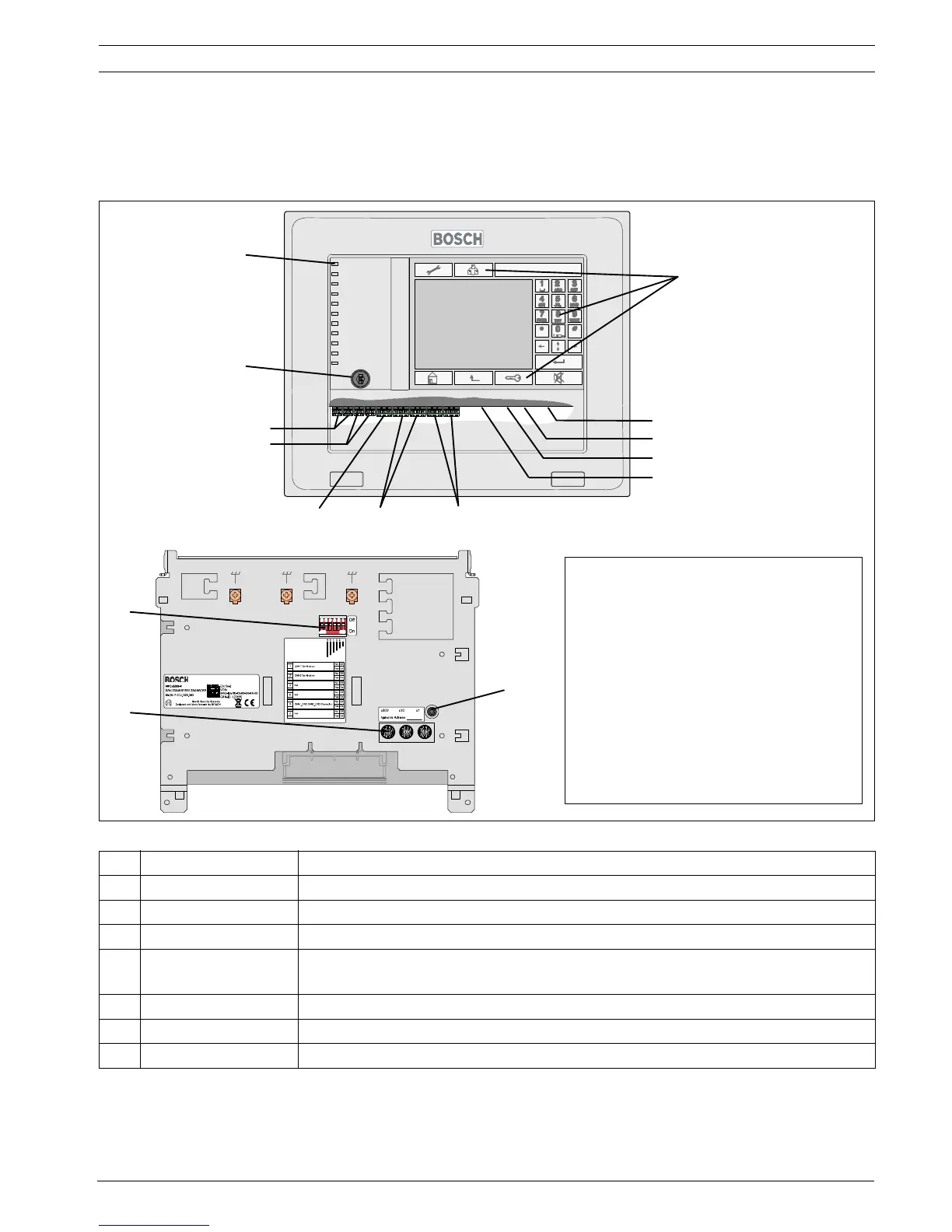

Figure 4.90 FMR-5000 functional elements
Note the maximum cable length of 3 m for connection to the USB and RS232 interfaces (see
figure).
2xDC1
2xDC2
RS232
DE FMR-5000-00 F.01U.075.326
ES FMR-5000-02 F.01U.075.327
PL FMR-5000-03 F.01U.075.328
FR-NL FMR-5000-05 F.01U.075.330
EL FMR-5000-06 F.01U.075.331
RO-EN FMR-5000-07 F.01U.075.339
RU FMR-5000-08 F.01U.075.332
TR FMR-5000-09 F.01U.075.333
EN FMR-5000-13 F.01U.075.334
PT FMR-5000-14 F.01U.075.335
CS FMR-5000-15 F.01U.075.336
HU FMR-5000-16 F.01U.075.337
IT-DE FMR-5000-17 F.01U.075.341
USB Device
Ethernet (RJ45)
USB Host
IN1 / GND / IN2 2 x CAN1 2 x CAN2
3.
5
6
7
1
4
3
2
Pos. Designation Function
1 Touch screen Operation of the networked system using virtual keys and variable display windows
2 Keypad Standard inputs
3 11 LEDs Display operating status
4 Key switch Two switch positions, freely programmable, e.g. for switching between day/night
mode or activating/deactivating local alarms
5 Reboot button Remote keypad hardware reset
6 6-pin DIP switch Configuration setting
7 3 rotary switches Address setting
