Bosch FPA-5000 System Description

Modular Fire Panel Planning | en 35
Bosch Sicherheitssysteme GmbH System Description F.01U.028.089 | 8.0 | 2011.07

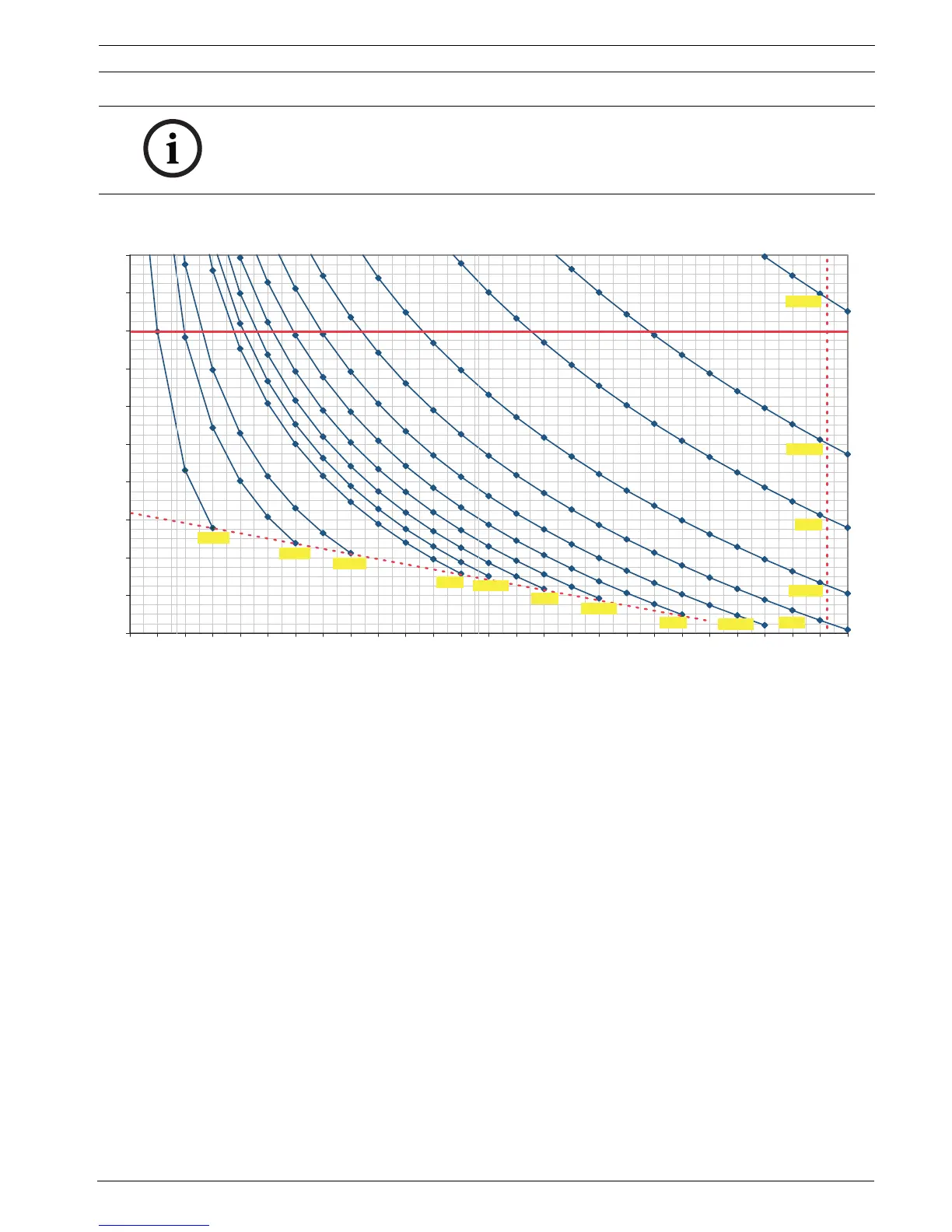

Figure 3.3 Diagram for determining the maximum achievable cable length: LSN classic elements with LSN 0300 A
NOTICE!
Remote alarm indications activated by the detector C point:
A maximum additional cable length of 500 m is allowed when using remote displays (e.g.
MPA/FAA-420-RI). The total length of installed cable must not exceed the limit of 1600 m.
0
0
02
0
04
006
00
8
00
01
00
21
00
41
0061
0081
0002
A
m7,0
Am1
Am
5
,1
A
m
02
Am01
A
m5
,
7
Am5
Am2
A
m4
Am
5,
4
Am5,2
A
m3
Am5,3
310210110010908070605
0
40302010 0
Am4,0
c
a
L[m]
N
b
L = cable length in meters
N = number of LSN classic elements
a = 1600 m limit
b = 300 mA limit
c = maximum possible number of LSN classic elements = 127

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
