44 en | Planning Modular Fire Panel
F.01U.028.089 | 8.0 | 2011.07 System Description Bosch Sicherheitssysteme GmbH
Configuration with One to Four BCM Modules in Frame Installation Housings
– Up to 2 BCM modules on first panel rail (PRS 0002 A)
– Maximum 2 BCM modules at the end of the last panel rail (PRD 0004 A)
– Each BCM module requires one UPS 2416 A Universal Power Supply.
Depending on the back-up time, a PMF 0004 A housing may be required instead of the
PSF 0002 A housing for the power supply.

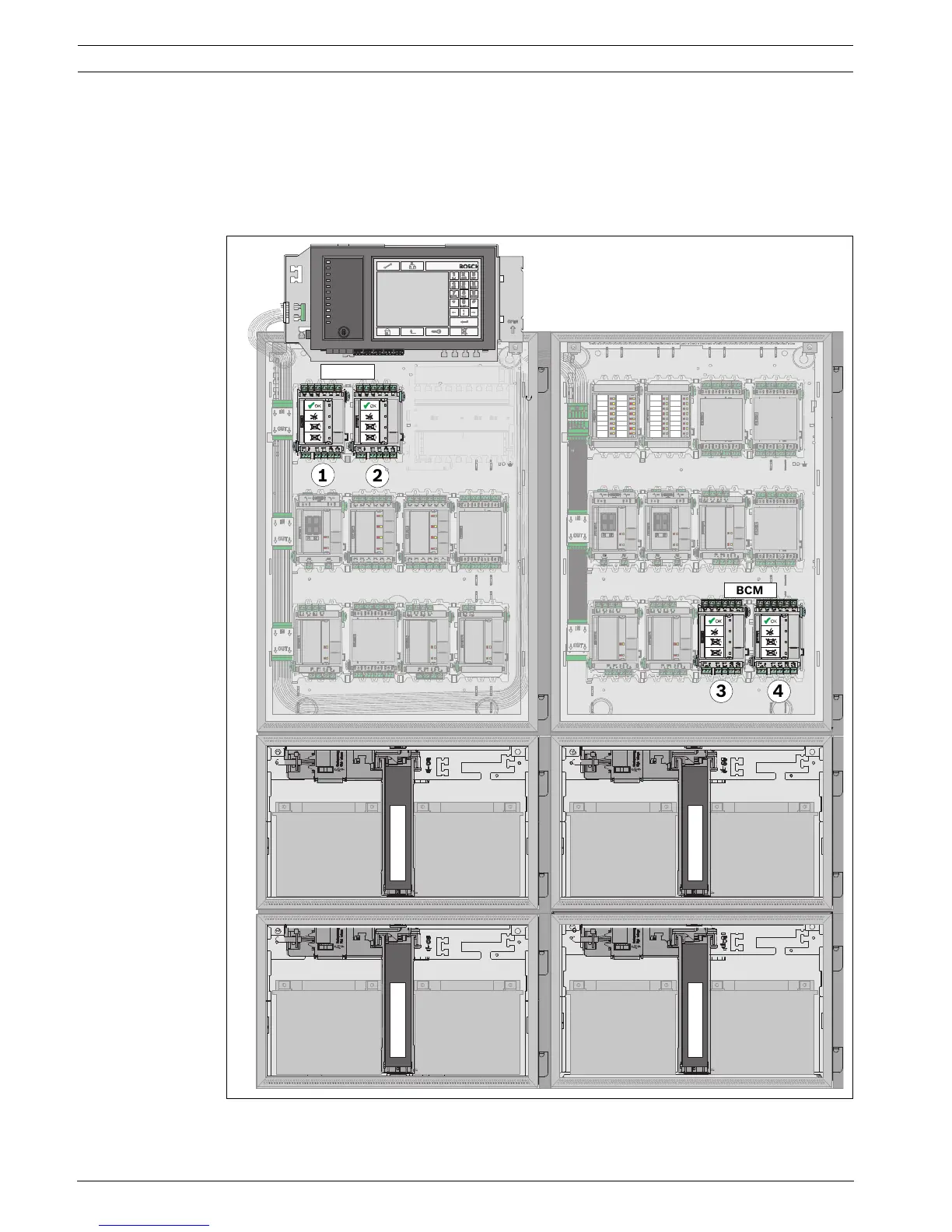

Figure 3.10 Configuration of 1 to 4 BCM modules (frame installation)
1
2
BCM
BCM
4
3
A
6
1
42S
P
U
A6
1
4
2SP
U
A6142SPU
A6142SPU
EPH 0012 A
MPH 0010 A
A2000FSPA2000FSP
12 V / 45 Ah12 V / 45 Ah 12 V / 45 Ah12 V / 45 Ah
12 V / 45 Ah12 V / 45 Ah 12 V / 45 Ah12 V / 45 Ah
