Installation Kits for Frame Installation Housings
Special installation kits are available for installing frame installation housings in 482.6 mm
(19") racks:
No mounting frame is required when using the 482.6 mm installation kits.
The table below shows the space required for the different frame installation housings when
using the installation kits for 482.6 mm racks.
FRB 0019 A Rack Installation Kit, Large

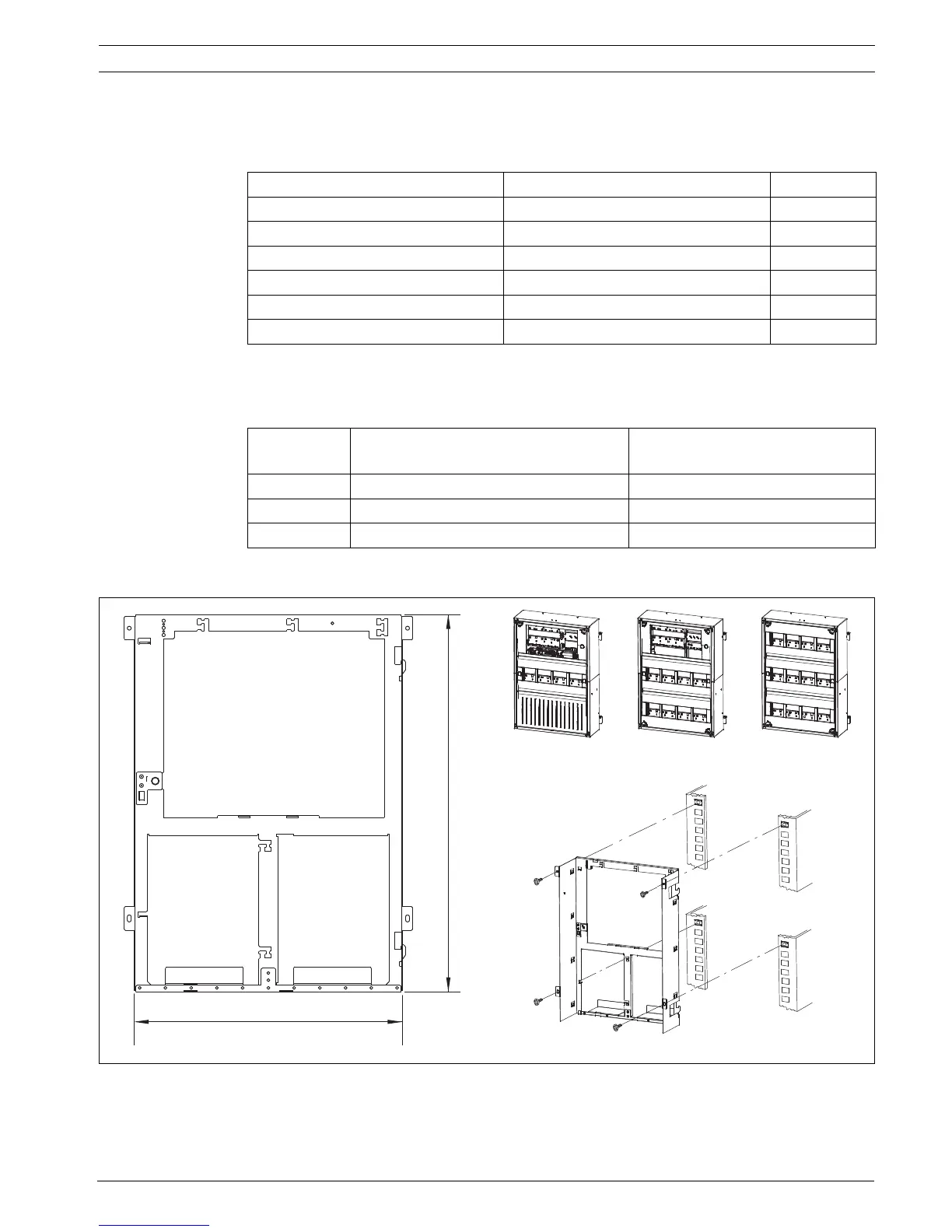

Figure 4.15 FRB 0019 A installation kit for CPH 0006 A, MPH 0010 A, EPH 0012 A [installation dimensions in mm]
Housing type Installation kit Height unit
CPH 0006 A FRB 0019 A 15
MPH 0010 A FRB 0019 A 15
EPH 0012 A FRB 0019 A 15
PMF 0004 A FRM 0019 A 12
PSF 0002 A FRS 0019 A 6
USF 0000 A FRS 0019 A 6
Installation
kit
Housing types Space required (H x B x T)
FRB 0019 A CPH 0006 A, MPH 0010 A, EPH 0012 A 638 x 449 x 233.5 mm
FRM 0019 A PMF 0004 A 502 x 449 x 233.5 mm
FRS 0019 A PSF 0002 A, USF 0000 A 267 x 449 x 233.5 mm
636
449
