Bosch Solution 6000-IP Installation Guide

Solution 6000-IP  Installation Manual  Wiring Diagrams
3-5
Bosch Security Systems 10/22 BLCC615I
16-18 VAC
24VA
12VDC 7.2Ah Sealed
Lead Acid Battery
Panasonic LC-P127R2P
or Equivalent
Accessory
12 VDC Supply
(750mA Fused)
LAN Devices
Connection
Terminals
(750mA Fused)
Output 1, 2, 3 and 4
Connection Terminals
500mA
RF Receiver
/ Keyswitch
Input
Zone Input
Terminals
Panel Cabinet
Tamper Circuit
Connection
Terminals
Battery
Charging
Globe
4-Pin Socket
to LAN For
Service Keypad
Default and
Direct Connect
Switch
10-Pin Serial
Connection
Socket For Direct
Link / Flash
Programming
etc.
Relay COM
Terminal
Programming
Shunt
Expansion Port
TCP/IP, GSM
Module
Connection
RS485 LAN
Termination
Shunt
Earth Connection
Spade For Surge
Protection
Output Devices
12VDC Supply
(2.5A Fused)
The maximum
continuous
combined
current draw
from the +12V,
LAN + and
C+ terminals
must not
exceed 1 Amp
Ouput 5
Relay Output
24V D.C. 2Amp
Refer to
Documentation
For Dialer &
Status LED’s
X
G
SP

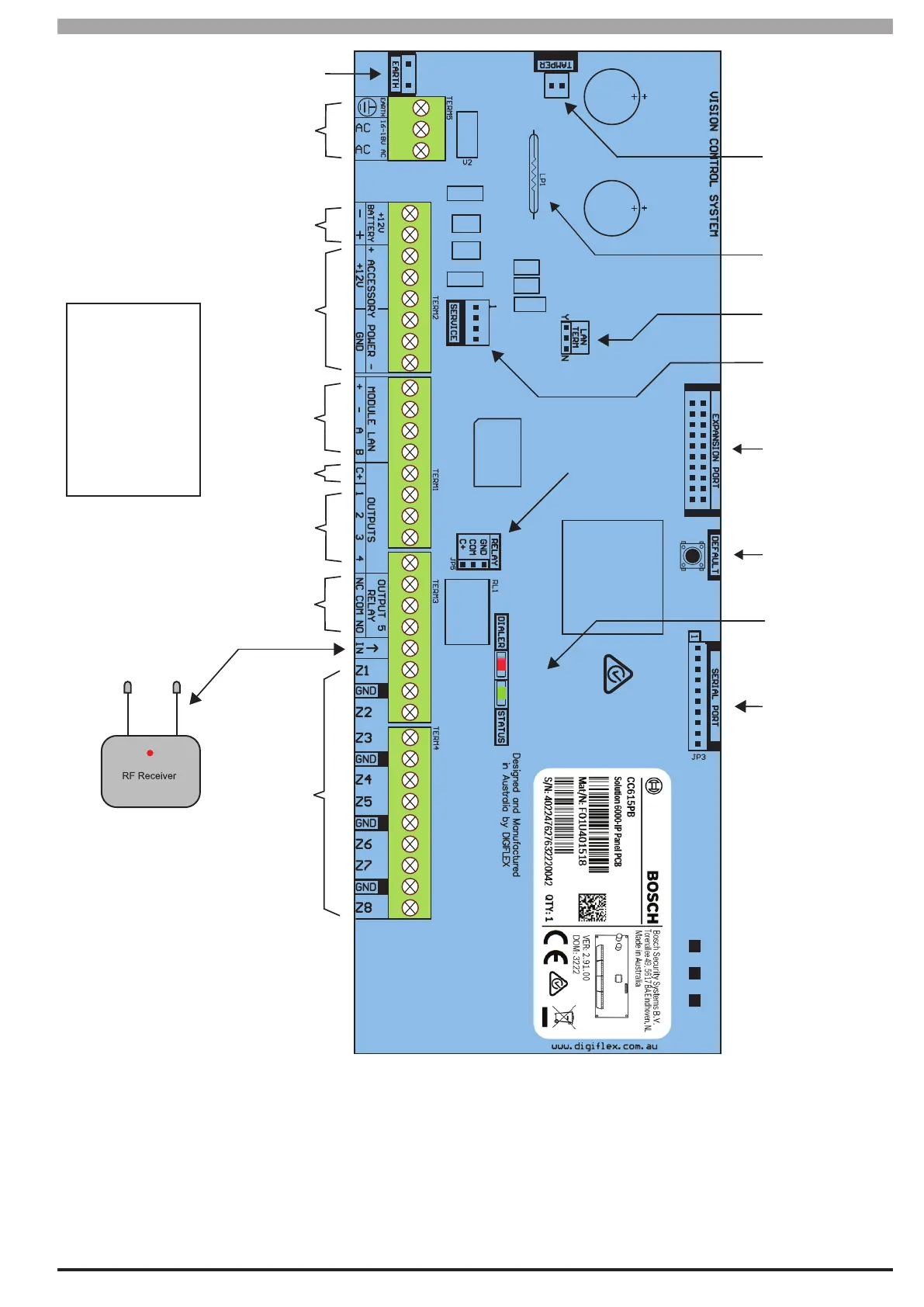

Figure 24: Terminal Descriptions

Bosch Solution 6000-IP Specifications

General

Event Log	Yes
Areas	1
Partitions	1
Outputs	2
Communication	IP, GSM
Mobile App	Yes
Automation	Yes
System Type	Hybrid
Battery Backup	Yes
Keypads	Up to 8
