S83/85 Ultrasonic Generator Introduction
A40-064 Rev 0 Page 13
1.5 About This Manual
This manual contains instructions for installing, operating and maintaining S83/85 Ultrasonic
Generators.
At the back of the manual you will find Appendices containing documentation including wiring
schematics, plumbing schematics and assembly drawings.
The following definitions apply in this manual:
Note: Inconvenience only if disregarded - no damage or personal injury.
Caution: Equipment damage may occur, but not personal injury.
Warning: Personal injury may occur - DO NOT DISREGARD.
PN indicates Part Number.
Part(s) indicates your workpiece or component to be cleaned.

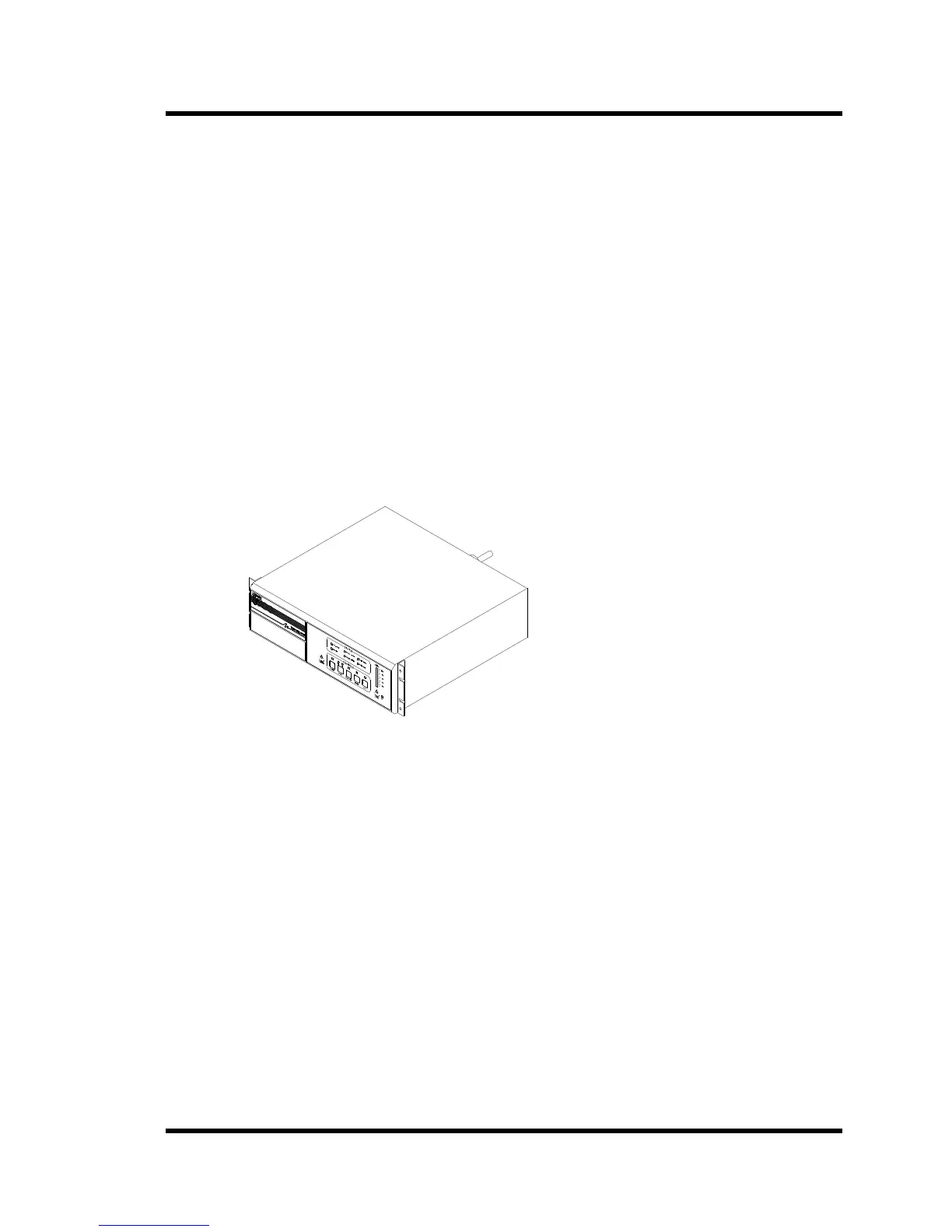

Figure 1-1 S8500 Ultrasonic Generator
1.6 General System Description
Series 83/85 Ultrasonic Power Supplies deliver ultrasonic electrical energy at 25 kHz, 40 kHz, 80
kHz, 120 kHz or 170 kHz (depending on the model) to an ultrasonic cleaning system. A typical
system consists of an ultrasonic power supply and a cleaning tank or immersible. Optional full
feature or OEM interface boards allow the generator to be configured and operated remotely.
Note: Series 83/85 ultrasonic power supplies only work with Branson ultrasonic equipment (tanks
and immersible transducers.
