S83/85 Ultrasonic Generator Controls
A40-064 Rev 0 Page 19
2.3 S8300 Controls

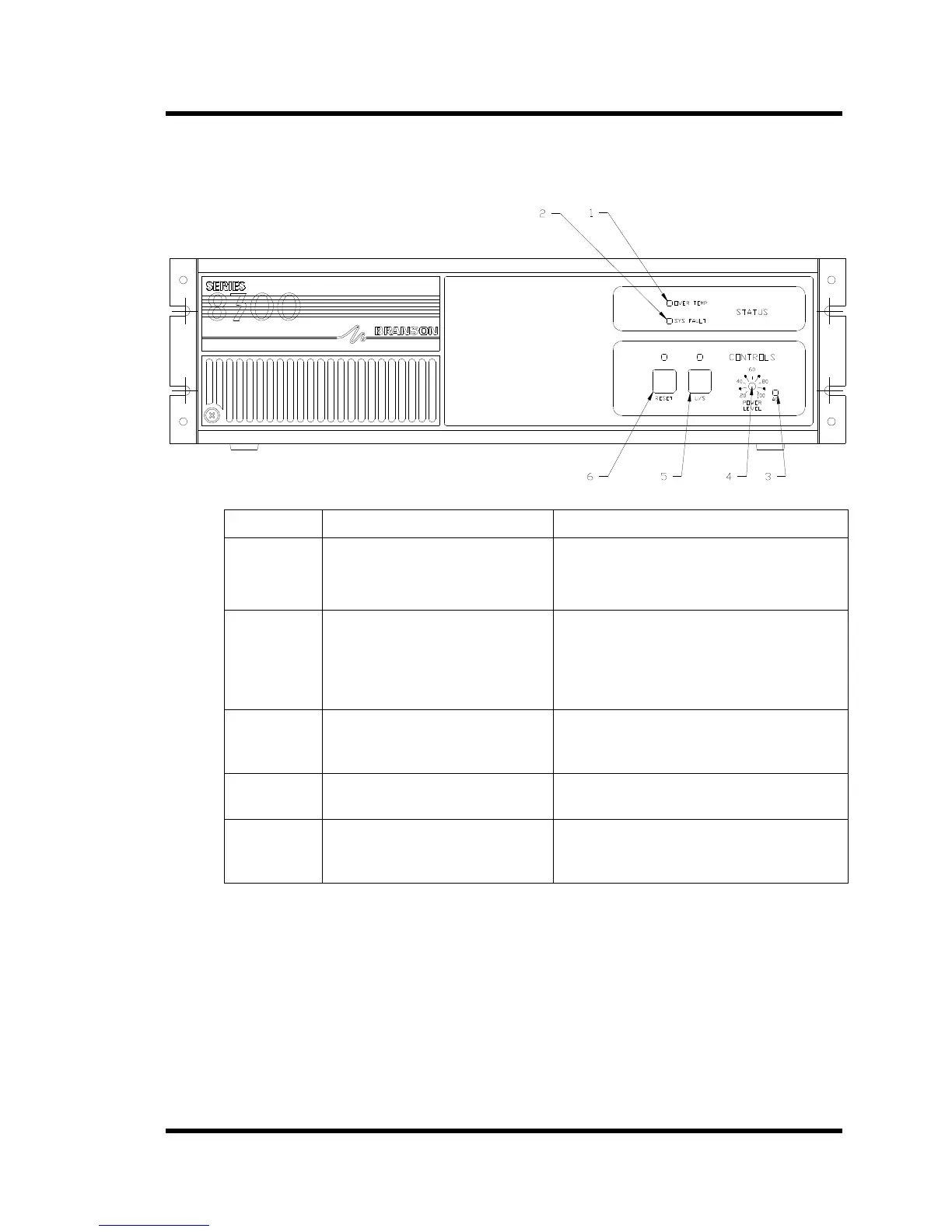

Figure 2-5 S8300 Front Panel
Item No. Control Function
1 OVER TEMP
Annunciator lights when the ultrasonic
power supply detects an excessive internal
temperature. Power supply is in standby
mode when light is on.
2 SYS FAULT Annunciator lights when the ultrasonic
power supply detects an overload, out of
range power level or an external fault
condition via the I/O port. Power supply is
in standby mode when light is on.
3 AC Lights when the On/Off switch is on and the
ultrasonic power supply has main AC
power.
4 US Activates ultrasonic output power; LED is
on when ultrasonics are on
5 RESET Press when the LED is on to reset the
ultrasonic power supply and turn the LED
off.
