Branson S83 - Front Panel Controls

S83/85 Ultrasonic Generator Controls
A40-064 Rev 0 Page 16
2 Controls
2.1 Introduction - Component Identification and Specifications
Operating the ultrasonic power supply requires that you become familiar with the power supply
controls, annunciators, and adjustment function.
The front panel contains the following:
• Control switches;
• Status annunciators;
• Adjustment ports.
2.2 S8500 Controls

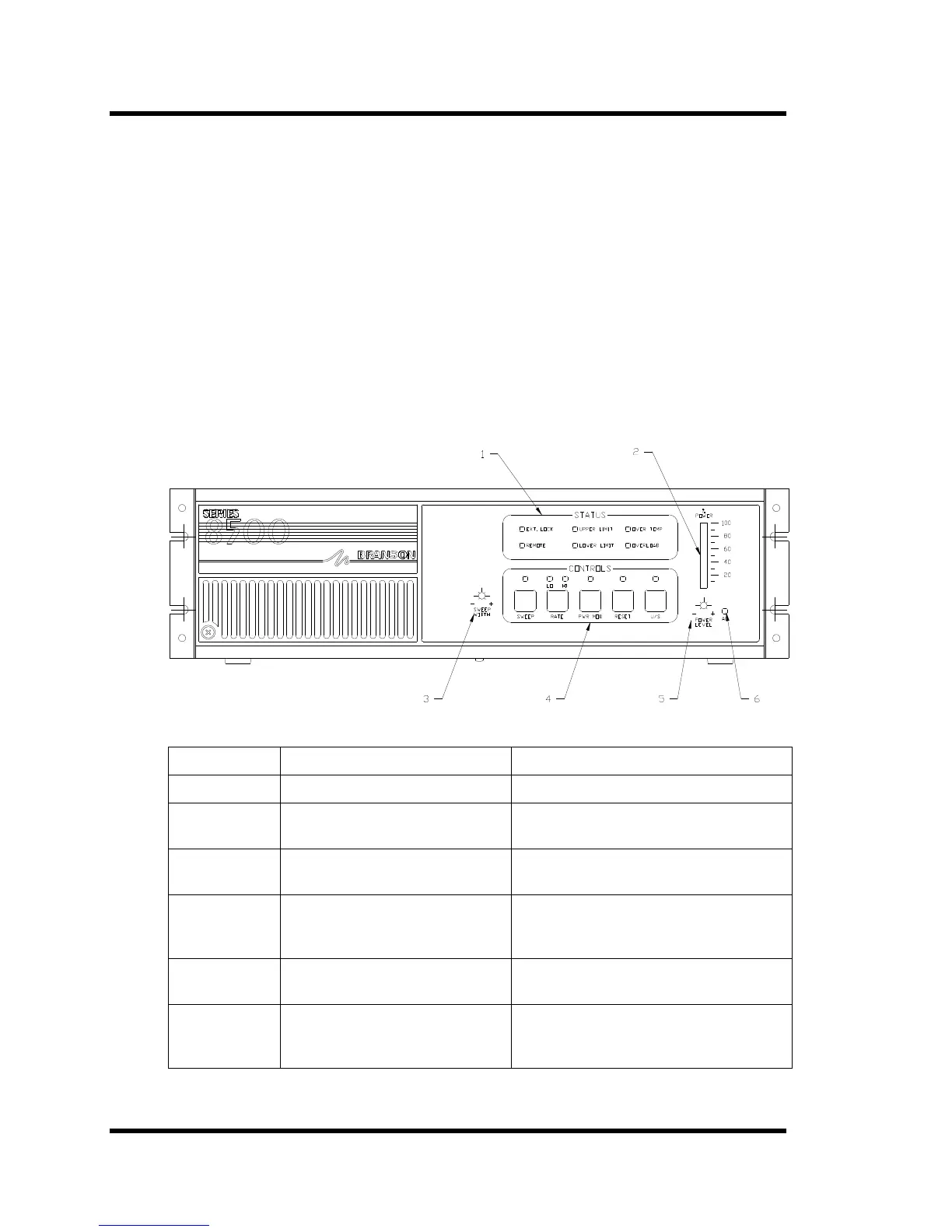

Figure 2-1 S8500 Front Panel
Item No. Description Function
1 Status annunciators Light when fault conditions occur.
2 Ultrasonic (U/S) Power Bargraph Displays the percentage of ultrasonic
power input.
3 Sweep Width Adjustment port Allows adjustment bandwidth of the
Sweep mode.
4 Ultrasonic power supply control
switches
Contains switches to control ultrasonic
power supply functions and status
annunciators.
5 Power Level Adjustment port Allows manually setting the ultrasonic
power level.
6 AC Power Lights when the On/Off switch is on and
the ultrasonic power supply has main AC
power.
