Branson S83 - Parts List

S83/85 Ultrasonic Generator Troubleshooting
A40-064 Rev 0 Page 80
Assemblies

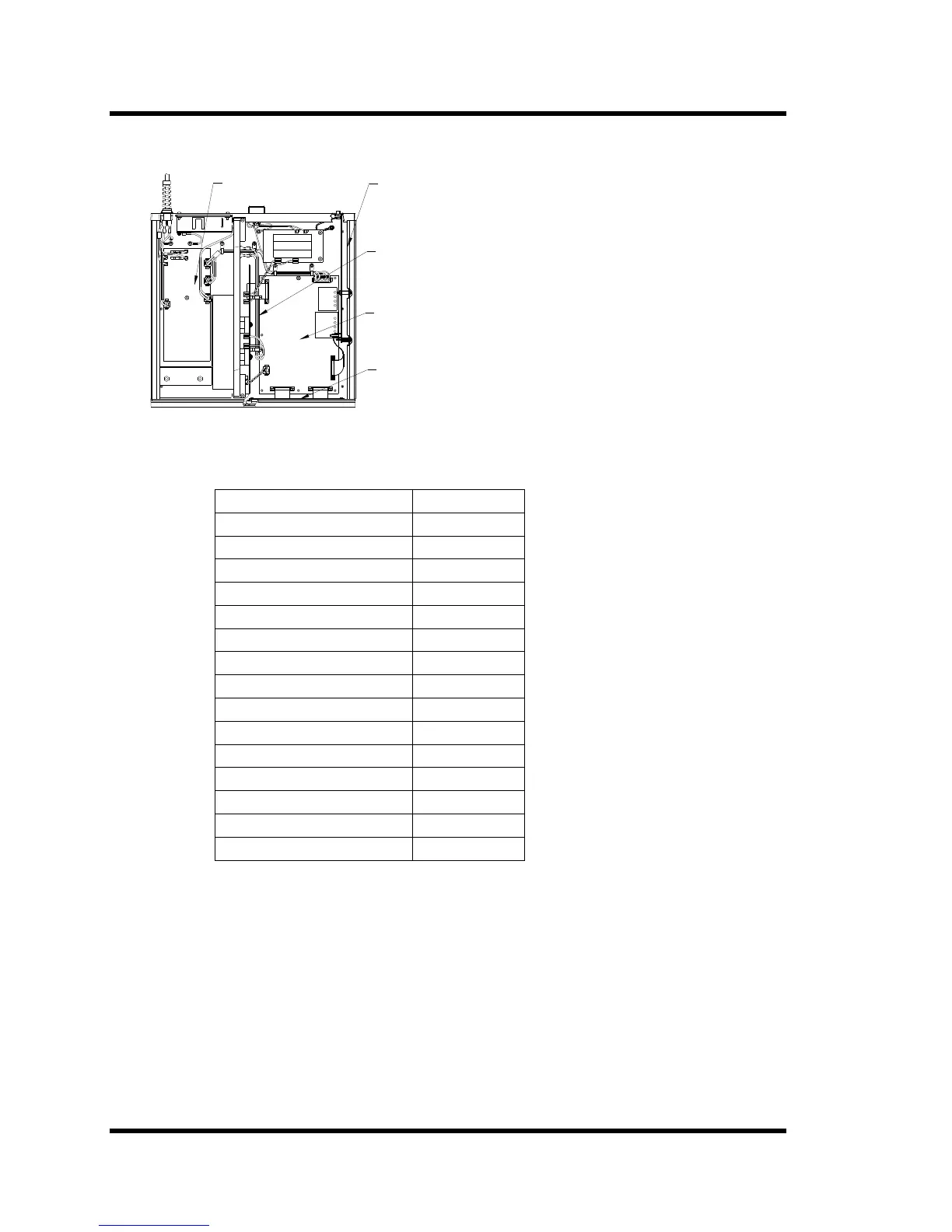

Figure 6-2 Ultrasonic Power Supply Top View
POWER
OSCILLATOR
BOARD
DRIVER
BOARD
CONTROL
BOARD
RFI
BOARD
I/O BOARD
(OPTIONAL)
J17
J16
E2
E5
E1
E4
J14
J11
FLOW
J3
J7
J6
J1
A CB D BA C D
J5
J9
6.6 Parts List
Table 11 Spare Parts List
Part Part Number
Adjustment tool 100-106-009
Fuse 16A, 250VAC 200-049-116R
Fuse 10A, 120VAC 000-135-069R
Fan 230VAC 200-126-012
Fan 115VAC 200-126-009
Membrane Keypad S8500 100-242-278
Membrane Keypad S8300 100-242-311
25-40kHz Driver Board 100-242-310
80-170 kHz Driver Board 100-242-369
On/Off Switch DPST 200-099-230
Power Oscillator Board 100-242-661
Control Bd. S8500 100-242-289
Control Bd. S8300 100-242-339
RFI Bd. 230V 100-242-304
RFI BD 120V CPN-242-224
