S83/85 Ultrasonic Generator Installation
A40-064 Rev 0 Page 23
• Allow sufficient clearance to access connectors on back of the ultrasonic power supply (7 in.
minimum).
• Place the ultrasonic power supply on a horizontal, flat surface top near the tank or transducer
in an area away from any heat sources.

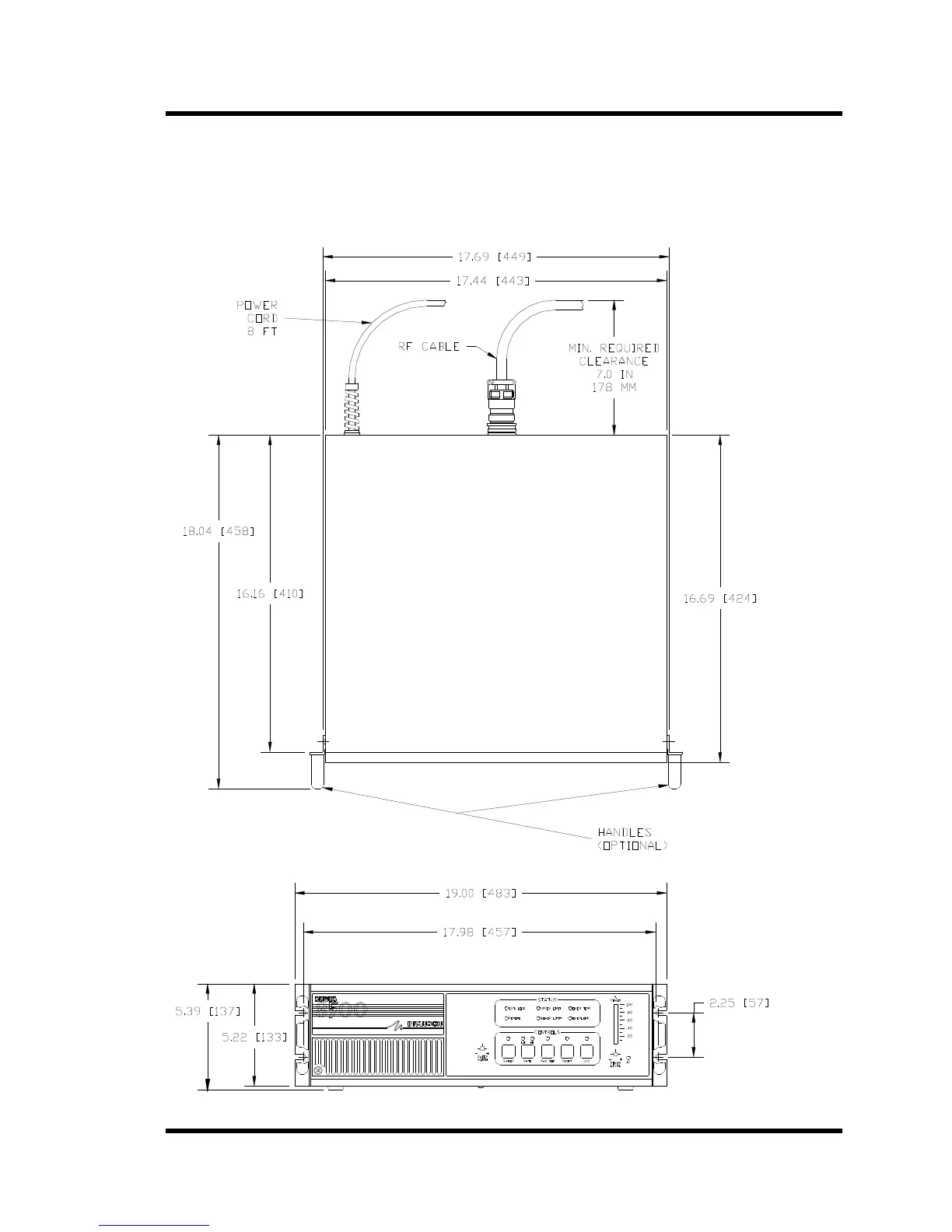

Figure 3-1 Ultrasonic Power supply Dimensions
