S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 57
5.9 CB Type Immersible Mounting and Wiring
CB type immersible transducers mount on the inside wall of a custom ultrasonic tank.
5.9.1 CB Type Immersible Transducer Models and Dimensions
Table 7 CB Type Immersibles
Model Chrome Bright Annealed
CB610-25-6 101-910-684 101-910-703
CB618-25-12 101-910-686 101-910-701
CB610-40-6 101-910-685 101-910-702
CB618-40-12 101-910-687 101-910-700

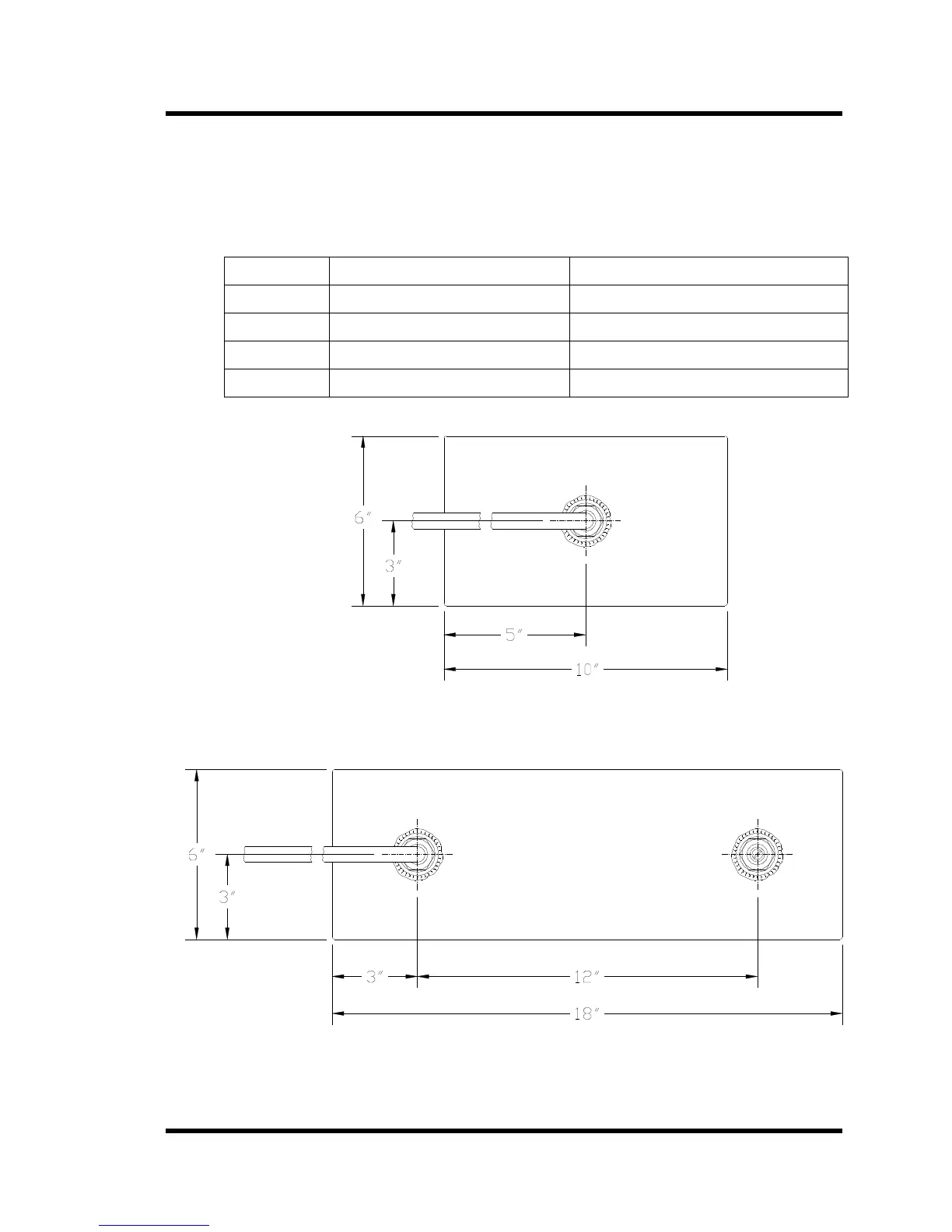

Figure 5-21 CB Type Immersible Transducer Dimensions
DANBURY CT. U.S.A.
CORPORATION
BRANSON ULTRASONICS
SERIAL XX − XXXX − XX
MODEL CB610 − XX − 6
DANBURY CT. U.S.A.
BRANSON ULTRASONICS
CORPORATION
SERIAL XX − XXXX − XX
MODEL CB618− XX − 12
