Branson S83 - EB Type Immersible Transducer Junction Box Wiring

S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 69
5.11.3 EB Type Immersible Transducer Junction Box Wiring

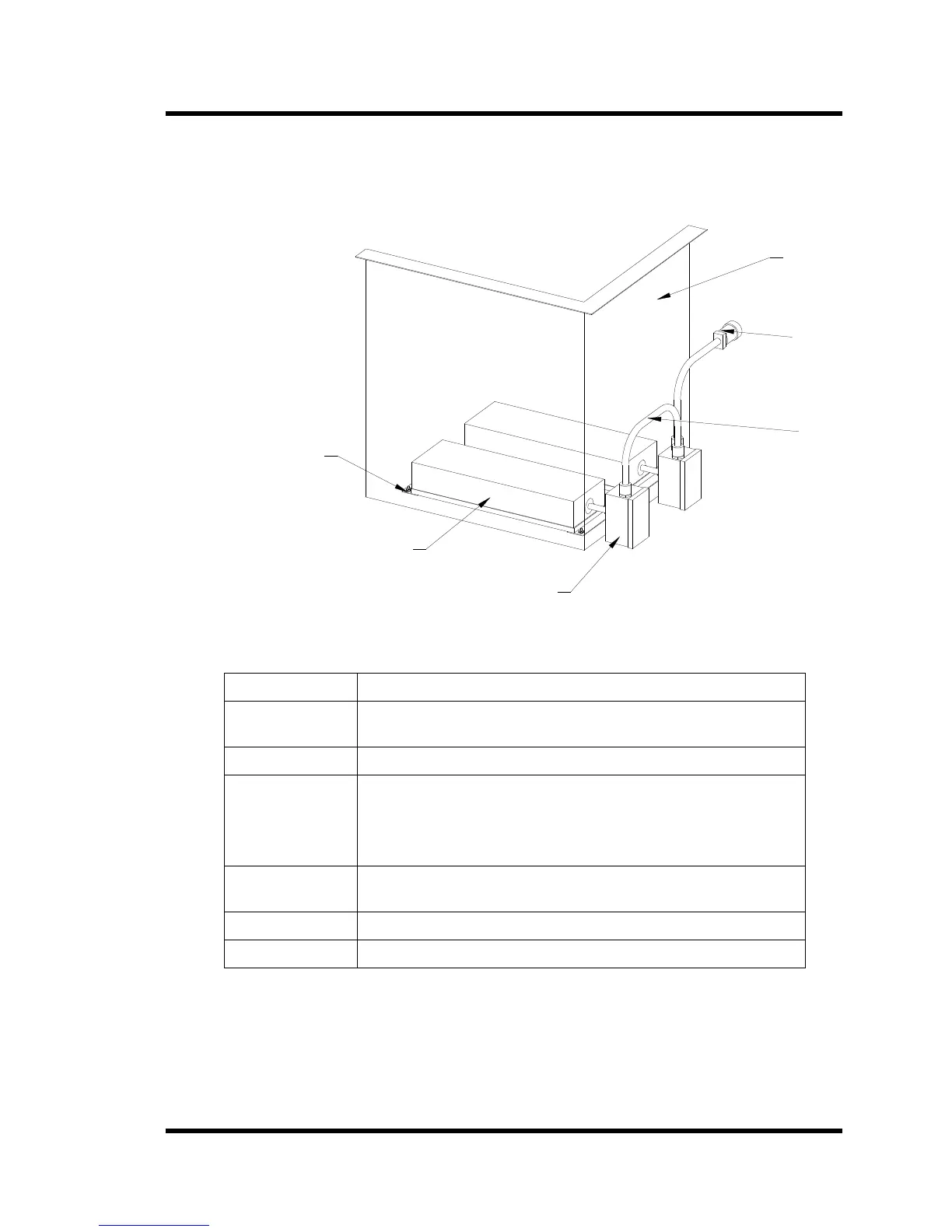

Figure 5-33 EB Immersible Transducer Junction Box Wiring
EB-type Immersible
Transducers
#10-32 Weldstuds
and Hardware
EB Style
Junction Boxes
RF Cable
Tank Wall
Jumper RF
Cable
Step Action
1 Route the RF cable and immersible transducer wire/cables to the
EB/SB style junction box.
2 Attach the all cables and wires to the EB/SB style junction box.
3 Refer to the appropriate wiring illustration and wiring diagram for a
1,2,3 or 4 immersible transducers.
Caution: Wire all immersible transducers in parallel (red-red;
black-black).
4 Follow the instructions in the section Wiring Procedures, located at
the front of the Immersible Installation Section.
5 Attach the ground wire to the ground lug.
6 When finished wiring, attach the EB/SB style junction box cover.
