Branson S83 - Mounting an FC-Type Immersible Transducer

S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 51
5.8.2 Mounting an FC-Type Immersible Transducer

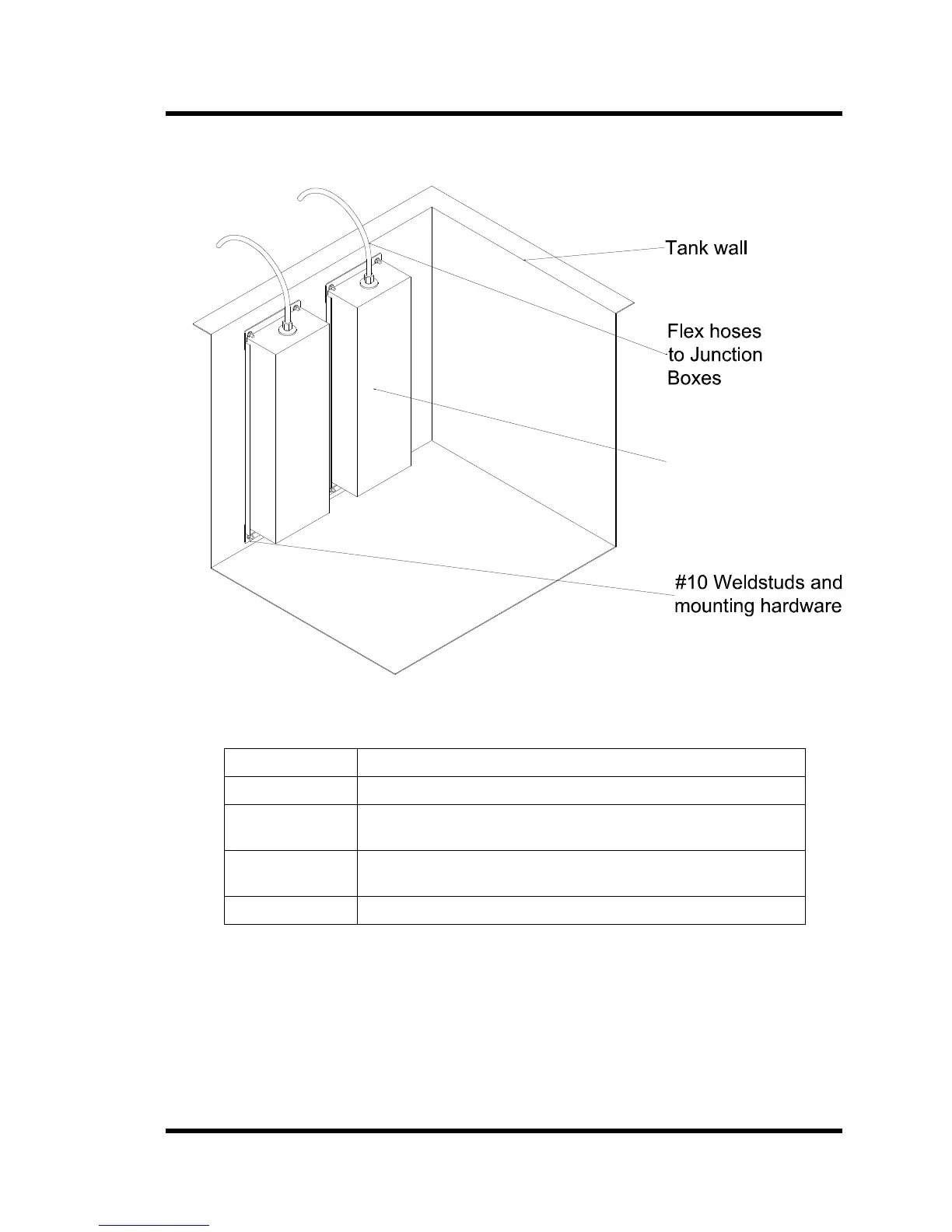

Figure 5-15 Mounting FC Type Immersibles
FC-type
Immersible
Transducer
To mount an FC-type immersible transducer directly on a tank wall, follow these steps:
Step Action
1 Select a location for the immersible transducer.
2 Measure, mark, and install four weld studs using the dimensions in
Figure 5-10.
3 Position the immersible transducers over the weld studs through the
flange holes.
4 Route the flexible cable to the corresponding junction box.
