7.4 Timer Option
The timer option consists of a mechanical timer that plugs into the OEM-I/O terminal in the back
of the generator. It includes an 8 foot cord so that it may be located in any convenient location
within 8 feet of the generator. It requires no additional power or connections.
To use the timer:
• Turn the generator power switch on the back of the generator to the on position
• Turn the knob to the desired setting
• Release the knob. The generator will turn on and operate for the set number of minutes then
turn off.

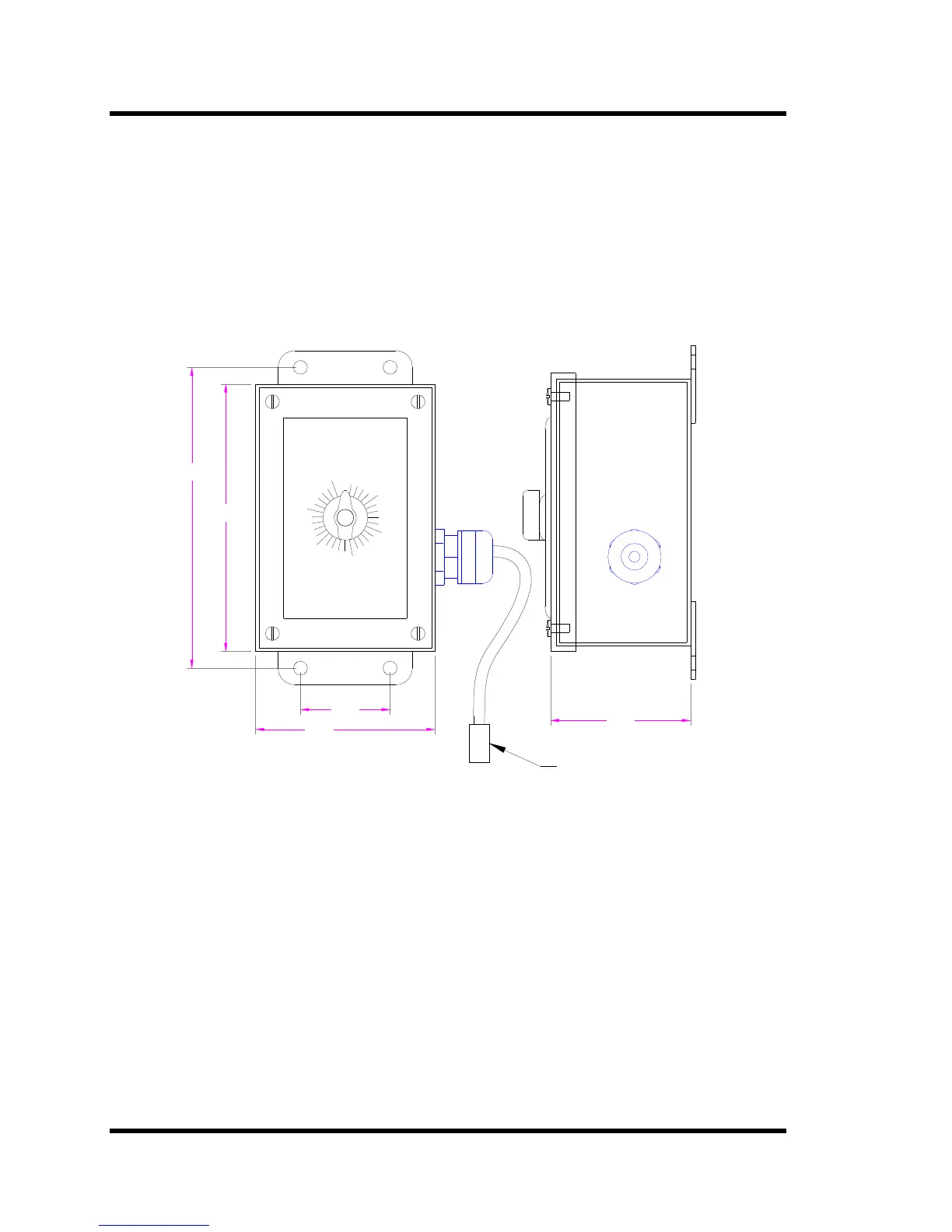

Figure 7-13 Timer Option
6.00 REF
6.75 REF
4.00
REF
2.00
REF
40
30
3.12
REF
10
50
60
20
8' OEM-I/O CABLE
