S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 59
5.9.3 Wiring CB Immersible Transducers

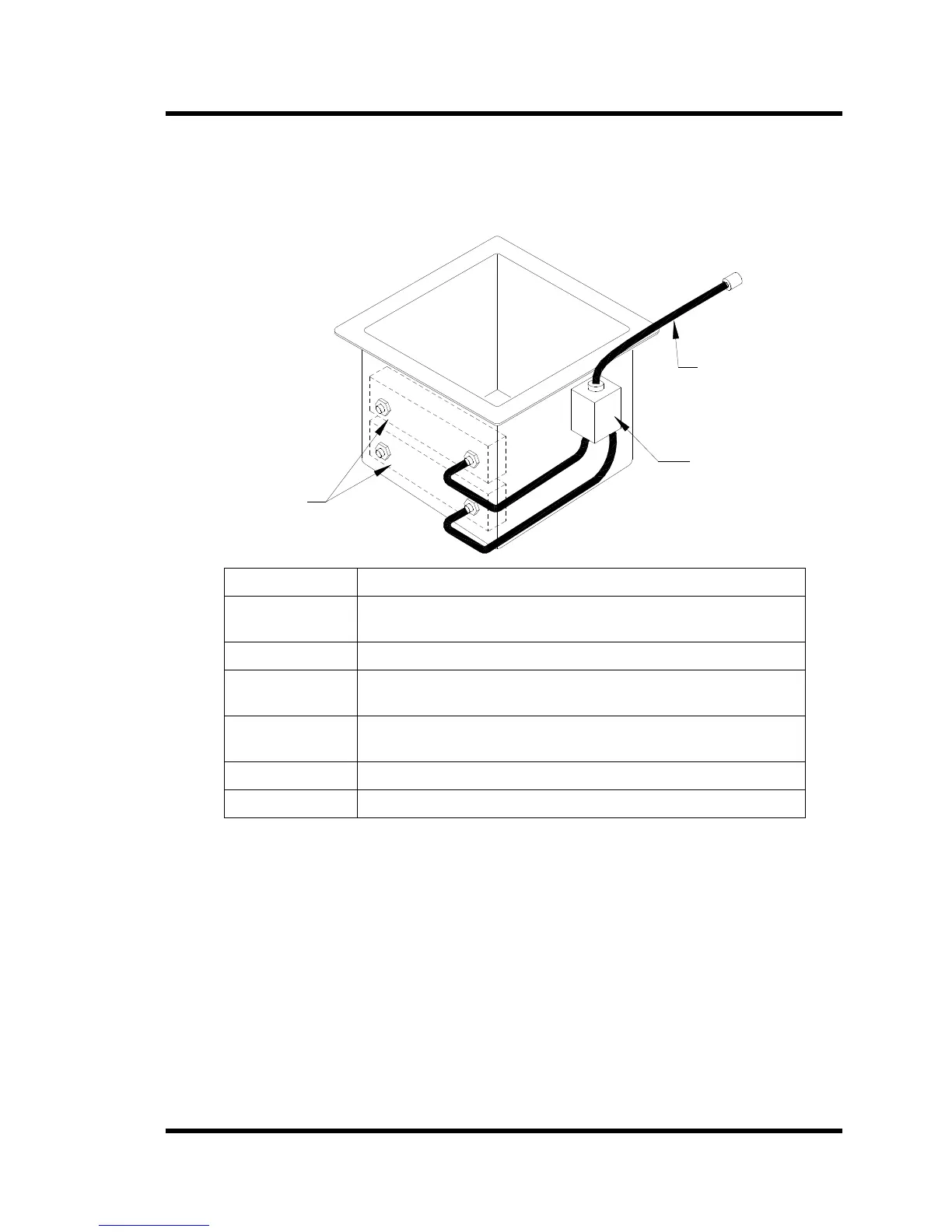

Figure 5-23 Mounting and Wiring CB Type Immersible Transducers
ultrasonic
RF cable to
power supply
Junction
box
transducers
immersible
CB−Type
Step Action
1 Route the RF cable and immersible transducer wire/cables to the
junction box.
2 Attach all cables and wires to the junction box.
3 Refer to the wiring illustration and wiring diagram for a 12-element,
a 24-element, a 36-element, or a 48-element connection.
4 Follow the instructions in the section Wiring Procedures, located at
the front of the Immersible Installation Section.
5 Attach the ground wire to the ground lug.
6 When finished wiring, attach the junction box cover.
