S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 39
12. DO use weld studs (10-32x1/2 316 stainless steel) when mounting immersible transducers on
a tank.
13. DO make sure to install immersible transducers, placed on opposing walls of a tank, so they
are no closer than 10 inches.
14. DO make sure to operate an ultrasonic tank or set of immersible transducers from the same
ultrasonic power supply.
15. DO install protective guards on side-mounted immersible transducers.
5.1.2 Don’ts –
1. DO NOT operate the ultrasonic power supply with the cover off.
2. DO NOT plug the ultrasonic power supply to AC source voltage until you finish installing the
ultrasonic tank or tank with immersible transducers.
3. DO NOT scratch or mar a radiating surface of an immersible transducer.
5.2 Elements – Immersible Transducers
Figure 5-1 contains an illustration of an immersible transducer with an array of
transducers. Ultrasonic tanks also contain transducer arrays. For example, a C1012-25-
12 model ultrasonic tank contains 12 transducers. For use in this manual, the individual
transducers in an immersible transducer or ultrasonic tank are defined as elements. So
throughout this manual, note that a 12-element immersible transducer contains 12
transducers, a 24-element transducer contains 24 transducers, and so on.

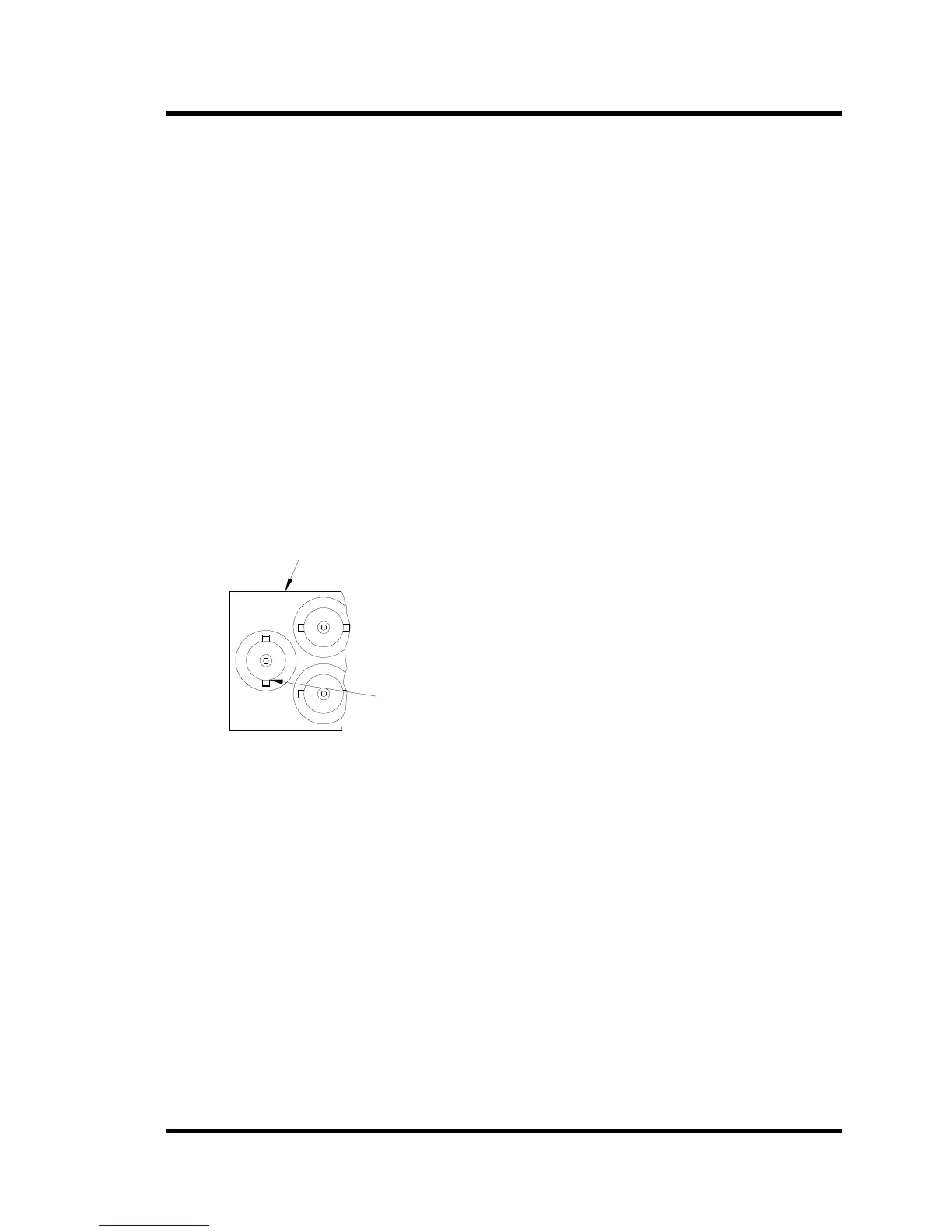

Figure 5-1 Transducer Elements
Immersible Transducer
Element
