Branson S83 - Wiring Two Immersible Transducers in Parallel

S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 71
5.11.5 Wiring Two Immersible Transducers in Parallel

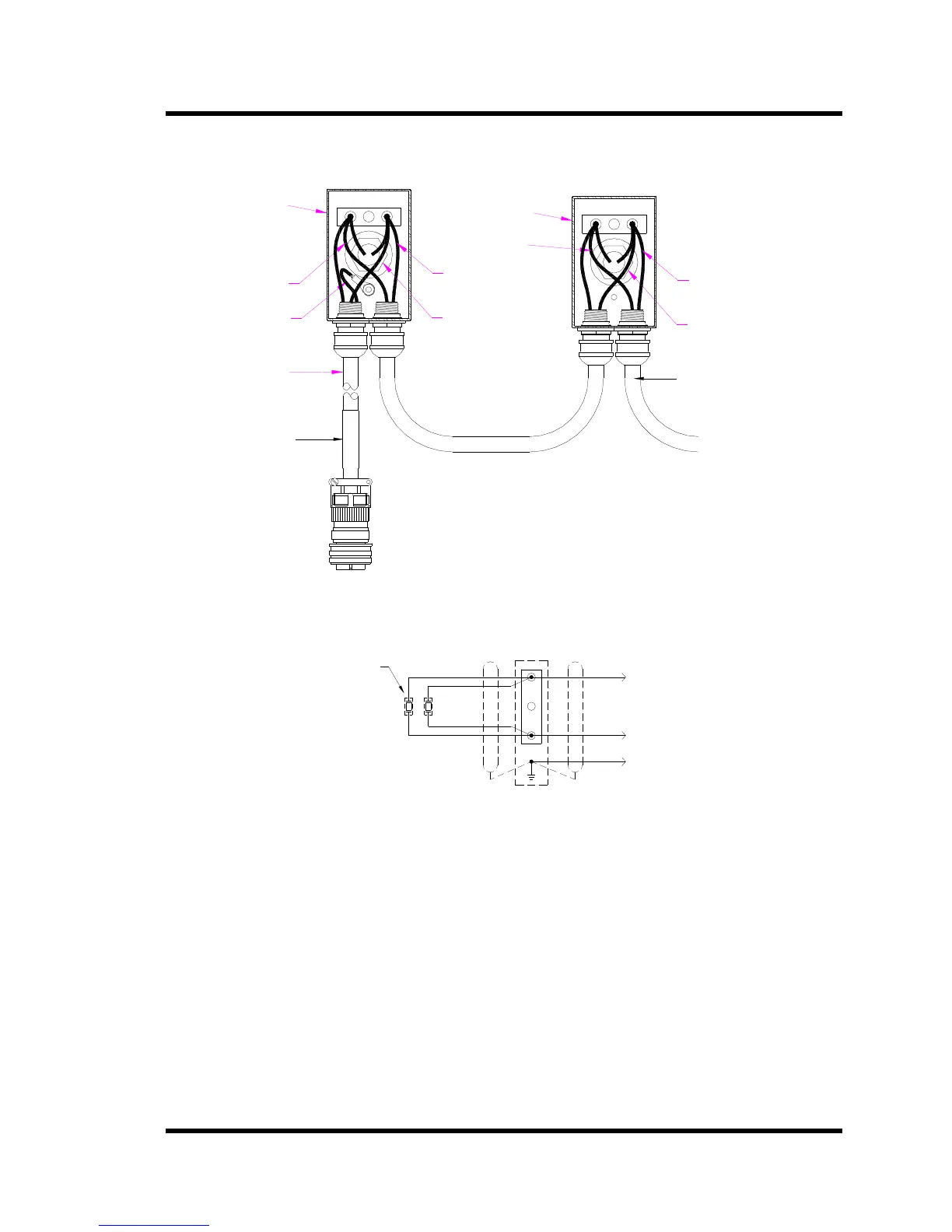

Figure 5-35 Wiring 2 or More EB/SB Type Immersible Transducers
ID Label
RF Cable
S8XXX − XX
J1
Wiring Diagram
−
Transducers
Immersible
+
(GRN/YEL)
(BLK)
J1
1
3
2
J1
−
+
(RED)
(RED)
(BLK)
(BLK)
J1
(RED)
1 2 3
RF+ (RED)
RF- (BLK)
Ground
(GRN/YEL)
Immersible
Transducer
Fitting
EB/SB Style
Junction
Box
Immersible
Transducer
Fitting
RF- (BLK)
SB/EB Box
RF Jumpers to
EB/SB Style
Junction
Box
RF+ (RED)
1 2 3
S8000 RF Cable
To Power Supply
