S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 50
5.8 FC-Type Immersible Transducer Installation
FC-type immersible transducers mount on the inside sidewall of a custom ultrasonic tank. An FC-
type immersible transducer requires a flexible, water-proof cable (FC) for connections because the
cable contacts the water in the tank.
5.8.1 FC Immersible Models and Dimensions
Table 6 FC Transducer Models
Model Chrome Bright Annealed
FC610-25-6 101-910-672 101-910-691
FC618-25-12 101-910-674 101-910-689
FC610-40-6 101-910-673 101-910-690
FC618-40-12 101-910-675 101-910-688

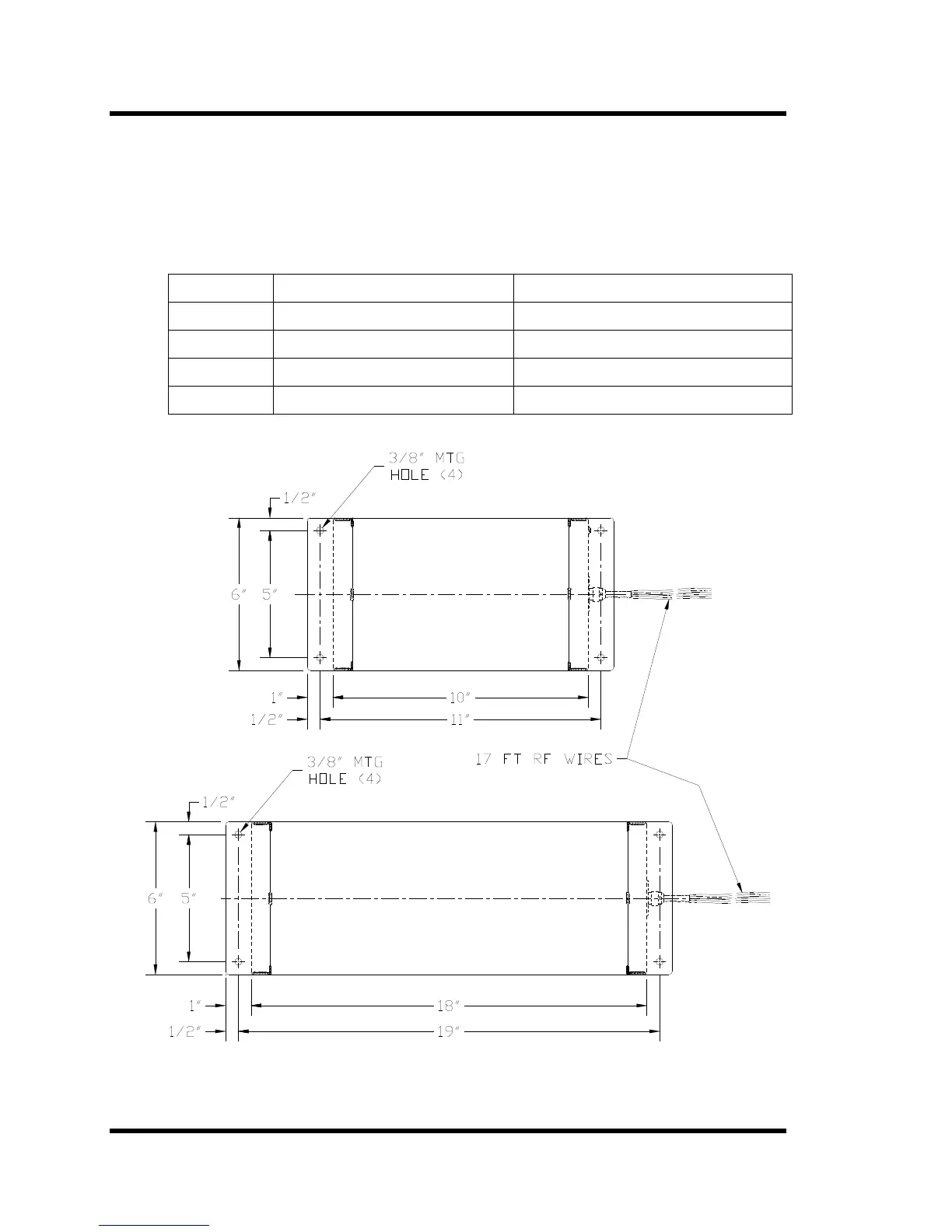

Figure 5-14 FC610/FC618 Mounting Dimensions
DANBURY CT. U.S.A.
CORPORATION
BRANSON ULTRASONICS
SERIAL XX − XXXX − XX
MODEL FC610 − XX − 6
MODEL FC618−XX−12
SERIAL XX − XXXX − XX
BRANSON ULTRASONICS
CORPORATION
DANBURY CT. U.S.A.
