Branson S83 - CB-Type Immersible Transducers - 12-Element; Figure 5-24 Wiring 1 CB Type Immersible Transducer

S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 60
5.9.4 CB-Type Immersible Transducers – 12-Element

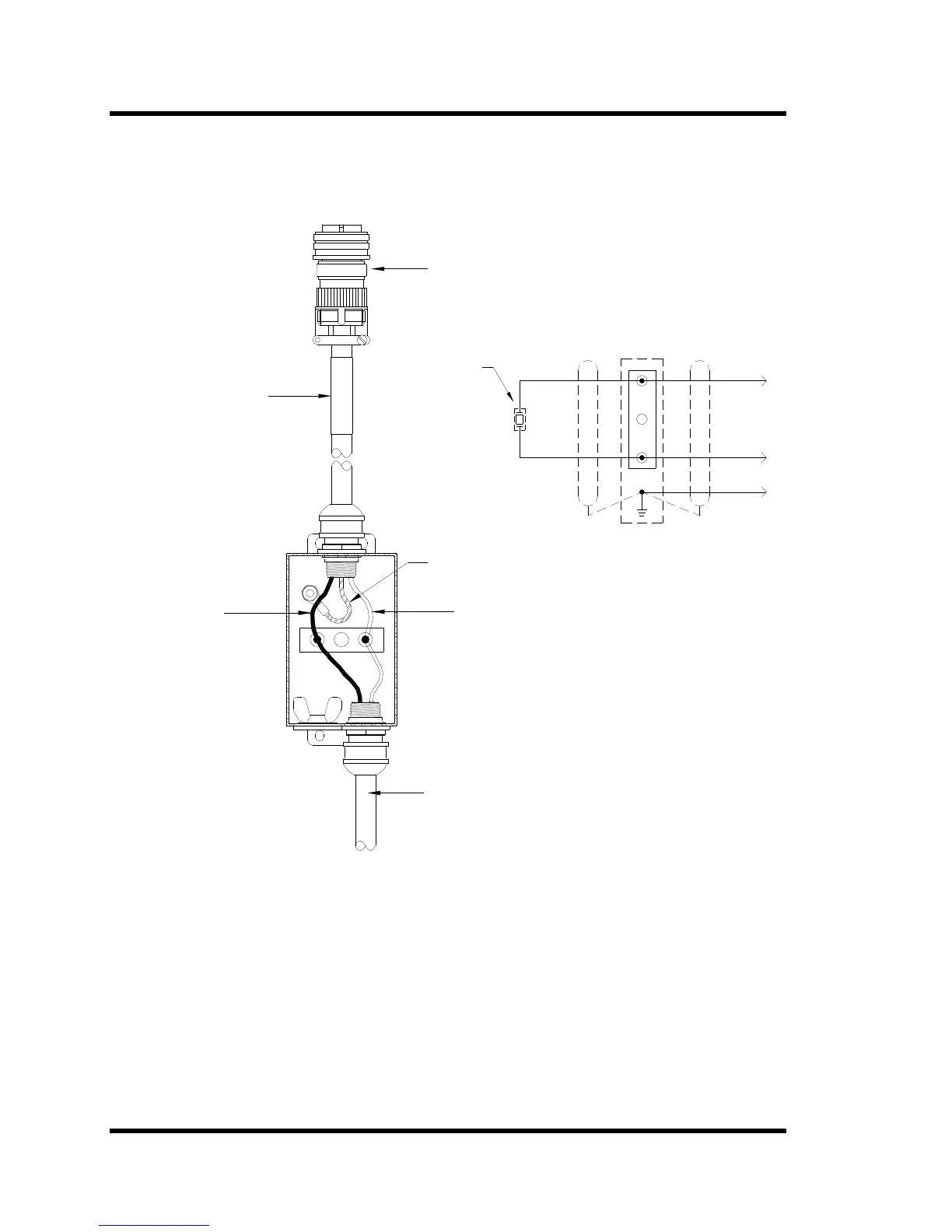

Figure 5-24 Wiring 1 CB Type Immersible Transducer
ID Label
RF Cable
S8XXX − XX
J1
Assembly
S8000 RF Cable
Wiring Diagram
Transducers
Immersible
(GRN/YEL)
(BLK)
J1
1
3
2
J1
−
+
(RED)
(BLK)
RF Cable from
CB type Immersible
RF+ (RED)
RF− (BLK)
GND (GRN/YEL)
J1
(RED)
1 2 3
Note: After installing, test grounds and continuity according to local codes.
