S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 52
5.8.3 Mounting FC Junction Boxes
Figure 5-12 contains an illustration shows two FC-type immersible transducers mounted on a
stainless steel rack and connected to junction boxes.

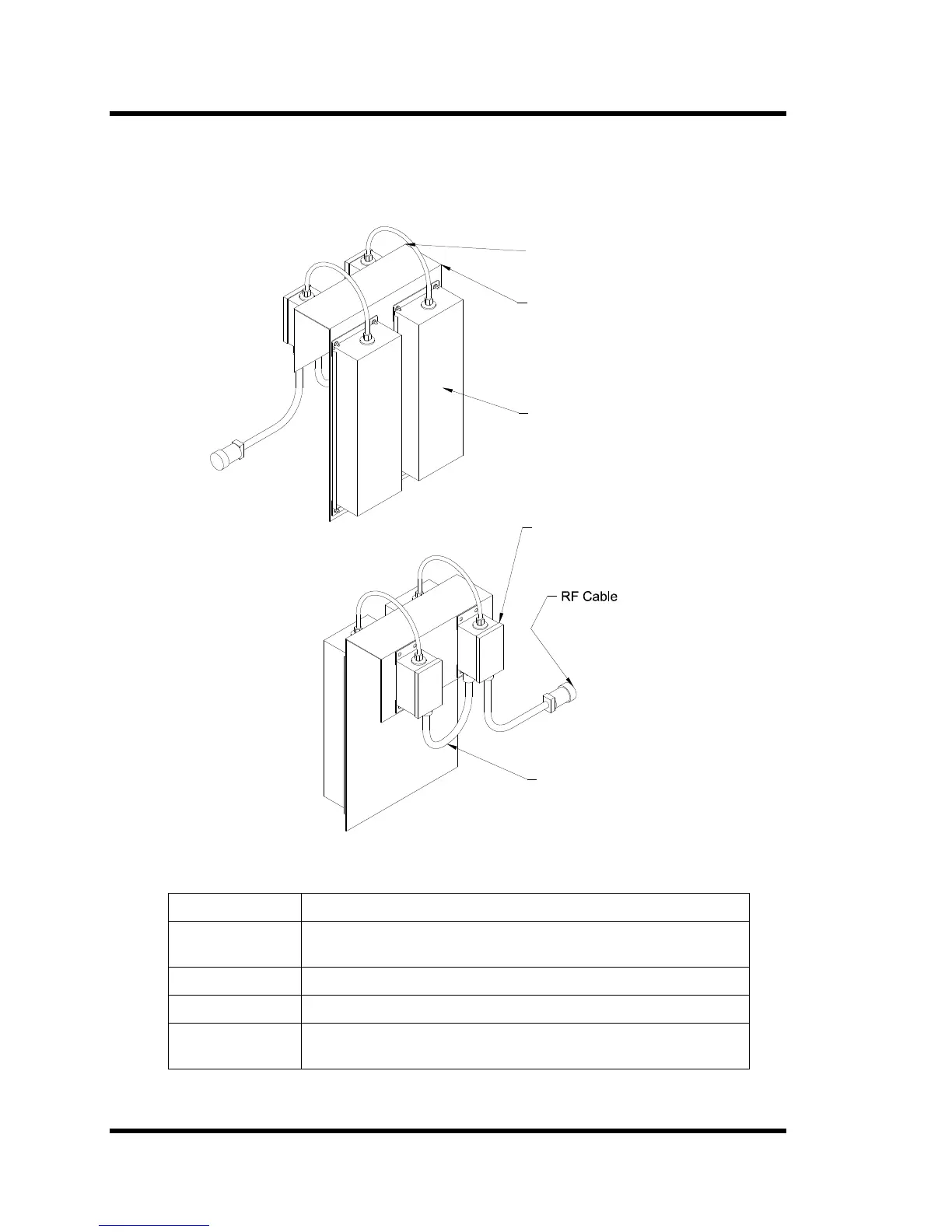

Figure 5-16 FC Type Immersible Transducer Junction Box Mounting
Rack
FC-type
immersible
transducer
Flanged Junction
Box
Flexible Cable
4 inch minimum
radius
Jumper Cable
Note: You can also wire the two immersible transducers into one junction box. (Refer to
Configuration Diagrams).
Step Action
1 Select a location for the immersible transducer. (Refer to
Installation Do’s and Don’ts).
2 Measure and mark the four places for installing weld studs.
3 Mount the immersible transducer to the tank or rack.
4 Route the flexible cable to the corresponding junction box. Note:
The min. bend radius of the flexible cable is 4 inches in diameter.
