S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 42

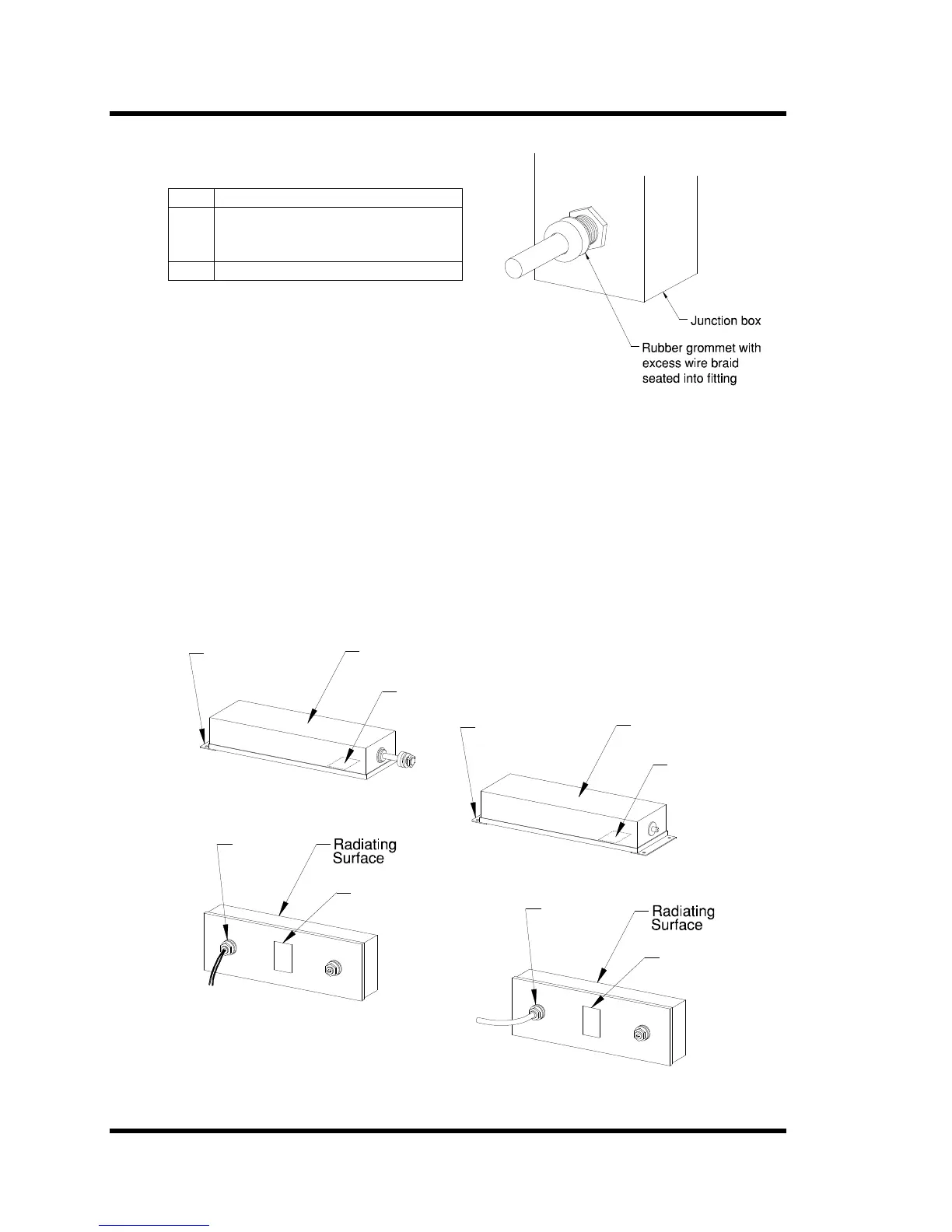

Figure 5-6 Task 4
Preparing an RF Cable (Task 4)
Step Action
1 Bring cap, washer, and rubber
grommet together; secure to junction
box fitting.
2 Tighten all parts securely.
5.4 Immersible Installation
Immersible transducers are compact, hermetically sealed modular components containing either
six or twelve elements (Elements operate at one of two frequencies (25 kHz or 40 kHz). Use 40
kHz transducers with 80, 120 and 170 kHz generators.
Installation involves mounting the immersible transducers to the tank walls or on a fixture on the
bottom, then wiring them together in parallel using junction boxes.
5.4.1 Immersible Types
Immersible transducers are available in four types as follows:
Figure 5-7 Mounting Configurations
ID Engraving
(bottom)
Type EB − End Bulkhead
Radiating
Surface
flange
Mounting
Type FC − Flexible Cable
Mounting
flange
(bottom)
ID Engraving
Surface
Radiating
Type SB − Short Bulkhead
Mounting
fittings
ID Engraving
Type CB − Cable Bulkhead
(2 places)
Mounting
fitting
ID Engraving
