S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 64
5.10 Mounting and Wiring SB-Type Immersible Transducers
5.10.1 SB Type Immersible Transducer Models and Dimensions
SB type immersible transducers mount on an inside wall of a custom ultrasonic tank.
Table 8 SB Type Immersibles
Model Chrome Bright Annealed
SB610-25-6 101-910-676 101-910-695
SB618-25-12 101-910-678 101-910-693
SB610-40-6 101-910-677 101-910-694
SB618-40-12 101-910-679 101-910-692

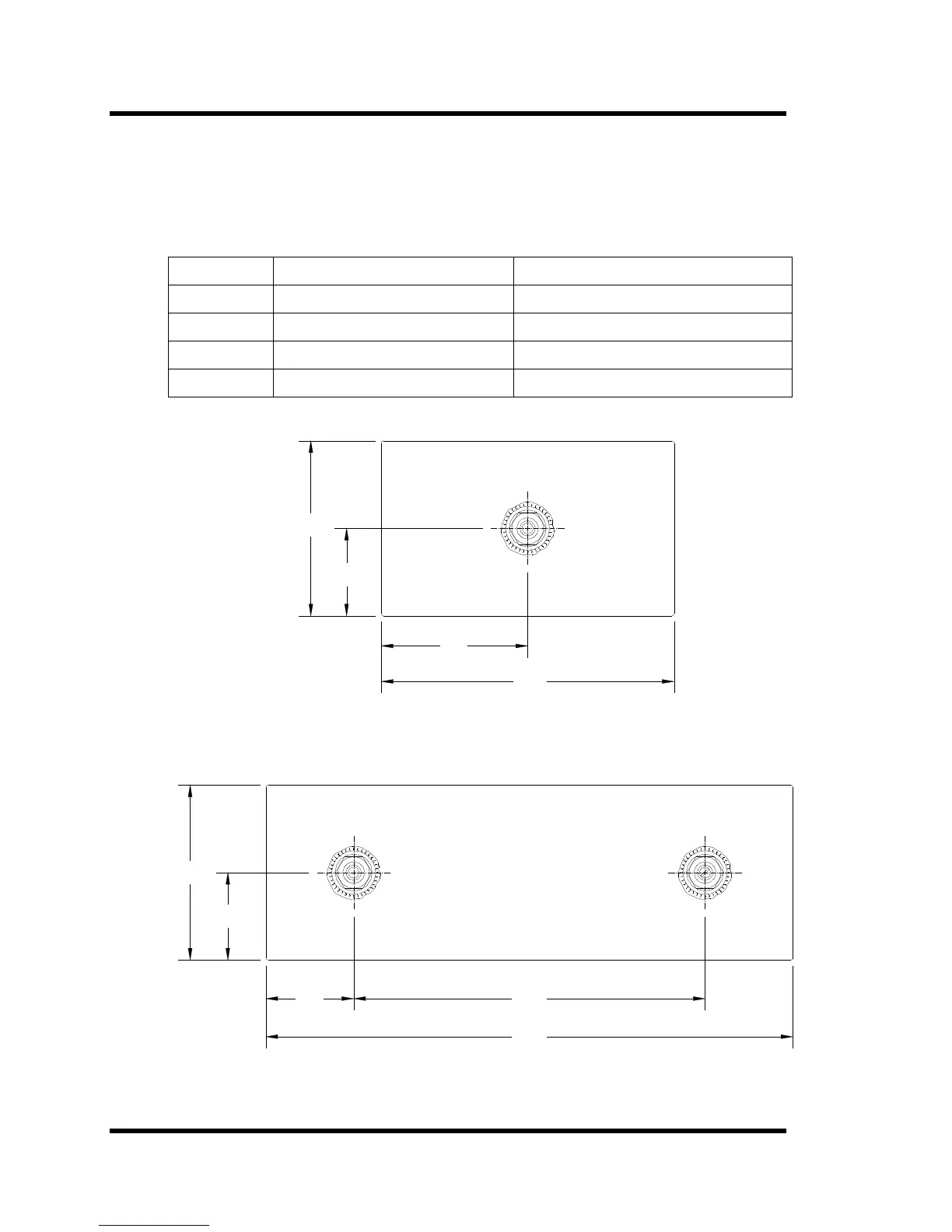

Figure 5-28 SB Type Immersible Dimensions
DANBURY CT. U.S.A.
CORPORATION
BRANSON ULTRASONICS
SERIAL XX − XXXX − XX
MODEL SB610 − XX − 6
DANBURY CT. U.S.A.
BRANSON ULTRASONICS
CORPORATION
SERIAL XX − XXXX − XX
MODEL SB618− XX −12
10"
6"
5"
3"
3" 12"
18"
3"
6"
