S83/85 Ultrasonic Generator System Installation
A40-064 Rev 0 Page 41
5.3.2 Preparing the RF Cable
Preparing the RF cable involves a series of tasks that you must do to install one end of the RF
cable into a fitting of a junction box.

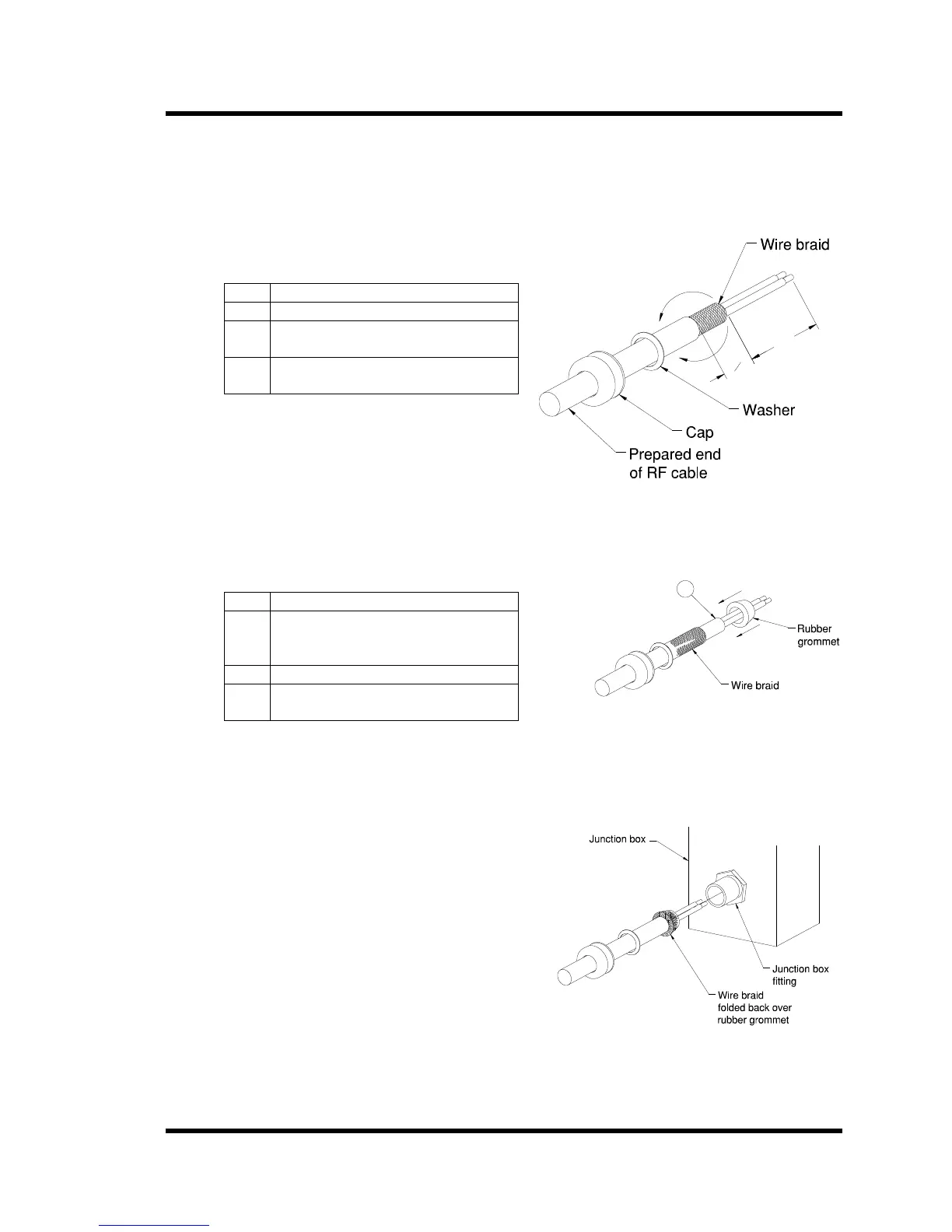

Figure 5-3 Task 1
Preparing an RF Cable (Task 1)
Step Action
1 Strip end of RF cable 3 inches.
2 Remove outer insulation 3 inches
from the end, exposing wire braid.
3 Slip cap and washer over RF cable
as shown.
Figure 5-4 Task 2
Preparing an RF Cable (Task 2)
Step Action
1 Prepare exposed wire braid, using a
common awl, so you can fold the
wire braid back.
2 Cut away filler material.
3 Slip rubber grommet over RF cable
to point A, as shown.
Figure 5-5 Task 3
Preparing an RF Cable (Task 3)
Fold excess wire braid over the rubber
grommet.
1
1
4
"
3"
A
