S83/85 Ultrasonic Generator Controls
A40-064 Rev 0 Page 20
2.4 Back Panel

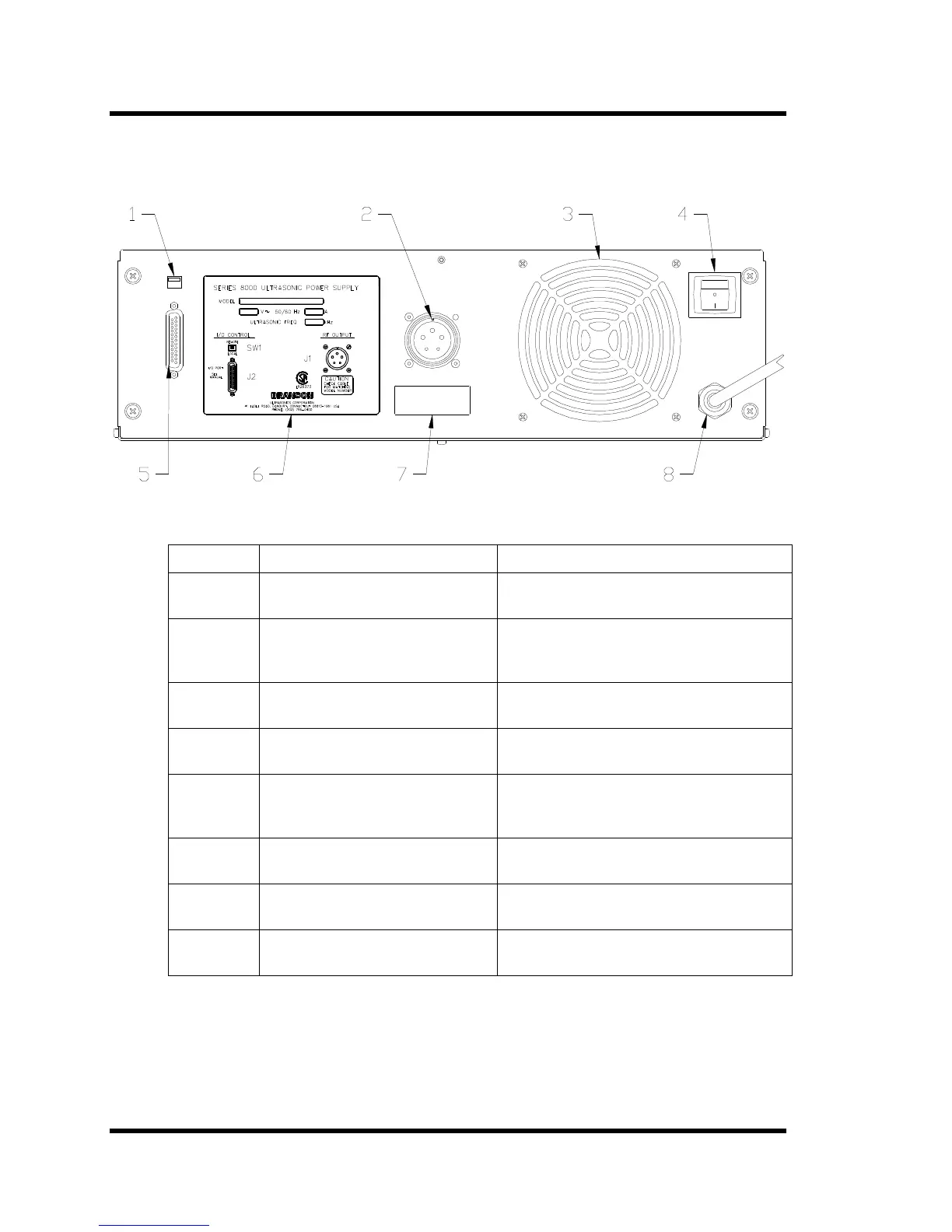

Figure 2-6 S8500 Back Panel
Item No. Description Function
1 Local/Remote switch SW1 Allows switching between local and remote
operation.
2 RF Connector For connecting the RF cable to the
ultrasonic power supply from a tank or
immersible transducers.
3 Fan Cools the ultrasonic power supply by
exhausting hot air.
4 Main On/Off Switch Switches on AC power to the ultrasonic
power supply.
5 I/O 25-pin D-shell connector (I/O
option only).
Provides connection of cable from
ultrasonic power supply to external
controller.
6 Product Label Displays product information, such as
power level, frequency, and serial no.
7 Serial number tag Displays serial number of the ultrasonic
power supply.
8 Line Cord Connects ultrasonic power supply to AC
power.
