6. OVERVIEW OF GEARS
<Layout view>

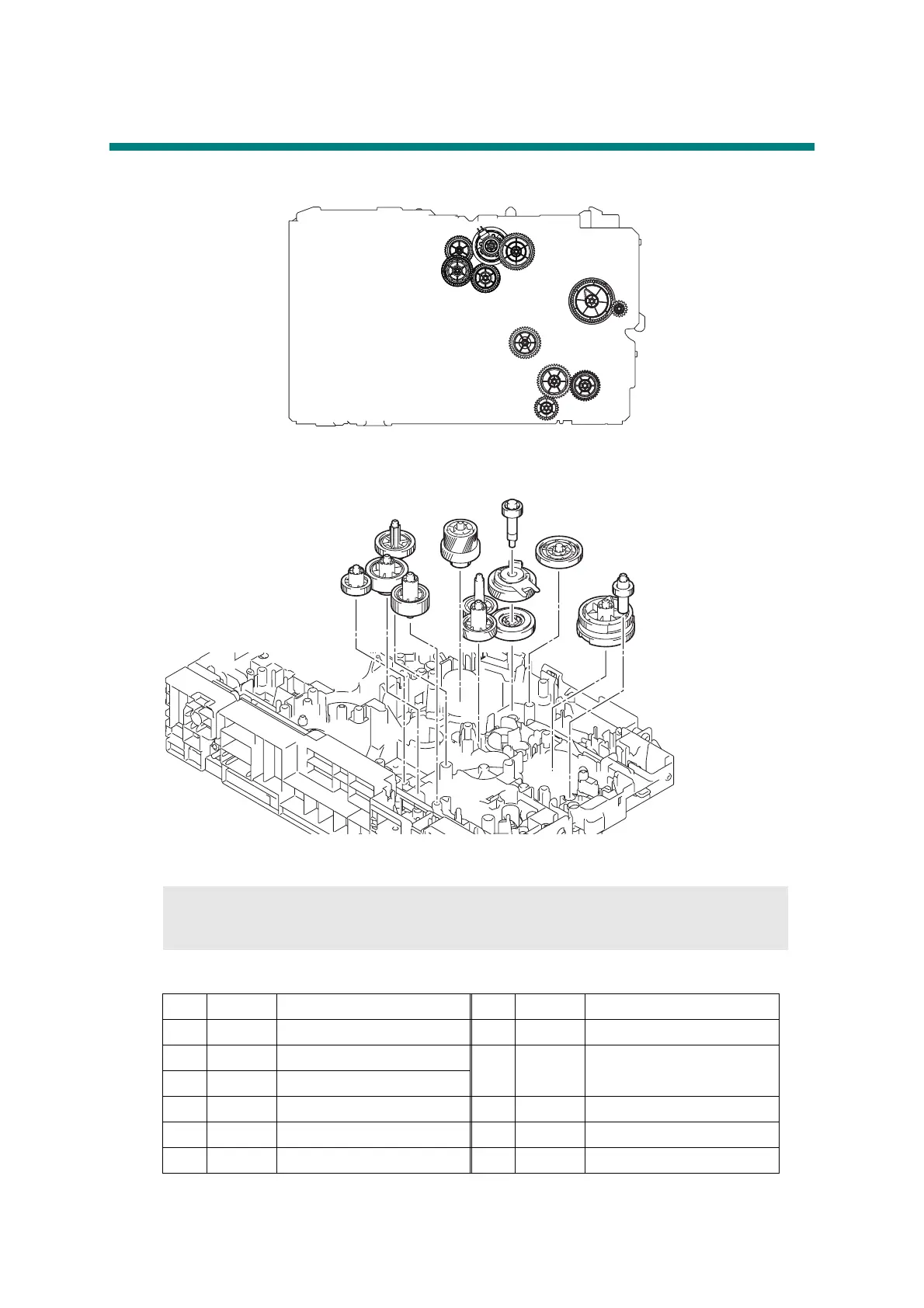

Fig. 3-9
<Development view>
Fig. 3-10
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
1 LY4409 Develop one way clutch 53 8 LY4336 MP drive gear 18
2 LY4411 Develop low idle gear 41 9 LY4407 Develop shaft gear 22
3 LY4410 Develop gear 50R/42R/19
10 LY4412
Paper feed drive gear
39/17
4 LY4406 Develop high idle gear 39L
5 LY4408 Develop clutch 51R 11 LY4403 T1 idle gear 37
6 LY4405 Develop idle gear 53 12 LY4398 LT drive gear 29
7 LY4394 MP sector gear 53/57 13 LY4404 T1 gear 19/42
66
77
10
10
10
44
3
3
22
1
1
55
99
88
1111
11
1313
13
1212
12
8
11
13
12
8
8
8
7
7
7
6
6
6
9
9
9
3
3
3
10
10
10
13
13
13
12
12
12
11
11
11
2
2
2
4
4
4
5
5
5
1
1
1

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
