Brother DCP-8152DN User Manual

3-114
Confidential
9.45 Registration front/rear sensor PCB ASSY / Registration front actuator /
Registration rear actuator / Registration actuator spring
(1) Release the low-voltage power supply harness from the securing fixtures.
(2) Release the two hooks, and remove the paper feed frame from the feed chute.

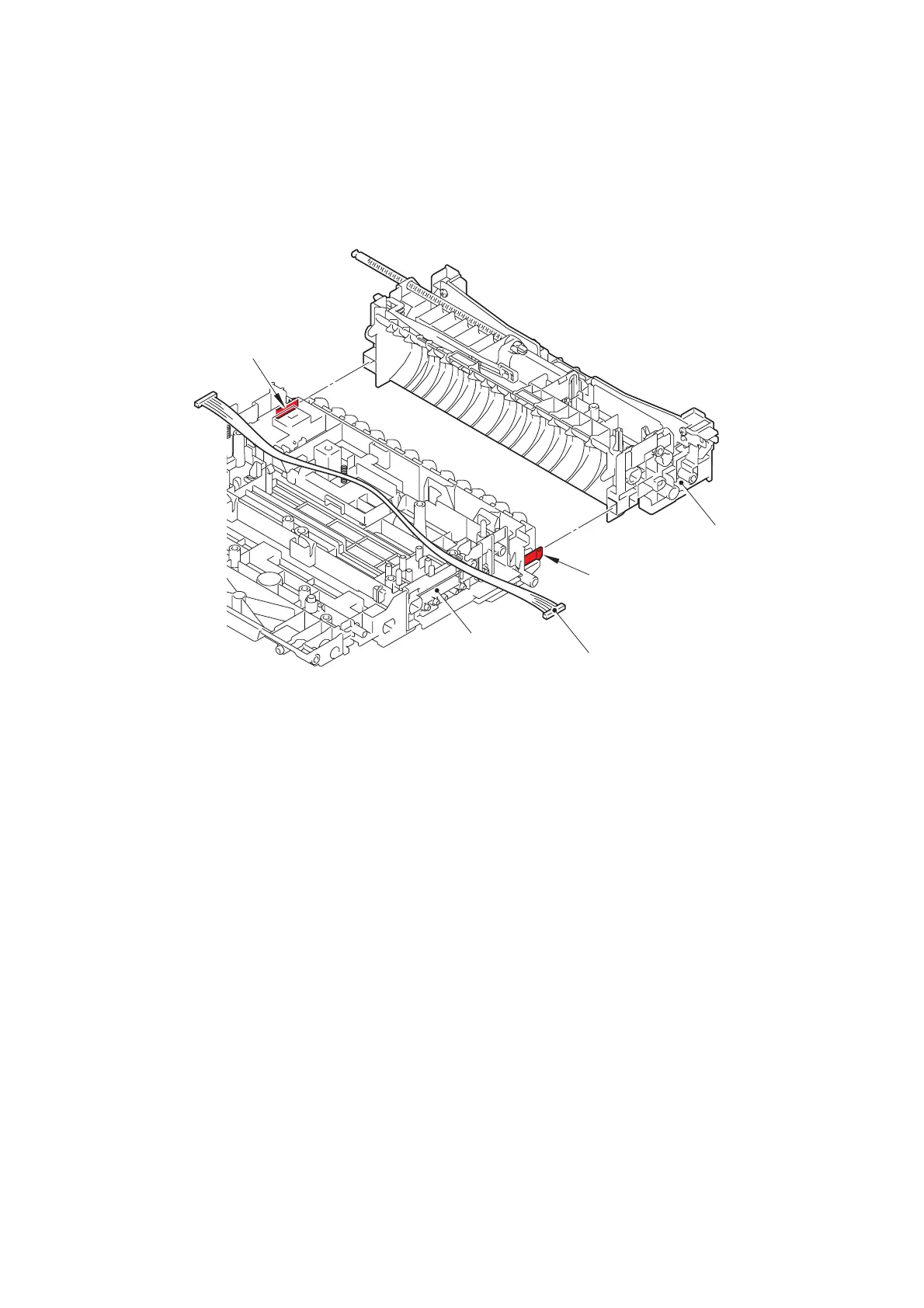

Fig. 3-143
Harness routing: Refer to “7.Low-voltage power supply PCB ASSY”.
Paper feed frame
Hook
Low-voltage power supply harness
Feed chute
Hook

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
